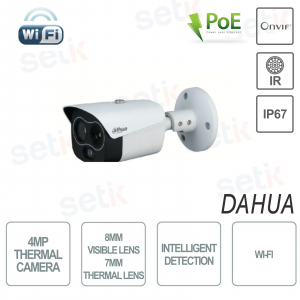

Dahua Bullet Thermal Camera Wi-Fi 4MP Visible lens 8mm Thermal lens 7mm Temperature detection IR30 Audio IP67
Dahua outdoor thermal bullet camera EUREKA Series TPC-BF1241-B7F8-DW-WIFI-S2 , Dual-Lens , 7mm thermal optics + 8mm visible optics , 4MP CMOS sensor , 30m IR illuminator , 1x input + 1x Audio output , 1x alarm input + 1x alarm output , BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night, RS-485, 1 microSD-Card slot, Wi-Fi, ROI, Intelligent functions , smoke detection, Alarm fire , vehicle and people recognition, intrusion detection. Onvif and PoE, IP67
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
HYBRID THERMAL BULLET CAMERA WITH DOUBLE LENS, VIDEO ANALYSIS AND FIRE ALARM - WIFI - EUREKA SERIES
Dahua TPC-BF1241-B7F8-DW-WIFI-S2 bullet outdoor thermal camera
1x input + 1x Audio output , 1x input + 1x Alarm output , RS-485, 1 microSD-Card slot up to 256Gb(not included), ROI, BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night
smart features , fire detection function , vehicle and person recognition, intrusion detection - Wi-Fi, Onvif and PoE, IP67 - 24 month warranty
| THERMAL DETECTION |
|---|
  |
Product details
- Hybrid Thermal Bullet Camera - Dahua
- Dual-Lens technology, dual optics: thermal 7mm / visible 8mm
- 4MP CMOS sensor
- Resolution 256 x 192 (thermal optics) / 2336×1752 ( visible optics )
- Visual spectrum from 8 to 14?m
- Integrated Video Analysis (Line Crossing, Intrusion, Object Detection (People / Vehicle), Fire Detection & Smoke Detection alarm.etc.)
- Temperature detection
- People detection
- Mobile vehicle detection
- Sensitivity 50mK
- ROI, Motion Detection, BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night
- IR illuminator up to 30 meters
- 1 input and 1 alarm output
- 1 audio input and 1 audio output
- Wifi
- 1 microSD-Card slot up to 256GB
- PoE protocol
- Power supply NOT included
- Dimensions 205.5 mm × 90.4 mm × 90.1 mm (8.09'' × 3.56'' × 3.55'') (L × W × H)
- 24 months warranty
Data sheet
| model | TPC-BF1241-B7F8-DW-WIFI-S2 |
| thermal chamber | |
| SensorType | Vanadium Oxide Uncooled FPA |
| Effective Pixels | 256(H) x 192(V) |
| Pixel Size | 12um |
| Thermal Sensitivity | < 40mK (@f/1.0, 25Hz, 300K) |
| Spectral Range | 8~14um |
| Focus Length | 7mm |
|
Field Of View |
H: 24°; V: 18° |
| Close focus distance | 1m (3.28ft) |
| Openings | F1.0 |
| Digital Detail Enhancement (DDE) |
Yes |
| digital zoom | 16× |
| AGC extension | Car; manual |
| Noise reduction | 2D NR; 3D NO |
| Image Flip | 90°; 180°; 270° |
| Color Palettes | 18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.) |
| Fusion Mode | 3 (Warm color; cool color; Iron red) |
| visible camera | |
| Image Sensor | 1/2.7'' CMOS 4MP |
| Maximum resolution | 2336×1752 |
| Pixels | 4MP |
| Electronic Shutter Speed | 1/30000s–1s |
|
Minimum Illumination |
Color: 0.05Lux Black & White: 0.005Lux 0 Lux (IR on) |
|
IR Distance |
≥30m (98.43ft) |
|
IR On/Off Control |
Auto/Manual |
| Focus Length | 8mm |
|
Max Openings |
F2 |
|
Field Of View |
H: 33.4°; V: 25° |
|
Focus controls |
Fixed |
| Close Focus Distance | 2.5m (8.2ft) |
| Day/Night | Car (ICR); Color and B/W |
| BLC extension | Yes |
| wdr extension | dwdr extension |
| HLC extension | Yes |
| White Balance | Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural |
| AGC extension | Car; manual |
| Noise reduction | 2D NR; 3D NO |
| S/N Ratio | ≥55dB |
| Region of Interest (RoI) | Yes |
| Image Flip | 90°; 180°; 270° |
| Exposure Compensation | Yes |
| Intelligence | |
| General Intelligence | Tripwire, Intrusion |
| advanced intelligence | Heat Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection |
|
Temperature Measurement |
|
| Temperature Range | Low Temperature Mode: –20 °C to +150 °C (–4 °F to +302 °F) High Temperature Mode: 0°C to +550°C (+32°F to +1022°F) |
| Temperature Accuracy | Max (± 2 °C, ± 2%) Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F) |
| Temperature Mode | Spots: 12 lines: 12 Area: 12 Support 12 rules simultaneously |
| Video and Audio | |
| Video compression | H.265/H.264M/H.264H/H.264B/MJEPG |
| Resolution | Thermal: Main Stream: 1280×960 (1.3M); XVGA (1024×768); VGA (640×480); 256×192; 1280×960 (by default) Sub Streams: VGA (640×480); 256×192; 256 × 192 (by default) Visuals: Main Stream: 2336×1752; 1080p (1920×1080); 720p (1280×720); D1 (704×576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704×576); CIF (352×288); 352 × 288 (by default) |
| Frame Rates | Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default View 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default |
| Audio compression | G.711a; G.711mu; pcm extension |
| Network | |
| protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; smtp; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP extension |
| Edge Storage | Micro SD card (256G) |
| Interoperability | ONVIF®; CGI |
| Browsers | IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 42 and the earlier |
| User/Host | 10 |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Certification | |
| Certifications | CE: EN55032:2015; EN61000-3-2:2014 FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014 |
| Port | |
| Network | 1 × RJ-45 (10/100Base-T) |
| Audio inputs | 1 |
| Audio Outputs | 1 |
| Alarm Inputs | 1 |
| Alarm Output | 1 |
| RS-485 | 1 |
| Wi-Fi Optional | Standard No.: 802.11 Frequency: 2.4GHz Transmission rate: 150Mbps Transmission distance: 150m (no shield, no disturbance) |
| Power | |
| Power Supply | 12VDC, 1.2A (±20%); PoE |
| power consumption | Basic: < 6.5W (LED off) Max: < 13W (LED on, heater on) |
|
environment |
|
| Operating Temperature | –30°C to +60°C (–22°F to +140°F) |
| Storage Temperatures | –30°C to +70°C (–22°F to ?158°F) |
| Operating Humidity | ? 95% |
| Protection |
IP67; anti-surge 6 kV; anti-electrostatic 6 kV (touched by objects); anti-electrostatic 8 kV (air) |
| structure | |
| Product Dimensions | 205.5mm × 90.4mm × 90.1mm (8.09'' × 3.56'' × 3.55'') (L × W × H) |
| Packaging Dimensions | 279 mm × 187 mm × 138 mm (10.98'' × 7.36'' × 5.43'') (L × W × H) |
| Net Weight | 0.9kg (1.98lbs) |
| Gross Weight | 1.3kg (2.87lbs) |
Further details
 |
Thermal camera... what is it? and how to choose it? |
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 |
This camera is wireless wifi so you can connect it without the presence of the cable. |
  |
This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm
|
  |
Dual Lens Technology! - People detection up to 292m - Detection of mobile vehicles up to 778m  |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
|
|
This camera features SMART DETECTION - Intrusion - Classification Persons / Vehicles - Smoke detection - Detection of hot and cold areas - Fire detection & alarm
|
  |
This camera can detect the presence of fire and detect its temperature.
|
  |
This camera has 1 RS-485 port |
 |
This camera has 1 input and 1 alarm output |
 |
This camera has 1 inputs + 1 Audio Output |
 |
IP67: Guarantees protection from dust and water jets (rain) |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 |
D-WDR (Digital Wide Dynamic Range) D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
Possibility to insert Micro SD up to a maximum of 256Gb |
 |
This product is covered by a 24 month guarantee. |
