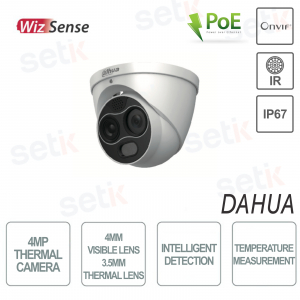

Dahua Eyeball WizSense Thermal Camera 4MP Visible optics 4mm Thermal optics 3.5mm Temperature detection IR30 Alarm IP67

Dahua Eyeball WizSense Thermal Camera 4MP Visible optics 4mm Thermal optics 3.5mm Temperature detection IR30 Alarm IP67
-57%

Eyeball WizSense Dahua external thermal camera EUREKA Series TPC- DF1241 -TB3F4-DW-S2 , Dual-Lens , 3.5mm thermal lens + 4mm visible lens , 4MP CMOS sensor , 30m IR illuminator , 1x input + 1x Audio output , 1x alarm input + 1x alarm output , BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night, RS-485, 1 microSD-Card slot, ROI, intelligent functions , smoke detection, fire alarm , vehicle recognition and people, intrusion detection, temperature detection . Onvif and PoE, IP67



Reference: TPC-DF1241-TB3F4-DW-S2

Brand: Dahua

FIND INSTALLER

€879.75

€2,045.94 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


WIZSENSE HYBRID THERMAL EYEBALL CAMERA WITH DOUBLE LENS, VIDEO ANALYSIS AND FIRE ALARM - EUREKA SERIES

Made by Setik
Eyeball WizSense Dahua TPC-DF1241-TB3F4-DW-S2 outdoor thermal camera
Dual-Lens , 3.5mm thermal lens + 4mm visible lens, 4MP CMOS sensor , 30m IR illuminator
1x input + 1x Audio output , 1x input + 1x Alarm output , RS-485, 1 microSD-Card slot up to 256Gb(not included), ROI, BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night
smart features , fire detection function , vehicle and people recognition, intrusion detection, temperature detection - Onvif and PoE, IP67 - 24 month warranty
THERMAL DETECTION


Product details

Telecamera Videosorveglianza IP Dome Motorizzata Termica Dual-Lens 1080P
  • WizSense Motorized Thermal Hybrid Speed Eyeball Camera - Dahua
  • Dual-Lens technology, dual optics: thermal 3.5mm / visible 4mm
  • 4MP CMOS sensor
  • Resolution 256 x 192 (thermal optics) / 2336×1752 ( visible optics )
  • Visual spectrum from 8 to 14?m
  • Integrated Video Analysis (Line Crossing, Intrusion, Object Detection (People / Vehicle), Fire Detection & Smoke Detection alarm.etc.)
  • Temperature detection
  • People detection
  • Mobile vehicle detection
  • Sensitivity 50mK
  • ROI, Motion Detection, BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night
  • IR illuminator up to 30 meters
  • 1 input and 1 alarm output
  • 1 audio input and 1 audio output
  • 1 microSD-Card slot up to 256GB
  • PoE protocol
  • Power supply NOT included
  • Dimensions 122mm × 122mm × 112mm (4.8" × 4.8" × 4.41")
  • 24 months warranty

Data sheet

model TPC-DF1241-TB3F4-DW-S2
thermal chamber
SensorType Vanadium Oxide Uncooled FPA
Effective Pixels 256(H) x 192(V)
Pixel Size 12um
Thermal Sensitivity < 50mK (@f/1.0, 25Hz, 300K)
Spectral Range 8~14um
Focus Length 3.5mm

Field Of View

H: 50.6°; V: 37.8°
Close focus distance 0.5m (1.64ft)
Openings F1.0
Digital Detail
Enhancement (DDE)
Yes
digital zoom 16×
AGC extension Car; manual
Noise reduction 2D NR; 3D NO
Image Flip 90°; 180°; 270°
Color Palettes 18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)
Fusion Mode 3 (Warm color; cool color; Iron red)
visible camera
Image Sensor 1/2.7'' CMOS 4MP
Maximum resolution 2336×1752
Pixels 4MP
Electronic Shutter Speed 1/30000s–1s

Minimum Illumination

Color: 0.05Lux
Black & White: 0.005Lux
0 Lux (IR on)

IR Distance

≥30m (98.43ft)

IR On/Off Control

Auto/Manual

Focus Length 4mm

Max Openings

F1.6

Field Of View

H: 71.2°; V: 52°

Focus controls

Fixed
Close Focus Distance 1m (3.28ft)
Day/Night Car (ICR); Color and B/W
BLC extension Yes
wdr extension dwdr extension
HLC extension Yes
White Balance Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural
AGC extension Car; manual
Noise reduction 2D NR; 3D NO
S/N Ratio ≥55dB
Region of Interest (RoI) Yes
Image Flip 90°; 180°; 270°
Exposure Compensation Yes
Intelligence
General Intelligence Tripwire, Intrusion
advanced intelligence Heat Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification
Smoking Detection
Call Detection

Temperature Measurement

Temperature Range Low Temperature Mode: –20 °C to +150 °C (–4 °F to +302 °F)
High Temperature Mode: 0°C to +550°C (+32°F to +1022°F)
Temperature Accuracy Max (± 2 °C, ± 2%) Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F)
Temperature Mode Spots: 12
lines: 12
Area: 12
Support 12 rules simultaneously
Video and Audio
Video compression H.265/H.264M/H.264H/H.264B/MJEPG
Resolution Thermal:
Main Stream: 1280×960 (1.3M); XVGA (1024×768); VGA (640×480); 256×192; 1280×960 (by default)
Sub Streams: VGA (640×480); 256×192; 256 × 192 (by default)
Visuals:
Main Stream: 2336×1752; 1080p (1920×1080); 720p (1280×720); D1 (704×576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704×576); CIF (352×288); 352 × 288 (by default)
Frame Rates Thermal
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
View
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression G.711a; G.711mu; pcm extension
Network
protocol HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; smtp; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP extension
Edge Storage Micro SD card (256G)
Interoperability ONVIF®; CGI
Browsers IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier
User/Host 10
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Certification
Certifications CE: EN55032:2015; EN61000-3-2:2014
FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014
Port
Network 1 × RJ-45 (10/100Base-T)
Audio inputs 1
Audio Outputs 1
Alarm Inputs 1
Alarm Output 1
RS-485 1
Power
Power Supply 12VDC, 1.2A (±20%); PoE
power consumption Basic: < 6.5W (LED off)
Max: < 13W (LED on, heater on)

environment

Operating Temperature –30°C to +60°C (–22°F to +140°F)
Storage Temperatures –30°C to +70°C (–22°F to ?158°F)
Operating Humidity ? 95%
Protection IP67; anti-surge 6 kV; anti-electrostatic 6 kV (touched by objects); anti-electrostatic 8 kV (air)
structure
Product Dimensions 122mm × 122mm × 112mm (4.8" × 4.8" × 4.41")
Packaging Dimensions 155mm × 155mm × 135mm (6.10" × 6.10" × 5.31")
Net Weight ? 0.85kg (1.87lbs)
Gross Weight ? 1kg (2.20lbs)

Further details

Thermal camera... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is a THERMAL CAMERA .


Sensitivity <50mK

Visual spectrum from 8 to 14µm

Dual Lens Technology!
This camera is equipped with 2 lenses , a thermal 3.5mm and a visible 4mm

- People detection up to 146m

- Detection of mobile vehicles up to 389m


PoE power supply

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

This camera features SMART DETECTION
- Line crossing

- Intrusion

- Classification Persons / Vehicles

- Smoke detection

- Detection of hot and cold areas

- Fire detection & alarm

This camera can detect the presence of fire and detect its temperature

This camera has 1 RS-485 port

Full HDThis camera has 1 input and 1 alarm output
Ingresso Audio This camera has 1 inputs + 1 Audio Output
Protezione IP67 contro polveri e immersioni IP67: Guarantees protection from dust and water jets (rain)
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione DWDR

D-WDR (Digital Wide Dynamic Range)

D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
MicroSD recording

Possibility to insert Micro SD up to a maximum of 256Gb

Dual encoding This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
Telecamera IP  Dome Motorizzata Ibrida Termica Dual-Lens
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
