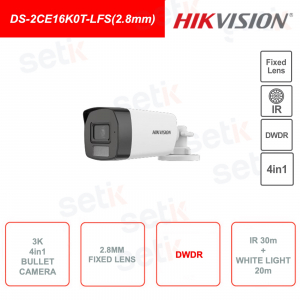

Hikvision DS-2CE16K0T-LFS(2.8mm) Mini Bullet Camera with 3K 2960x1665 resolution - 4in1: TVI/AHD/CVI/CVBS - 2.8mm fixed lens , 3K CMOS sensor - 30m IR illumination and 20m white light illumination - Day&Night - DWDR - AGC, Hikvision-C, IP67 Protection - Made of metal. One of the best bullet cameras
HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
DS-2CE16K0T-LFS(2.8mm) | MINI BULLET CAMERA 3K 4IN1 TVI/AHD/CVI/CVBS - 2.8MM OPTIC - DWDR - IP67 - IR 30M - WHITE LIGHT 20M
Resolution: 3K 2960X1665 - 4 technologies in 1 switchable: TVI/CVI/AHD/CVBS - 2.8 mm Fixed Lens - 3K CMOS Sensor - Hikvision-C
30m IR illuminator - 20m white light illuminator - Day/Night(ICR) - DWDR - AGC - IP67 outdoor protection
Power supply NOT included - 24 month warranty One of the best bullet cameras
| 4in1: 4 technologies in 1, switchable: TVI/AHD/CVI/CVBS. |
| Resolution: This camera features a resolution of 3K (2960x1665 pixels progressive scan) 3K progressive scan CMOS image sensor |
| Optics: This camera features a 2.8 mm Fixed Lens |
|
Infrared IR Illuminator: |
| White light illuminator: White light illuminator integrated into the design, with an approximate range of up to 20m. |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
|
D-WDR: D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
| Diet: A 12V DC power supply is required to operate this camera (not included)  |
| IP67 protection: Protection from dust and temporary immersion. Suitable for use in outdoor surveillance systems. |
Data sheet
| DS-2CE16K0T-LFS(2.8mm) | |
|
Room |
|
|
Image Sensor |
3K CMOS |
|
Max.Resolution |
2960(H)×1665(V) |
|
Min. Illumination |
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
|
Day ? Night |
ICR |
|
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
|
Signal System |
PAL/NTSC |
|
Lens |
|
|
Lens Type |
2.8mm |
|
Focal Length? FOV |
horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
Lens Mount |
M12 |
|
Illuminator |
|
|
Supplement Light Type |
White Light, IR |
|
Supplement Light Range |
IR: Up to 30 m White Light: Up to 20 m |
|
Image |
|
|
Image Settings |
Brightness, Sharpness, Smart IR |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS : PAL/NTSC |
|
Day/Night Mode |
IR/White Light |
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
Image Enhancement |
Yes |
|
White Balance |
Auto/Manual |
|
AGC |
Yes |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
|
General |
|
|
Material |
Metal |
|
Dimension |
138.8 mm × Ø 70 mm (5.47" × Ø 2.76") |
|
Weight |
Approx. 270 g (0.60 lb.) |
|
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
|
Communication |
HIKVISION-C |
|
Language |
English |
|
Power Supply |
12VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
|
Consumption |
Max. 3.3W |
|
Approval |
|
|
Protection |
IP67 |
