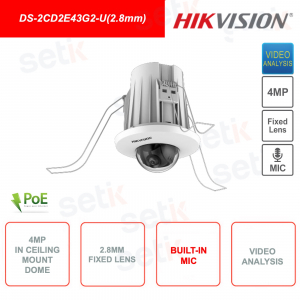

Recessed ceiling camera - 4MP PoE IP Mini Dome - 2.8mm lens - Microphone - WDR 120dB - Video Analysis

Recessed ceiling camera - 4MP PoE IP Mini Dome - 2.8mm lens - Microphone - WDR 120dB - Video Analysis
-35%

Hikvision | DS-2CD2E43G2-U (2.8mm) - HIKVISION - Dome camera for recessed ceiling - 4MP resolution - High quality 1/3 "" CMOS sensor - 2.8mm fixed lens - Triple Stream Video - Codec up to H.265 + - WDR 120dB - Built-in microphone - BLC - HLC - AGC - Day / Night (ICR) - 3DNR - Video analysis with intrusion detection and perimeter protection - MicroSD 256GB slot (card not included) - LAN 100M - Reset button - Plastic shell.



Reference: DS-2CD2E43G2-U(2.8mm)

Brand: Hikvision

EAN: 6931847135119

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-2CD2E43G2-U (2.8mm) | HIKVISION IP POE RECESSED CEILING DOME CAMERA - 2.8MM LENS - WDR 120DB - VIDEO ANALYSIS - MICROPHONE

Made by Hikvision

Hikvision Dome IP PoE 4MP for recessed ceiling - DS-2CD2E43G2-U (2.8mm)
4MP resolution - 2.8mm fixed lens - 4MP 1/3 "CMOS sensor (2688 × 1520)
BLC, HLC -AGC - WDR 120dB - Mirror Mode - Privacy Masking - With integrated microphone - MicroSD card slot up to 256GB (not included) - Video Analysis with intrusion detection and perimeter protection - Plastic body - Reset Button - Power supply not included - 24 month warranty

Product Details

Resolution:

This camera features a resolution of 4MP 4 Megapixels (2688 × 1520 pixels in progressive scan! )

Optics and CMOS:

2.8mm fixed lens and 2MP 1 / 2.8 "CMOS sensor.

Audio:

This camera is equipped with on-board microphone!

Video Analysis:

This camera features video analysis capabilities with line crossing and intrusion detection.
Motion Detection present.

Day / Night:

Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

BLC (Back Light Compensation):

is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):

integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D - DNR:

More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Installation:

Designed for recessed ceiling installation.

MicroSD slot:

Present a slot for MicroSD memory cards up to 256GB (card not included in the package).

Diet:

A 12V DC power supply is required for the operation of this camera (not included)

MATERIAL:

This camera features a plastic housing.

Dimensions and weight:

Dimensions: Ø 93.9 × 117.5 mm
Item net weight: 155g

Data sheet

DS-2CD2E43G2-U (2.8mm)

Built-in Microphone

Yes

On-board Storage

Built-in memory card slot, support microSD / SDHC / SDXC card, up to 256GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M / 100M self-adaptive Ethernet port

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Face Detection

Yes

Deep Learning Function

Perimeter Protection

Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 0.27 A, max. 3.2 W, two-core terminal block PoE: (802.3af, 36 V to 57 V), Class 3, 0.12 A to 0.07 A, max. 4.2 W

Linkage Method

Upload to FTP / memory card / NAS, notify surveillance center, trigger recording, trigger capture, send email

Web Client Language

33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via email, pixel counter

Storage Conditions

-10 ° C to 50 ° C (14 ° F to 122 ° F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-10 ° C to 50 ° C (14 ° F to 122 ° F). Humidity 95% or less (non-condensing)

Material

Plastic body

Screw Material

SUS304

Dimension room

Ø 93.9 × 117.5 mm (Ø 3.7 "× 4.6")

Package Dimension

135 × 135 × 183 mm (5.3 "× 5.3" × 7.2 ")

Camera Weight

Approx. 155 g (0.3 lb.)

With Package Weight

Approx. 325 g (0.7 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130- 4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015)

Safety

UL (UL 62368-1); CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014 / A11: 2017)

Environment

CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)

Further details

DS-2CD2387G2-L% 282.8mm% 29_DIMENSIONI.jpg

Download

Download the English brochure
