Recessed ceiling camera - 2MP PoE IP Mini Dome - 2.8mm Lens - Microphone - WDR 120dB - Video Analysis
Hikvision | DDS-2CD2E23G2-U (2.8mm) - HIKVISION - Dome camera for recessed ceiling - Resolution 2MP 1080p - High quality 1 / 2.8 "" CMOS sensor - 2.8mm fixed lens - Triple Stream Video - Codec up to H.265 + - WDR 120dB - Built-in microphone - BLC - HLC - AGC - Day / Night (ICR) - 3DNR - Video analysis with intrusion detection and perimeter protection - MicroSD 256GB slot (card not included) - LAN 100M - Reset button - Plastic shell .
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-2CD2E23G2-U (2.8mm) | HIKVISION IP POE RECESSED CEILING DOME CAMERA - 2.8MM LENS - WDR 120DB - VIDEO ANALYSIS - MICROPHONE

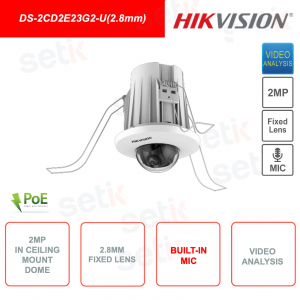

Hikvision Dome IP PoE 2MP for ceiling recess - DS-2CD2E23G2-U (2.8mm)
2MP FullHD 1080p resolution - 2.8mm lens - 1 / 2.8 " CMOS sensor
BLC, HLC -AGC - WDR 120dB - Mirror Mode - Privacy Masking - With integrated microphone - MicroSD card slot up to 256GB (not included) - Video Analysis with intrusion detection and perimeter protection - Plastic body - Reset Button - Power supply not included - 24 month warranty
Resolution:This camera features a resolution of 2MP 2 Megapixels (1920x1080p FullHD ) |
Optics and CMOS:2.8mm fixed lens and 2MP 1 / 2.8 "CMOS sensor. |
Audio:This camera is equipped with on-board microphone! |
Video Analysis:This camera features video analysis capabilities with line crossing and intrusion detection.Motion Detection present. |
Day / Night:Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
BLC (Back Light Compensation):is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
AGC (Automatic Gain Control):integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
3D - DNR: More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions. |
Installation:Designed for recessed ceiling installation. |
MicroSD slot:Present a slot for MicroSD memory cards up to 256GB (card not included in the package). |
Diet:A 12V DC power supply is required for the operation of this camera (not included) |
MATERIAL:This camera features a plastic housing. |
Data sheet
| DS-2CD2E23G2-U (2.8mm) | |
Room | |
Image Sensor | |
Hardware Reset | Yes |
Communication Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
Face Detection | Yes |
Deep Learning Function | |
Perimeter Protection | Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle) |
General | |
Power | 12 VDC ± 25%, 0.25 A, max. 3 W, two-core terminal block PoE: (802.3af, 36 V to 57 V), Class 3, 0.11 A to 0.07 A, max. 4 W |
Linkage Method | Upload to FTP / memory card / NAS, notify surveillance center, trigger recording, trigger capture, send email |
Web Client Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
Software Reset | Yes |
Storage Conditions | -10 ° C to 50 ° C (14 ° F to 122 ° F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -10 ° C to 50 ° C (14 ° F to 122 ° F). Humidity 95% or less (non-condensing) |
Material | Plastic body |

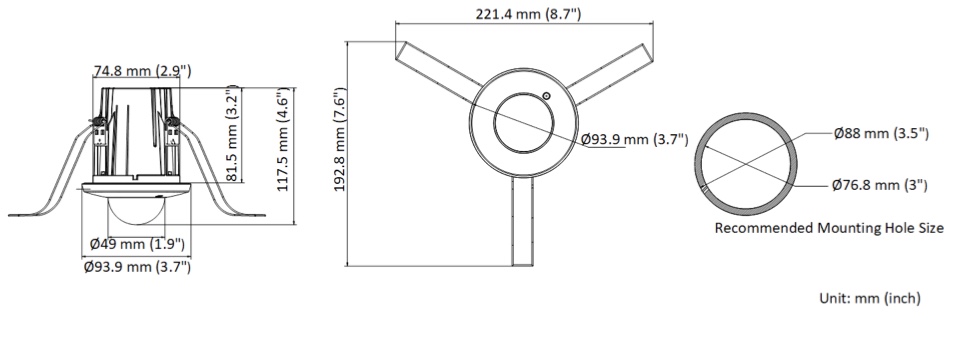

Dimension room | Ø 93.9 × 117.5 mm (Ø 3.7 "× 4.6") |
Package Dimension | 135 × 135 × 183 mm (5.3 "× 5.3" × 7.2 ") |
Camera Weight | Approx. 155 g (0.3 lb.) |
With Package Weight | Approx. 325 g (0.7 lb.) |
Approval | |
EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130- 4: 2011 + A1: 2014); |
Safety | CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014 / A11: 2017) |
Environment | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
