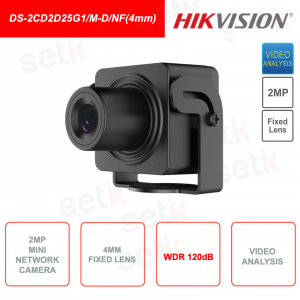

Mini Network IP Camera - 2MP - 4mm Optics - Audio - WDR 120dB - Video Analysis

-35%

DS-2CD2D25G1 / MD / NF (4mm) Hikvision camera - Mini Network 2MP - 4mm fixed lens - 1 / 2.8 "CMOS sensor - Codec H.265 + - Triple Stream Video - WDR 120dB, BLC, 3D DNR, HLC, Day / / Night (ICR) - ROI - Privacy Masking - Motion Detection Up to 32 users - Video Analysis with line crossing, lost / abandoned objects - Reset Key - Weight 93g.

Reference: DS-2CD2D25G1/M-D/NF(4mm)

Brand: Hikvision

FIND INSTALLER

https://www.setik.biz/en/cameras/8203-hikvision-ds-2cd2d25g1-m-d-nf4mm-mini-network-ip-camera-2mp-4mm-optics-audio-wdr-120db-video-analysis.html

€206.18

€317.20 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Description Product Details Data Sheet Further Details Download

DS-2CD2D25G1 / MD / NF (4mm) | MINI NETWORK CAMERA - 4MM - CMOS 1 / 2.8 "2MP - AUDIO - VIDEO ANALYSIS - H.265 +

Hikvision Mini Network Camera - 2MP - 4mm lens
Resolution: 2MP - 4mm fixed lens - 1 / 2.8 "CMOS sensor - H.265 +
- WDR 120dB - AGC -BLC - HLC - 3D DNR - Day // Night (ICR) - ROI - Privacy Masking - Motion Detection - Triple Stream - Mono audio - Video Analysis with line crossing and abandoned and lost objects - Reset Button - Power supply NOT included - 24 month warranty

Resolution:
This camera features a resolution of 2MP 2 Megapixel
Image sensor 1 / 2.8 ”2Megapixel progressive scan CMOS from 2MP 1920x1080p FullHD

Optics:
This camera features a 4mm fixed lens

Compression H.265 +

What is H.265 +?

A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR 120dB

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
The higher the db value, the greater the ability of the camera to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
Immagine esempio funzione WDR 120db

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Data sheet

DS-2CD2D25G1 / MD / NF (4mm)
Room
Image Sensor	1 / 2.8 "Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON)
Shutter Time	1/3 s to 1 / 100,000 s
Lens
Focal Length & FOV	horizontal FOV: 82.8 °, vertical FOV: 45.1 °, diagonal FOV: 98 °
Lens Mount	M12
Iris Type	Fixed
Openings	F2.0
Video
Main Stream	50Hz: 50fps (1920x1080, 1280x720) 60Hz: 60fps (1920x1080, 1280x720)
Sub-Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Video Compression	Main stream: H.265 / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264
H.264 Type	Baseline Profile / Main Profile / High Profile

Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
Safety	UL (UL 62368-1); CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014 / A11: 2017); BIS (IS 13252 (Part 1): 2010 / IEC 60950-1: 2005); LOA (IEC / EN 60950-1)
Environment	CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)
