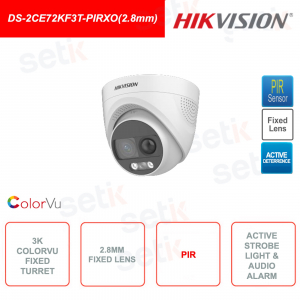

3K IP Turret camera with Siren and PIR - 2.8mm lens - WDR 130dB - Speaker - Illumination 20m - Color 24/7

IN PROMOTION -35%

Hikvision ColorVu | DS-2CE72KF3T-PIRXO(2.8mm) - ColorVu outdoor Turret IP camera - - High quality 3K CMOS sensor with ColorVu Technology - 24/7 color vision - 2.8mm lens - PIR with 11m range - White light illumination up to 20m - White light alarm and siren - BLC, HLC, Global, HLS, AWB, 3D DNR/2D DNR, Mirror Mode- Privacy Mask on 4 zones - Motion Detection - IP67 protection - 1 analog video output - Alarm 1 out - Body metal and plastic - Ideal for outdoor use.

Reference: DS-2CE72KF3T-PIRXO(2.8mm)

Brand: Hikvision

FIND INSTALLER

https://www.setik.biz/en/cameras/8196-hikvision-ds-2ce72kf3t-pirxo28mm-3k-ip-turret-camera-with-siren-and-pir-28mm-lens-wdr-130db-speaker-illumination-20m-color-247.html

€175.25

€269.62 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Description Product Details Data Sheet Further Details Download

DS-2CE72KF3T-PIRXO(2.8mm) | HIKVISION COLORVU MINI TURRET IP CAMERA - 3K RESOLUTION - 2.8MM LENS - WDR 130dB - OUTDOOR USE - IP67 - STROBE LIGHT ALARM AND SIREN

Hikvision IP Turret Outdoor Camera with Color Vu Technology - DS-2CE72KF3T-PIRXO(2.8mm)
3K 2960×1665 resolution - 2.8mm lens - 3K CMOS sensor with ColorVu Technology: 24/7 color vision even at night! - WDR 130dB - White light illumination up to 20m - White light ON/OFF - Alarm signal with strobe light and siren - AGC - AWB - 3D DNR/2D DNR - WDR 130dB, BLC, HLC, Global, HLS - Mirror Mode - Motion Detection - Alarm 1 out - Privacy Masks - Metal and plastic body - Power supply not included - 24 months warranty

ColorVu technology:
Hikvision ColorVu technology provides 24/7 vivid and colorful images with advanced F1.0 lenses and high-performance sensors. The F1.0 super aperture collects more light to produce brighter images. Advanced sensor technology can greatly improve the utilization of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid detail in full color, thanks to sensor and lens technology.

HIGH BRIGHTNESS
The lens of these cameras is a F1.0 . Such a large aperture allows you to collect a large amount of light and capture color images even in the dark.

SENSOR WITH A SURPRISING QUALITY
The sensor installed in ColorVu products has a sensitivity of 0.0005 Lux and has allowed a considerable improvement in the quality of the shots.
Thanks to the BBAR coating and ED glass, the images provided are without backlight effects and with a reduced light glare.

SML TECHNOLOGY - WHITE LED ON BOARD
All the cameras in this line have an integrated white LED, with many adjustable functions, all adjustable during installation; from the courtesy light, to smart activation in conditions of total absence of light.

SIMPLIFIED COMMISSIONING
Thanks to the 4 pre-configured profiles and the possibility of creating two customized ones, ColorVu products allow easy installation for professionals in the sector.

Resolution:

This camera features a resolution of 3K ( 2960 × 1665)

Bright lens:

This camera features a bright F1.0 aperture lens and a 2.8mm fixed lens.
The camera will collect much more light ensuring color footage even in the dark!

RIP:

Integrated PIR with 11m range and 110° angle.

Advanced Sensor and ColorVu Technology:

Thanks to the sensitivity of the sensor present (0.0005 Lux) , the BBAR coating and the ED glass , this camera is able to provide images without those annoying backlight effects. The details captured are vivid in color and in high definition even in low light conditions . It will be easier to recognize the characteristics of a person or a car/license plate

Infrared IR Illuminator | White Light:

With the supplemental white light on board , the camera is able to provide images with more vivid colors even in total darkness.
Many adjustable functions: from the courtesy light to smart activation in conditions of total absence of light.

Range 20m

WDR 130dB

WDR (Wide Dynamic Range): this is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.

Day/Night:

It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

BLC (Backlight Compensation):

is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):

integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

3D-DNR:

More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

MATERIAL:

This camera features a metal and plastic body.

ALARM:

This camera has 1 alarm output.

IP67 protection:

Protection from dust and temporary immersion. Suitable for outdoor environments.

Weight and size:

Dimensions: Ø109.8mm × 91.6mm

Weight: 416g

Operating temperature: -40°C to 60°C

Data sheet

DS-2CE72KF3T-PIRXO(2.8mm)
Room
Image Sensor	3K CMOS
Max.Resolution	2960(H)×1665(V)
Min Illumination	0.0003Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s
Day ? Night	24/7 color imaging
Angle adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System	PAL/NTSC
Slow shutter	Max. 16 times
lens
LensType	2.8mm fixed focal lens
focal length ? FOV extension	horizontal FOV: 109°, vertical FOV: 58°, diagonal FOV: 129°
Lens mount	M16
Illuminator
Supplement Light Type	White Light
Supplement Light Range	Up to 20m
Smart Supplement Light	Yes
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
Image Settings	Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC
Frame Rates	3K@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps
Day/Night Mode	Color
Wide Dynamic Range (WDR)	≥130dB
Image Enhancement	WDR, BLC, HLC, Global, HLS
PrivacyMask	4 programmable privacy masks
Noise reduction	3D DNR/2D DNR
White Balance	Auto/Manual
White Light	Auto/Off
Supplement Detection(PIR)
PIR Range	11m
PIR Angle	110°
interface
Video Output	1 HD analog output
alarm	1 line out flashing light alarm (white)
Event
motion detection	4 programmable motion areas
General
Power	12VDC ±25%, max. 7.7W *You are recommended to use one power adapter to supply the power for one camera.
Material	Front cover: Metal, Main body: Plastic
Dimension	Ø109.8mm × 91.6mm (Ø4.32" × 3.6")

Weight	Approx. 416g (0.92lb.)
Operating Condition	-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
communication	HIKVISION-C
Language	English
Approve
Protection	IP67
