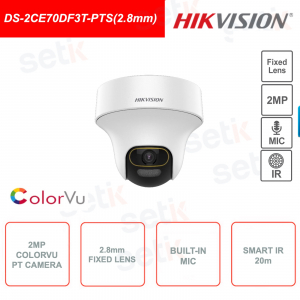

Indoor PT Turbo HD camera - 2MP Full HD ColorVu - 2.8mm lens - Smart IR 20m - Microphone

Indoor PT Turbo HD camera - 2MP Full HD ColorVu - 2.8mm lens - Smart IR 20m - Microphone
-35%

Hikvision DS-2CE70DF3T-PTS(2.8mm) camera - Camera designed for indoor use - Turbo HD - 2MP 1080p FullHD resolution - 2MP CMOS with ColorVu technology for 24/7 color viewing - 2.8mm fixed lens - Smart IR up to 20m - Integrated microphone - WDR 130dB - BLC - HLC - Global - HLS - 1 HD analogue output - Motion Detection on 4 programmable areas - M12 lens mount - 3DNR - 2DNR - Privacy Masking - Mirror Mode - AWB - High quality product.



Reference: DS-2CE70DF3T-PTS(2.8mm)

Brand: Hikvision

EAN: 6931847165079

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


DS-2CE70DF3T-PTS(2.8mm) | HIKVISION PT TURBO HD TVI CAMERA FOR INDOORS - COLORVU CMOS - WDR 130DB - RESOLUTION 2MP 1080P - 2.8MM FIXED LENS - 1 HD ANALOG OUTPUT

Made by Hikvision

Hikvision Camera - DS-2CE70DF3T-PTS(2.8mm)
Resolution: 2MP 1080p - 2.8mm fixed lens - 2MP CMOS sensor with ColorVu technology for 24/7 color vision
Smart IR illuminator 20m - Day/Night - BLC - WDR 130dB - IP67 protection - HLC - BLC - AGC - 3DNR - Mirror Mode - Privacy Masks - Mirror Mode - 1 analog HD output - Guarantees excellent performance in low light contexts.
12VDC power supply NOT included - 24 months warranty

Resolution:
This camera features a resolution of 2MP 1080p FullHD
CMOS:
High performance CMOS sensor with 2MP resolution and ColorVu technology for 24/7 color vision.
Optics:
This camera features a 2.8mm fixed lens

Infrared IR Illuminator:
Infrared IR illuminator for better night vision. Range up to 20m.

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.
Tecnologia Smart IR

Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

BLC (Backlight Compensation):
is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations


Click to enlarge

WDR 130dB:
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model goes up to 130dB while handling very high levels of contrast.
Immagine esempio funzione WDR 120db
3D-DNR:
3D-NR is the most advanced version of NOISE REDUCTION management.
Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light.
Audio:
This camera has built-in microphone!

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE70DF3T-PTS(2.8mm)

Room

Image Sensor

2MP CMOS

Max.Resolution

1920(H)×1080(V)

Min Illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s

Day & Night

24/7 color imaging

Angle adjustment

Pan: 0 to 350°, tilt: 0 to 75°

*DO NOT adjust the angle of the main body or enclosure manually.

Signal System

PAL/NTSC

Slow shutter

Max. 16 times

lens

LensType

Fixed focal lens, 2.8mm

Focal Length & FOV

horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°

Lens mount

M12

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 20m

Smart Supplement Light

Yes


Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Saturation, AGC

Frame Rates

TVI: 1080P@25fps/30fps

Day/Night Mode

Color

Wide Dynamic Range (WDR)

≥130dB

Image Enhancement

BLC, HLC, Global, HLS

PrivacyMask

4 programmable privacy masks

Noise reduction

3D DNR/2D DNR

White Balance

Auto/Manual

White Light

Auto/Off

interface

Video Output

1 HD analog output

alarm

Solid Light Alarm (White Light)

Built-in Microphone

Yes

Event

motion detection

4 programmable motion areas

General

Power

12VDC ±25%, max. 7.4W

*You are recommended to use one power adapter to supply the power for one camera.

Material

Plastic

Dimension

Ø123.7 × 110.8 (4.9" × 4.4")

Weight

Approx. 290 g (0.6 lb.)

Operating Condition

-10°C to 40°C (14°F to 104°F). Humidity 90% or less (non-condensing)

communication

HIKVISION-C

Further details

DS-2CE16D3T-ITF

Downloads

Download the English brochure
