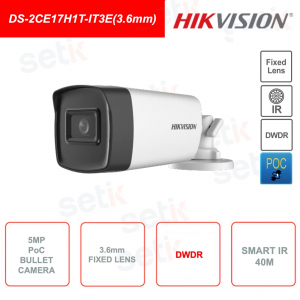

Hikvision DS-2CE17H1T-IT3E PoC camera (3.6mm) - Bullet with 3.6mm fixed lens - M12 Lens Mount - 5MP CMOS sensor - Smart IR illumination up to 40m - IP67 protection from dust and splashes - BLC - HLC - DWDR - AWB - 2DNR - Ideal for outdoor use. One of the best bullet cameras
FIND INSTALLER
€107.85
€165.92 -35%
discover the available quantity
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-2CE17H1T-IT3E(3.6mm) | POC BBULLET CAMERA 5MP - 3.6MM FIXED LENS - IP677 - SMART IR 40M
Hikvision Fixed Bullet Camera - DS-2CE17H1T-IT3E(3.6mm)
Resolution: 5MP 2560x1944 progressive scan - PoC: Power Over Coax - 3.6 mm fixed lens - 5MP CMOS sensor - 1 HD analogue output - Hikvision-c - Smart IR illuminator 40m - Day/Night - DWDR - AGC - HLC - BLC - 2D-DNR - IP67 for outdoor use - Power supply NOT included - 24 months warranty
| PoC: Power Over Coax: HIKVISION , a leading solution provider in the global video surveillance industry, has simplified the installation of HDCVI surveillance system with Power over Coax (PoC) technology , which transmits both video, audio, control signal and electrical power over a single coaxial cable , eliminating the need for separate camera power supplies and minimizing operating costs. |
| Resolution: This camera has a resolution of 5MP (2560x1944 pixels, progressive scan) 5 Megapixel progressive scan CMOS image sensor |
| Optics: This camera features a 3.6mm Fixed Lens |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| BLC (Backlight Compensation): is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
| HLC: integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
| AGC (Automatic Gain Control): integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
D-WDR D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
| Diet: A 12 VDC ±25%/PoC.af power supply is required for the operation of this camera (not included)  |
| IP67 protection: Protection from dust and temporary immersion. Suitable for outdoor environments. |
Data sheet
| DS-2CE17H1T-IT3E(3.6mm) | |
Room | |
Image Sensor | 5MP CMOS |
Max.Resolution | 2560(H)×1944(V) |
Min Illumination | 2.8 mm, 3.6 mm and 6 mm: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/25s to 1/50,000s NTSC: 1/30s to 1/50,000s |
Day & Night | ICR extension |
Angle adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360° |
Signal System | PAL/NTSC |
lens | |
LensType | 3.6mm fixed focal lens |
Focal Length & FOV | horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105° |
Lens mount | M12 |
image | |
Image Parameters Switch | STD/HIGH-SAT |
Image Settings | Brightness, Sharpness, Smart IR |
Frame Rates | 5M @ 20fps, 4M @ 30fps, 4M @ 25fps, 1080P @ 30fps, 1080P @ 25fps |
Day/Night Mode | Auto/Color/BW (Black and White) |
Wide Dynamic Range (WDR) | Digital WDR |
Image Enhancement | DWDR, BLC, HLC, Global |
Noise reduction | 2D DNR |
White Balance | Auto/Manual |
AGC extension | Yes |
interface | |
Video Output | 1 HD analog output |
General | |
Material | Front Cover: Metal Main Body: Plastic |
Dimension | 216.6mm × 78.9mm × 75.4mm (8.53" × 3.10" × 2.97") |
Weight | Approx. 380g (0.84lb.) |
Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
communication | HIKVISION-C |
Language | English |
Power Supply | 12 VDC ±25%/PoC.af *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply. |
consumption | Max. 4W |
IR Range | Up to 40m |
Approve | |
Protection | IP67 |
