HYU-933 - Equivalent SF-IPB022CWA-4P - 4MP POE ONVIF IP Full Color Bullet Camera - 1/2.7" CMOS Sensor - 4 MP Resolution - Smart IR 30m - 24/7 Color Vision - H. 265+ Codec - Dual Streams - BLC, AWB, HLC, DWDR, 3D-DNR, Mirror - Privacy Masking - IP67 protection ideal for outdoor use - RJ45 100M interface - In metal - 12V DC power supply - Up to 32 users.

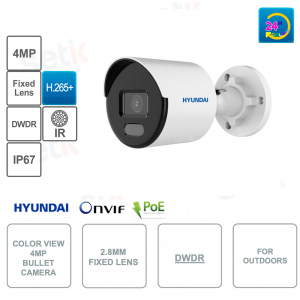

OUTDOOR COLOR VIEW IP BULLET CAMERA - 2.8MM - SMART IR 30M - IP POE ONVIF® - HYUNDAI 4 MEGAPIXEL - HYU-933
4MP resolution - 2.8mm fixed lens - 1/2.7" 4MP CMOS sensor - Smart IR 30m - Codec H.265+ - Dual Stream - OSD, AWB, AGC, BLC, DWDR, ROI 1 fixed zone - In metal - IP67 for outdoor use from dust and splashes - Metal body - Hyundai 3 Year Extended Warranty!
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version! |
|||
|
|||
4MP 1/2.7" CMOS sensor with Starlight Color View Technology ! COLOR VIEW STARLIGHT: With the adoption of high performance sensor and large aperture lens, this camera can provide more colorful image even in low light environment. Full-color starlight cameras are perfect for low-light applications that exceed 1 lux, such as parking lots, city streets, schools, museums, etc. 24H IN COLOR: This camera does not have an IR CUT filter. The camera does not switch to B/W but the vision will always be in colour. |
|||
This camera features a resolution of 4 MP! 1/2.7" 4Megapixel 2560x1440p progressive scan CMOS sensor. |
|||
2.8mm fixed lens. | |||
IR illuminator maximum range 30 meters ! This camera is also equipped with SMART IR technology. |
|||
Smart H.265+Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression |
|||
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations |
|||
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | |||
D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast. |
|||
ATW (Auto Tracing White Balance), refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature . ATW is a more advanced function than AWB (Auto White Balance), and is very important because without it, images may be completely unusable. Possibility to adjust the color balance manually (MWB) |
|||
Protection level IP67 ( Dust / Immersion ) | |||
A 12VDC power supply is required for the operation of this camera (not included) |
|||
This product is covered by a 3 Year Warranty! |
Data sheet
Model: HYU-933 |
Room |
1/2.7” 4 megapixel CMOS sensor |
Compression formats: H.265+, H.265, H.264+, H.264, MJPEG |
Digital resolution: 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360), QVGA (320x240) |
Stream 1: 4MP (20fps), 3MP, 1080P, 720P (25fps) Stream 2: VGA, Q720P, QVGA (25fps) |
24/7 color mode |
Smart Light: White light with a range of 30 meters |
0.001lux F1.0 |
2.8mm fixed lens |
View Angle: 102°(H), 56°(V), 127°(D) |
Picture modes: BLC, HLC, Digital WDR, 3D-DNR, Mirror |
1 fixed ROI zone main stream |
Video sensor and privacy mask |
Image rotation, brightness, saturation, contrast, sharpness, gain control and white balance adjustment via client software and web browser |
Network interface: RJ45 (10/100M) |
Network protocols: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
ONVIF® (S/G/T), ISAPI and SDK compliant |
Up to 32 users and 6 simultaneous views |
Remote viewing via IE, Chrome and Firefox browsers |
Plug&Play connection with NEXTGEN NVR |
Compatible with DDNS DEMES |
Power: 12V DC (±25%), 0.3A |
Consumption: 3.6W |
Supports PoE (802.3af) |
PoE consumption: 4.5W |
Storage temperatures -30°C ~ +60°C |
Operating temperatures -30°C ~ +60°C |
Relative humidity: 95% (non-condensing) |
Degree of protection IP67 |
Metal casing |
Dimensions: 68.4 (W) x 65.2 (H) x 161.1mm |
Weight: 420g |
