HYU-932 Outdoor IP PoE ONVIF Bullet Color View Bullet Camera, Smart IR up to 30m - 2.8mm fixed lens - 2MP 1/2.8" CMOS sensor - H.265+ codec - 24/7 color mode - Dual Video Stream - IP67 protection against dust and water splashes - Ideal for outdoor use - BLC, HLC, DWDR, 3D-DNR, Mirror, Privacy Masking - In Metal - Network RJ45 100M - Power supply 12V DC -

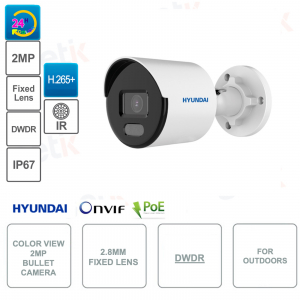

OUTDOOR COLOR VIEW IP BULLET CAMERA - SMART IR 30m - 2MP - 2.8MM FIXED LENS - IP67 OUTDOOR - HYU-932
HYU-932 - Hyundai Security - Outdoor Bullet camera - Color View - IP POE ONVIF® - CMOS 1/2.8" 2MP - 2.8mm fixed lens - Codec H.265+ - Dual Stream - Color View: 24/7 color vision - Smart IR 30m – Mechanical filter - 3D-NR, BLC, DWDR, video sensor, privacy masks, 1 zone ROI - IP67 protection against dust and splashes - For outdoor video surveillance systems - ONVIF®, DNS, DDNS - LAN RJ45 10 /100M - Power supply: 12V DC - In metal.
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
|
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation | |
This camera features a 2 Megapixel resolution! 1/2.8" 1920x1080p CMOS sensor |
|
This camera has a fixed 2.8mm lens! | |
IR illuminator with range up to 30 meters! This camera is also equipped with SMART IR technology. |
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression |
|
D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast. |
|
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations |
|
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image. |
|
Protection level IP67 ( Dust / Immersion ) |
|
Made with metal shell. | |
A 12V DC power supply is required for this camera to operate (not included) |
|
This product is covered by a 3 Year Warranty! |
Data sheet
Model: HYU-932 |
1/2.8” 2 megapixel CMOS sensor |
Compression formats: H.265+, H.265, H.264+, H.264, MJPEG |
Stream 1: 1080P, 1.3MP, 720P (25fps) Stream 2: VGA, Q720P, QVGA (25fps) |
24/7 color mode |
Smart Light: White light with a range of 30 meters |
0.001lux F1.0 |
2.8mm fixed lens |
View Angle: 107°(H), 56°(V), 127°(D) |
Picture modes: BLC, HLC, Digital WDR, 3D-DNR, Mirror |
1 fixed ROI zone main stream |
Video sensor and privacy mask |
Image rotation, brightness, saturation, contrast, sharpness, gain control and white balance adjustment via client software and web browser |
Network interface: RJ45 (10/100M) |
Network protocols: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
ONVIF® (S/G/T), ISAPI and SDK compliant |
Up to 32 users and 6 simultaneous views |
Remote viewing via IE, Chrome and Firefox browsers |
Plug&Play connection with NEXTGEN NVR |
Compatible with DDNS DEMES |
Power: 12V DC (±25%), 0.3A |
Consumption: 3.6W |
Supports PoE (802.3af) |
Supports PoE (802.3af) |
Supports PoE (802.3af) |
Operating temperatures -30°C ~ +60°C |
Relative humidity: 95% (non-condensing) |
Degree of protection IP67 |
metal case |
Dimensions: 68.4 (W) x 65.2 (H) x 161.1mm |
Weight: 420g |
