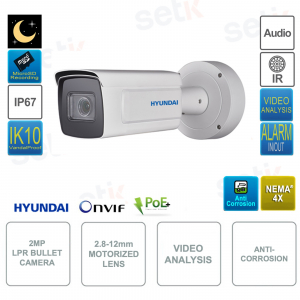

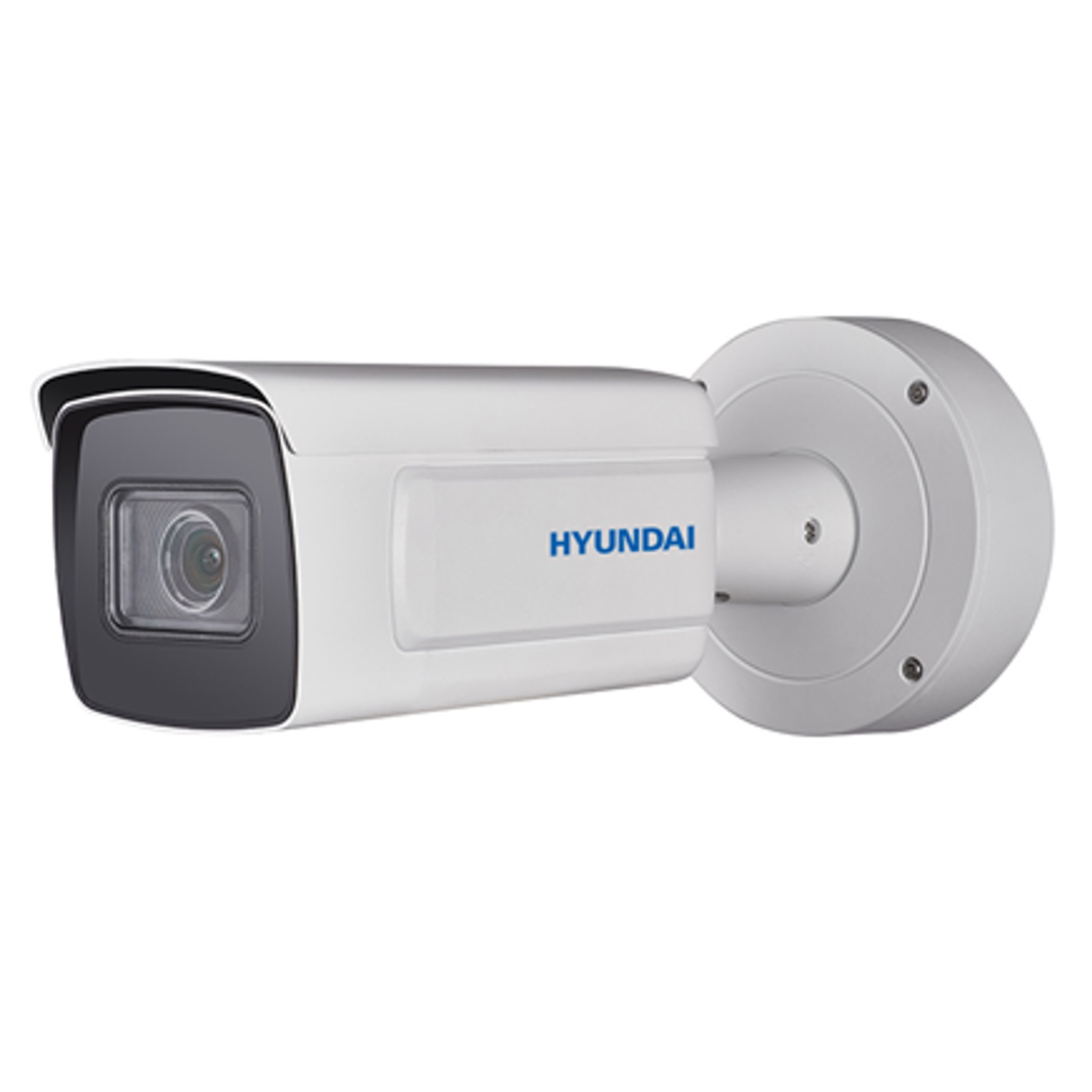

HYU-930 Starlight Bullet Camera 2MP - Motorized 2.8-12mm - - Auto and manual focus - IP POE+ ONVIF - Smart IR 50m - Video Analysis: perimeter protection, LPR license plate capture and recognition - Vehicle attributes - Traffic metadata - 5 Streams - H .265+ - IP67 and IK10 protection - WDR 140dB - ROI - BLC - HCL - EIS - Defog - 3DNR - Mirror - Privacy Masking - Audio - Alarm - 256GB MicroSD slot (not included) - Wiegand - RS485 - Auto focus - Case in aluminum - Supports PoE+ - RJ45 1000M - NEMA 4x anti-corrosion.
FIND INSTALLER
HYUNDAI BULLET CAMERA 2MP - 2.8 ~ 12MM - VIDEO ANALYSIS - SMART IR 50M - AUDIO - ALARM - ANTI-CORROSION - HYU-930
HYU-930 - Hyundai Security - Hyundai Motorized Starlight Bullet Outdoor Camera
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
|||
 |
|
|||
|
|
Anti-corrosion camera This camera is protected from corrosion by environmental agents with its 316L stainless steel housing. Classified by NEMA® (National Electrical Manufacturers Association) as 4X degree of protection, i.e.: "Indoor or outdoor installation: protection against windblown dust, rain, water sprays and jets, corrosion; also protection against damage due to external ice formation." Therefore ideal for video surveillance in difficult and aggressive environmental conditions . IDEAL ENVIRONMENTS: - Oil & gas - Maritime areas (ports, beaches, sea coasts), lakes or rivers |
|||
 |
This camera has a resolution of 2Megapixel Full HD 1080p progressive scan. 1/1.8" 2MP CMOS sensor. |
|||
 |
1/1.8" CMOS sensor with STARLIGHT technology. Low brightness, visibility at 0.0001Lux, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white. With the SENSOR present, night shots will be clear and in colour
|
|||
 |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
|||
 |
2.8-12mm varifocal motorized lens |
|||
 |
|
|||
 |
This camera features INTELLIGENT VIDEO ANALYSIS:
|
|||
|
|
Equipped with lighting with range up to 50m This camera is also equipped with SMART IR technology. |
|||
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
|||
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|||
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
|||
 |
HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
|||
 |
This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
|||
 |
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | |||
 |
ULTRA WDR up to 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
|||
 |
This camera features the EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable  |
|||
 |
3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light. |
|||
 |
Protection level IP67 ( Dust / Immersion ) Ideal for outdoor systems. |
|||
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
|||
 |
|
|||
 |
|
|||
 |
|
|||
 |
|
|||
 |
|
|||
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
|||
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model: HYU-930 |
| Room |
| 1/1.8” 2 megapixel CMOS sensor |
| Compression formats: H.265+, H.265, H.264+, H.264, MJPEG |
| Stream 1: 1080P, 720P (25fps) Stream 2: D1, VGA (25fps) Stream 3: 1080P, 720P, D1, VGA (25fps) Stream 4: 1080P, 720P, D1, VGA (25fps) Stream 5: D1, VGA (25fps) |
| Day/night mode with removable mechanical filters |
| Smart IR with a range of 50 meters |
| IR anti-reflective panel that increases infrared light transmission |
| 0.0005 lux F1.2 (color), 0.0001 lux F1.2 (B/W), 0 lur IR On |
| 2.8 ~12mm motorized optics |
| View Angle: 114.5°~41.8°(H), 59.3°~23.6°(V), 141.1°~48°(D) |
| Auto, semi-auto and manual focus mode |
| Picture modes: BLC, HLC, WDR 140dB, 3D-DNR, EIS, Defog, Mirror |
| 4 fixed ROI zones on each stream |
| Video sensor and privacy mask |
| Brightness, saturation, contrast, sharpness, gain control and white balance adjustment via client software and web browser |
| Possibility to overlay a 128x128 logo on the video |
| Perimeter protection: Line crossing detection, intrusion detection, area entry/exit detection |
| Capture and license plate recognition (LPR) integrated in the camera Allows lists of up to 10,000 license plates allowed / not allowed Supports motorcycle license plate recognition (only in Stop&Go scenarios) Supports vehicle attribute detection (vehicle type, color, brand, etc.) Supports road traffic metadata |
| BNC video output (for debugging only) |
| BNC video output (for debugging only) |
| 1 input / 1 audio output |
| 2 alarm inputs / 2 outputs |
| RS485 port |
| Wiegandinterface |
| Network interface: RJ45 (10/100/1000M) |
| Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, |
| PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Compliant with ONVIF® (S/G/T), ISAPI, SDK, ISUP |
| Up to 32 users and 20 simultaneous views |
| Remote viewing via web browsers |
| Plug&Play connection with NEXTGEN NVR |
| Compatible with DDNS DEMES |
| Power output at 12V DC, 100mA |
| Power input: 12V DC (±20%), 1.19A |
| Consumption: 14.28W |
| Supports PoE+ (802.3at) |
| PoE consumption: 16.8W |
| Storage temperatures -30°C ~ +60°C |
| Operating temperatures -40°C ~ +60°C |
| Relative humidity: 95% (non-condensing) |
| Degree of protection IP67 |
| Vandal protection IK10 |
| NEMA 4X corrosion protection |
| aluminum case |
| Weight: 1.9kg |
