HYU-701N Hyundai camera - Dome 4in1 HDCVI HDTVI AHD CVBS switchable - CMOS 1/2.9"" 2MP - FULL HD 1080p - Motorized varifocal 2.8-12mm lens - OSD on coaxial - Smart IR 30m with 18 led array - AWB, MWB, AGC, 2D-DNR, BLC, DWDR - IP65 Protection - Lightning Proof Protection - 12V DC
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

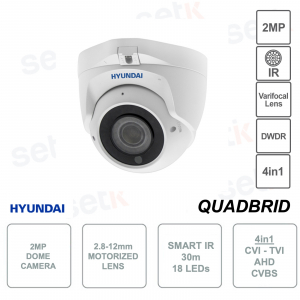

HYUNDAI DOME CAMERA 2 MEGAPIXEL 4in1 - MOTORIZED 2.8-12MM - SMART IR 30M - HYU-701N
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
4 TECHNOLOGIES IN 1: This camera features 4 technologies in 1 : HDTVI / HDCVI / AHD / 960H ( ANALOG ) interchangeable.
|
 |
FIXED OPTICS This camera is equipped with a 2.8-12mm motorized varifocal lens . |
|
|
IR ILLUMINATION IR illuminator and maximum range 30 meters with array of 18 LEDs ! This camera is also equipped with SMART IR technology. |
|
|
OSD MENU The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, ATW, 3D-DNR, etc. |
 |
DAY/NIGHT Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. |
 |
BLC (Back Light Compensation) It is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
 |
AGC - Signal Amplifier The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
ATW (Auto Tracing White Balance), refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature. ATW is a more advanced function than AWB (Auto White Balance), and is very important because without it, images may be completely unusable. |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model: HYU-701N | |
| Room Specifications | |
| 1/2.9" 2 megapixel CMOS sensor | |
| Digital resolution: 1080P (1920x1080) | |
| Frames per second: 25 fps @1080P (CVI/TVI/AHD) | |
| 4-in-1 video output (switchable via DIP switch) | |
| Day/night mode with removable mechanical filters (ICR) | |
| 0.02 lux F1.2 color / 0 lux IR On | |
| Smart IR: 18 array leds, up to 30 meters | |
| 2.8~12mm varifocal lens | |
| Multi-language OSD via coaxial (up to 300 meters) | |
| Picture modes: BLC, digital WDR, 2D-NR | |
| White balance with 5 modes | |
| Automatic gain control | |
| Power: 12V DC (±10%) | |
| Consumption: <5W | |
| Operating temperatures -20°C ~ +60°C | |
| Relative humidity: 10% ~ 90% (non-condensing) | |
| Degree of protection IP65 | |
|
Lightning proof |
