HYU-668N - Equivalent SF-IPB798ZUWH-4U-AI2 - Hyundai Outdoor POE+ ONVIFAisense IP Bullet Camera - 1/3" CMOS Sensor - 4MP 2688x1520 Resolution - 2.8-12mm motorized varifocal lens - Triple Stream - H.265+ - Smart IR 60m - Day/Night (ICR) - WDR 120DB - BLC - HLC - 3DNR - ROI - Privacy Masking - Video Analysis with perimeter protection and face capture - Audio and Alarm - IP66 protection for outdoors - 256GB MicroSD slot (not included) - RJ45 100M - Aluminum.
FIND INSTALLER
OUTDOOR AISENSE IP BULLET CAMERA IP POE+ ONVIF® - HYUNDAI 4MP - MOTORIZED 2.8 ~ 12MM - 4MP CMOS SENSOR - VIDEO ANALYSIS - HYU-668N

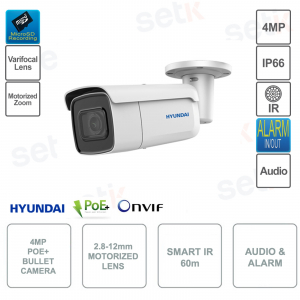

HYUNDAI - HYU-668N - Aisense IP PoE+ ONVIF® Bullet Outdoor Camera
Resolution 4MP 2688x1520p - Motorized varifocal lens 2.8-12mm - 1/3" CMOS sensor 4MP - ONVIF® - PoE+ - Smart IR 60m - Day/Night(ICR)HLC, BLC, WDR 120 dB, 3DNR, Privacy Masking, ROI - Protection Outdoor IP66 - Triple Stream Video - Codec H.265+ - MicroSD 256GB slot (not included) - Audio 1in/1out - Alarm 1in/1out - RJ45: 10/100M - Material: aluminum - Video Analysis: Perimeter protection and capture of the face - Hyundai 3 Year Extended Warranty!
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. This camera is ONVIF® compatible |
||
 |
The advantage of a PoE+ camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation | ||
 |
This camera features a resolution of 4MP! 4Megapixel 1/3" CMOS sensor (25fps, images per second) |
||
 |
2.8-12mm varfical motorized lens with Autofocus function for automatic focusing! Motorized zoom example: |
||
 |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
||
|
|
IR illuminator maximum range 60m meters. This camera is also equipped with SMART IR technology. |
||
 |
This camera features SMART DETECTION: - Perimeter protection |
||
-  |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
||
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
||
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
||
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
||
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
||
 |
HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
||
 |
|
||
 |
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | ||
 |
Possibility to insert Micro SD up to a maximum of 256GB (not included) | ||
 |
This camera has 1 input and 1 alarm output | ||
 |
Aluminum casing. | ||
 |
This camera has 1 audio input and 1 audio output . | ||
 |
IP66: guarantees the impossibility for dust to enter the camera and protection from water jets of any kind (e.g. rain) |
||
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
||
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model: HYU-668N |
| 1/3" 4 megapixel CMOS image sensor |
| Resolution: 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
| Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 4MP, 1080P, 720P (25fps) Stream 2: VGA, Q720P (25fps) Stream 3: 1080P, 720P, VGA, Q720P (10fps) |
| Day/night mode with removable mechanical filters (ICR) |
| 0.003 lux F1.4 (color, AGC On), 0 lux IR On |
| Smart IR: 60 meters |
| 2.8 ~12mm motorized optics |
| Viewing Angle: 108°~30°(H), 56°~17°(V), 131°~35°(D) |
| Image modes: BLC, HLC, WDR 120dB, 3D-DNR |
| 1 fixed ROI zone on main and secondary stream |
| Video sensor and privacy mask |
| Rotation, brightness, saturation, contrast, sharpness, gain control and white balance adjustment via client software or web browser |
| Perimeter Protection: Line crossing detection, intrusion detection, area entry/exit detection, supports people and vehicle classification |
| Face capture |
| 1 input / 1 audio output |
| 1 input / 1 alarm output |
| MicroSD card slot up to 256GB (card not included) |
| Network interface: RJ45 (10/100M) self-adaptive |
| Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS , PPPoE, SNMP, ARP |
| ONVIF® (S/G/T), ISAPI and SDK compliant |
| Up to 32 users and 6 simultaneous views |
| Compatible with IE, Chrome and Firefox browsers |
| Plug&Play connection with NEXTGEN NVR |
| Compatible with DDNS DEMES |
| Power: 12V DC (±25%) / PoE+ (802.3at) |
| Consumption: 13W (12V / 15W (PoE+) |
| Operating temperatures -30°C ~ +60°C |
| Humidity: <95% (non-condensing) |
| Degree of protection IP66 |
| aluminum case |
| Dimensions: Ø144.1 x 345.7mm |
| Weight: 1450g |
