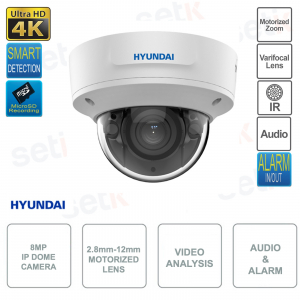

HYU-969 - Equivalent SF-IPD825ZWA-8P-HV - Hyundai Dome IP POE ONVIF video surveillance camera with IR 40M , Onvif, PoE, 1/2.8" 8MP 4K UltraHD CMOS sensor and 2.8-12 mm varifocal lens with motorized zoom - WDR 120dB , Day/Night(ICR), BLC, HLC, 3D-DNR, ROI - Codec H.265+ - Triple Stream Video - Video Analysis with line crossing, facial recognition, intrusion detection, vehicle/person classification - Micro SD slot 256GB ( not included) - Audio and alarm - IP67 and IK10 protection - In metal.
FIND INSTALLER
OUTDOOR IP POE ONVIF® DOME CAMERA - HYUNDAI - 8MP - MOTORIZED 2.8-12MM - IR 40M - VIDEO ANALYSIS - AUDIO - ALARM - HYU-969
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | This camera features 8MP 4K ultra HD resolution! 1/2.8" 3840x2160p progressive scan CMOS sensor |
| This camera is equipped with a 2.8-12 mm varifocal lens with motorized zoom |
 | Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | Stream 1 : 8MP (20fps), 6MP, 4MP, 1080P, 720P (25fps) Stream 2 : VGA, Q720P (25fps) Stream 3 : 1080P, 720P, VGA, Q720P (10fps) |
 | INTELLIGENT FUNCTIONS This camera has smart features:
|
| Smart IR illuminator. Maximum range 40 meters This camera is also equipped with SMART IR technology. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | Protection level IP67 ( Dust / Immersion ) |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| Model Name: HYU-969 |
| 1/2.8" 8-megapixel CMOS image sensor |
| Resolution: 8MP (3840x2160), 6MP (3200x1800), 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
| Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 8MP (20fps), 6MP, 4MP, 1080P, 720P (25fps) Stream 2: VGA, Q720P (25fps) Stream 3: 1080P, 720P, VGA, Q720P (10fps) |
| Day/night mode with removable mechanical filters (ICR) |
| 0.005 lux F1.6 (color, AGC On), 0 lux IR On |
| IR illumination: 40 meters |
| 2.8~12mm motorized optics |
| View Angle: 108°~30°(H), 56°~17°(V), 131°~35°(D) |
| Image modes: BLC, HLC, WDR 120dB, 3D-DNR |
| 1 fixed ROI zone for main and secondary streams |
| Image rotation, mirroring, privacy masks, saturation, brightness, contrast, sharpness, white balance and gain control adjustable via client software or web browser |
| Perimeter protection: Line crossing detection and intrusion detection with classification of people and vehicles, face detection |
| 1 input / 1 audio output |
| 1 input / 1 alarm output |
| MicroSD card slot up to 256GB (card not included) |
| Network interface: RJ45 (10/100M) self-adaptive |
| Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS , PPPoE, SNMP |
| Compliant with ONVIF® (S/G), ISAPI, SDK |
| Up to 32 users and 6 simultaneous views |
| Compatible with IE, Chrome and Firefox browsers |
| Plug&Play connection with NEXTGEN NVR |
| Compatible with DDNS DEMES |
| Power: 12V DC (±25%) / PoE (802.3af) |
| Consumption: 10.5W (12V) / 12.5W (PoE) |
| Operating temperatures -30°C ~ +60°C |
| Humidity: <95% (non-condensing) |
| Degree of protection IP67 |
| Vandal protection IK10 |
| Metal casing |
| Dimensions: Ø153.3 x 111.6mm |
| Weight: 855g |
