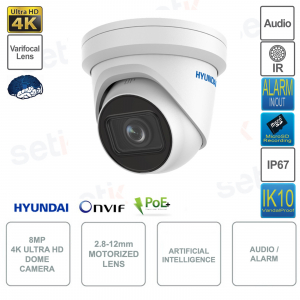

HYUNDAI - HYU-968 - Equivalent SF-IPT998ZWA-8P-HV - Outdoor video surveillance camera Dome IP PoE ONVIF - IR 40m - Resolution 8MP 4KUltra HD - Motorized 2.8-12mm - CMOS 1/2.8" 8MP - WDR 120dB - Triple Stream - H.265 - Day/Night (ICR), AGC, BLC, HLC, 3DNR - Artificial Intelligence: Perimeter, Detection face and human and vehicle classification - Mirror Mode - Privacy Masking - ROI - Audio - Alarm - IP67 protection for outdoor use and IK10 anti-vandalism - 256GB MicroSD slot (not included) - RJ45 100M - Aluminum body.
FIND INSTALLER
OUTDOOR IP POE ONVIF® DOME CAMERA - 4K RESOLUTION - 2.8MM-12MM LENS - IR 40M - ARTIFICIAL INTELLIGENCE - IP67 AND IK10 - HYU-968
HYU-968 - HYUNDAI - 8MP ONVIF® PoE IP Dome Outdoor Camera with 4K Resolution
8MP resolution - 2.8mm-12mm motorized lens - 1/2.8" 8 MP CMOS - IR 40m - WDR 120dB - Triple Stream - H.265+ - Artificial intelligence : face detection, human and vehicle classification, perimeter protection - ROI - 3DNR - BLC - Day/night (ICR) - Mirror Mode - Audio 1in/1out - Alarm 1in/1out - - Hyundai 3 Years Extended Warranty! - IP67 for outdoor use - IK10 against vandalism - 256GB MicroSD slot (not included) - Power supply 12V DC (not included) - For video surveillance systems.
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! Greater detail available, greater sense of depth and realism. |
| This camera has a resolution of 8Mpx : 3840x2160 progressive scan 1/2.8” 8Megapixel 8MP CMOS image sensor. |
 | This camera features a motorized varifocal 2.8mm-12mm lens. |
 | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entries or exits of car parks, shooting of license plates, presence of special lights, etc...).  |
 | Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | Stream 1: 8MP (20fps), 6MP, 4MP, 1080P, 720P (25fps) Stream 2: VGA, Q720P (25fps) Stream 3: 1080P, 720P, VGA, Q720P (10fps) |
  | This camera features advanced intelligent features including: - Perimeter protection |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light. |
| IR illuminator with range up to 40m! |
 | ULTRA WDR up to 120dB |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | Equipped with 1 audio input and 1 audio output |
 | Equipped with 1 input and 1 alarm output |
 | Possibility to insert Micro SD up to a maximum of 256GB (Not Included) |
 | Protection level IP67 ( Dust / Immersion ) |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | Made with aluminum shell, |
 | A 12V DC power supply is required for this camera to operate (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| Model name: HYU-968 |
| ROOM SPECS |
| 1/2.8" 8-megapixel CMOS image sensor |
| Resolution: 8MP (3840x2160), 6MP (3200x1800), 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
| Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 8MP (20fps), 6MP, 4MP, 1080P, 720P (25fps) Stream 2: VGA, Q720P (25fps) Stream 3: 1080P, 720P, VGA, Q720P (10fps) |
| Day/night mode with removable mechanical filters (ICR) |
| 0.005 lux F1.6 (color, AGC On), 0 lux IR On |
| IR illumination: 40 meters |
| 2.8~12mm motorized optics |
| View Angle: 108°~30°(H), 56°~17°(V), 131°~35°(D) |
| Image modes: BLC, HLC, WDR 120dB, 3D-DNR |
| 1 fixed ROI zone for main and secondary streams |
| Image rotation, mirroring, privacy masks, saturation, brightness, contrast, sharpness, white balance and gain control adjustable via client software or web browser |
| Perimeter protection: Line crossing detection and intrusion detection with classification of people and vehicles |
| face detection |
| 1 input / 1 audio output |
| 1 input / 1 alarm output |
| MicroSD card slot up to 256GB (card not included) |
| Network interface: RJ45 (10/100M) self-adaptive |
| Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS , PPPoE, SNMP |
| Compliant with ONVIF® (S/G), ISAPI, SDK |
| Up to 32 users and 6 simultaneous views |
| Compatible with IE, Chrome and Firefox browsers |
| Plug&Play connection with NEXTGEN NVR |
| Compatible with DDNS DEMES |
| Power: 12V DC (±25%) / PoE (802.3af) |
| Consumption: 11W (12V) / 12.5W (PoE) |
| Operating temperatures -30°C ~ +60°C |
| Humidity: <95% (non-condensing) |
| Degree of protection IP67 |
| Vandal protection IK10 |
| aluminum case |
| Dimensions: Ø138.3 x 126mm |
| Weight: 830g |
