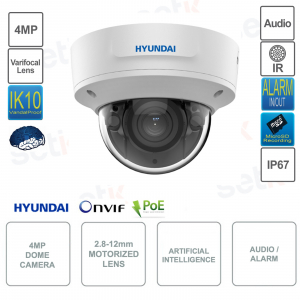

HYUNDAI DOME CAMERA 4MP MOTORIZED 2.8-12MM - IR 40M - INTELLIGENT FUNCTIONS - AUDIO - ALARM - HYU-964
4MP resolution - 2.8-12mm motorized varifocal lens - 1/3" 4MP CMOS - Triple Stream - H.265+ - Day/Night(ICR) - BLC, HLC, WDR 120dB, 3D-DNR, 1 zone ROI -
Artificial intelligence : Perimeter protection and face detection - 1in/1out audio - 1in/1out alarm - 256GB MicroSD slot (not included) - IP67 protection for outdoor use - IK10 against vandalism - Metal casing - Hyundai 3 Year Extended Warranty!
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible | ||
 |
| ||
 | This camera features a resolution of 4MP! 1/3" 4MP progressive scan CMOS sensor with 2688x1520 pixel resolution | ||
| This camera is equipped with a 2.8-12mm varifocal lens with motorized zoom | ||
 | Stream 1 : 4MP, 1080P, 720P (25fps) Stream 2 : VGA, Q720P (25fps) Stream 3 : 1080P, 720P, VGA, Q720P (10fps) | ||
 | Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
| ||
  | INTELLIGENT FUNCTIONS This camera has smart features:
| ||
| IR illuminator. Maximum range 40 meters. | ||
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  | ||
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  | ||
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | ||
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | ||
 |
This camera is equipped with ROI function (fixed to 1 zone). The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  | ||
 | This camera has 1 audio input and 1 audio output | ||
| Equipped with 1 input and 1 alarm output | ||
 | Protection level IP67 ( Dust / Immersion ) | ||
 | IK10 is the highest level of direct damage protection.
| ||
 |
| ||
 | A 12V DC power supply is required for the operation of this camera (not included)  | ||
 | This product is covered by a 3 Year Warranty! |
Data sheet
| Model: HYU-964 |
| Room |
| 1/3" 4 megapixel CMOS image sensor |
| Resolution: 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
| Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 4MP, 1080P, 720P (25fps) Stream 2: VGA, Q720P (25fps) Stream 3: 1080P, 720P, VGA, Q720P (10fps) |
| Day/night mode with removable mechanical filters (ICR) |
| 0.005 lux F1.6 (color, AGC On), 0 lux IR On |
| IR illumination: 40 meters |
| 2.8~12mm motorized optics |
| View Angle: 95.8°~29.2°(H), 50.6°~16.4°(V), 114.6°~33.4°(D) |
| Image modes: BLC, HLC, WDR 120dB, 3D-DNR |
| 1 fixed ROI zone for main and secondary streams |
| Image rotation, mirroring, privacy masks, saturation, brightness, contrast, sharpness, white balance and gain control adjustable via client software or web browser |
| Perimeter protection: Line crossing detection and intrusion detection with classification of people and vehicles |
| face detection |
| 1 input / 1 audio output |
| 1 input / 1 alarm output |
| MicroSD card slot up to 256GB (card not included) |
| Network interface: RJ45 (10/100M) self-adaptive |
| Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Compliant with ONVIF® (S/G), ISAPI, SDK |
| Up to 32 users and 6 simultaneous views |
| Compatible with IE, Chrome and Firefox browsers |
| Plug&Play connection with NEXTGEN NVR |
| Compatible with DDNS DEMES |
| Power: 12V DC (±25%) / PoE (802.3af) |
| Consumption: 10.5W (12V) / 12.5W (PoE) |
| Operating temperatures -30°C ~ +60°C |
| Humidity: <95% (non-condensing) |
| Degree of protection IP67 |
| Vandal protection IK10 |
| metal case |
| Dimensions: Ø153.3 x 111.6mm |
| Weight: 880g |
