HYU-957 Equivalent SF-IPD835WA-4P-HV - Outdoor Hyundai Security camera - Dome IP POE ONVIF with IR 30M - 1/3" 4MP CMOS, 4 MP 2688x1520 resolution - 2.8mm fixed lens - Triple Stream - H.265 + - Day/Night(ICR), AGC, BLC, HLC, real WDR 120dB, 3D-DNR, 1 fixed ROI zone, 256GB microSD slot (not included), Video Analysis with Perimeter Protection and Facial Detection - RJ45 100M - IP67 protection outdoor - Aluminum case.
FIND INSTALLER

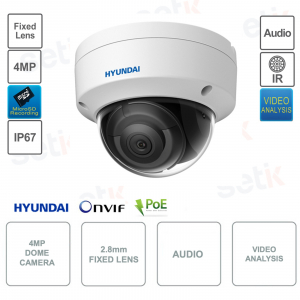

HYUNDAI OUTDOOR IP FIXED DOME CAMERA - 4 MEGAPIXELS - IR 30M - 2.8MM LENS - IP67 OUTDOOR - HYU-957
HYU-957 Hyundai IP fixed dome outdoor camera with 2.8mm lens
4 Megapixel resolution - 2.8mm fixed lens - 1/3" CMOS 4MP 2688x1520 - Triple Stream - H.265+ Smart Codec - IR up to 30 M - AGC, BLC, HLC, WDR real 120dB, 3D-DNR, 1 zone Fixed ROI, 256GB microSD slot (not included), Audio 1in/1out - Video Analysis with Perimeter Protection and Facial Detection - Hyundai 3 Year Extended Warranty! - IP67 outdoor protection - Aluminum casing - RJ45 100M - 32 users and up to 6 simultaneous views.
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
| ||
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports the Onvif standard! | ||
 | This camera features a resolution of 4Megapixel 4 MP! 1/3" 4MP progressive scan CMOS sensor 2688x1520 pixels. | ||
 | This camera features a 2.8mm fixed lens. | ||
 | Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
| ||
| IR illuminator maximum range 30 meters | ||
 | This camera features VIDEO ANALYSIS (IVS): - Perimeter protection - Face recognition | ||
 | True WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  | ||
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  | ||
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | ||
 | ATW (Auto Tracing White Balance), refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature . ATW is a more advanced function than AWB (Auto White Balance), and is very important because without it, images may be completely unusable. Possibility to adjust the color balance manually (MWB) | ||
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | ||
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  | ||
 | This camera has 1 audio input and 1 audio output. | ||
 | Protection level IP67 ( Dust / Immersion ) Ideal solution for video surveillance systems set up in outdoor environments | ||
 | A 12V DC power supply is required for the operation of this camera (not included)  | ||
 | This product is covered by a 3 Year Warranty! |
Data sheet
| Model: HYU-957 |
| CHARACTERISTICS |
| 1/3" 4 megapixel CMOS image sensor |
| Resolution: 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 4MP, 1080P, 720P (25fps) Stream 2: VGA, Q720P (25fps) Stream 3: 1080P, 720P, VGA, Q720P (25fps) |
| Day/night mode with removable mechanical filters (ICR) |
| 0.005 lux F1.6 (color, AGC On), 0 lux IR On |
| IR illumination: 30 meters |
| 2.8mm fixed lens |
| View Angle: 103°(H), 55°(V), 122°(D) |
| Image modes: BLC, HLC, WDR 120dB, 3D-DNR |
| 1 fixed ROI zone for main and secondary streams |
| Image rotation, mirroring, privacy masking, saturation, brightness, contrast, sharpness, white balance and gain control adjustable via client software or web browser |
| Perimeter protection: Line crossing detection and intrusion detection with classification of people and vehicles |
| face detection |
| 1 input / 1 audio output |
| MicroSD card slot up to 256GB (card not included) |
| Network interface: RJ45 (10/100M) self-adaptive |
| Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Compliant with ONVIF® (S/G), ISAPI, SDK |
| Up to 32 users and 6 simultaneous views |
| Compatible with IE, Chrome and Firefox browsers |
| Plug&Play connection with NEXTGEN NVR |
| Compatible with DDNS DEMES |
| Power: 12V DC (±25%) / PoE (802.3af) |
| Consumption: 5W (12V) / 6.5W (PoE) |
| Operating temperatures -30°C ~ +60°C |
| Humidity: <95% (non-condensing) |
| Degree of protection IP67 |
| aluminum case |
| Dimensions: Ø110.8 x 84.7mm |
| Weight: 530g |
