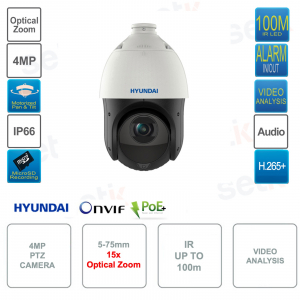

PTZ DOME | HYU-950 - Equivalent SF-IPSD6015IA-4U-AI - Hyundai IP POE+ ONVIF video surveillance camera - Dome PTZ (Pan/Tilt/Zoom) with IR illuminator 100m meters, 1/2.8" CMOS sensor, 4MP resolution and 5 ~ 75mm varifocal lens - 15x optical zoom - Automatic and manual focus - Video Analysis - Triple Stream - Codec H.265+ - AWB, AGC, BLC, WDR 120dB, 3D-DNR, EIS, ROI, Digital Defog - IP66 protection for outdoor use - Audio - Alarm - MicroSD slot up to 256GB (not included) - 12V DC power supply - Includes wall bracket.
FIND INSTALLER
POE+ ONVIF® IP CAMERA - PTZ (PAN/TILT/ZOOM) - 4MP - 5~75 mm 15X OPTICAL ZOOM - VIDEO ANALYSIS - AUDIO - ALARM - HYUNDAI - HYU-950
HYU-950 POE+ ONVIF® PTZ IP Camera Motorized with 15x optical zoom
PTZ (Pan / Tilt / Zoom) - 4MP - 15x 5-75mm Optical Zoom - 1/2.8" CMOS Sensor, 4MP - Triple Stream Video - H.265+ Codec
IR 100m - Day/Night(ICR) - AGC, BLC, HLC - WDR 120dB , 3D-DNR, EIS, ROI on 8 zones - RJ45 100M - Audio 1in/1out - Alarm 1in/1out - Slot for 256GB MicroSD (not included ) - Includes wall bracket.
Extended 3 Year Hyundai Warranty! - IP66 for outdoor - 12V DC power supply and PoE+ -
Video Analysis: Perimeter protection (Line crossing, intrusion, entry and exit from the area) and face capture (up to 5 simultaneously).
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
||||||||||
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation PoE is the first generation technology, PoE+ is the latest standard . PoE+ (802.3at) |
||||||||||
 |
This camera features a resolution of 4MP 2560x1440p Image sensor 1/2.8" 4MP progressive scan CMOS |
||||||||||
 |
This camera features motorized PAN and TILT movement Horizontal positioner: 360° |
||||||||||
 |
15x Optical Zoom + 16x Digital Zoom - 5-75mm |
||||||||||
 |
This camera also features VIDEO ANALYSIS (SMART DETECTION) functions:
|
||||||||||
 |
Quality IR illuminator with a maximum range of 100m |
||||||||||
|
|||||||||||
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
||||||||||
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
||||||||||
|
|||||||||||
|
|||||||||||
|
|||||||||||
 |
IP66: This protection standard protects against dust and water jets (rain) | ||||||||||
 |
A 24VDC power supply is required for the operation of this camera  |
||||||||||
 |
This product is covered by a 3 Year Warranty! | ||||||||||
Data sheet
| Model: HYU-950 |
| Room Specifications |
| 1/2.8" 4 Megapixel CMOS Image Sensor |
| Resolution: 4MP (2560x1440), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288) |
| Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 4MP, 1080P, 1.3MP, 720P (25fps) Stream 2: D1, VGA, CIF (25fps) Stream 3: 1080P, 1.3MP, 720P, D1, VGA, CIF (25fps) |
| Day/night mode with removable mechanical filters |
| 0.005 lux F1.6 (color), 0.001 lux F1.6 (B/W), 0 lux IR On |
| IR illumination: up to 100 meters |
| 15X optical zoom: 5 ~ 75mm |
| View Angle: 55°~4°(H), 33°~2.2°(V), 61.5°~4.6°(D) |
| 2.3 second zoom speed |
| Auto, semi-auto and manual focus mode |
| 16X digital zoom |
| Image modes: BLC, HLC, WDR 120dB, 3D-DNR, EIS (stabilizer), Digital Defog |
| regional focus |
| regional exhibition |
| Supports video sensor, 8 regions of interest (ROI) in each stream and 24 programmable privacy masks |
| Brightness, saturation, contrast, sharpness, gain and white balance adjustments from client software and web browser |
| Perimeter protection: Line crossing, intrusion, area entry, area exit |
| Face Capture: Detect up to 5 faces simultaneously |
| Horizontal positioner: 360° |
| Vertical positioner: -15° ~ 90° with autoflip |
| Manual speed: 0.1° ~ 80°/sec. (H), 0.1° ~ 80°/sec. (V) |
| Preset speed: 80°/sec. (H), 80°/sec. (V) |
| 300 presets, proportional sweep, 3D positioning |
| 1 input / 1 audio output |
| 1 input / 1 alarm output |
| Slot for MicroSD/SDHC/SDXC up to 256GB (card not included) |
| Self-adaptive RJ45 (10/100M) Ethernet network port |
| Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE , Bonjour |
| Compatible with IOS/Android browsers and phones |
| Compliant with ONVIF® (S/G/T), ISAPI, SDK and ISUP |
| Up to 32 users |
| Up to 20 simultaneous views |
| Power: 12V DC / PoE+ (802.3at) |
| Consumption: Maximum 18W |
| Operating temperatures -30°C ~ +65°C |
| Operating humidity up to 90% (non-condensing) |
| Degree of protection IP66 |
| Dimensions: Ø164.5 x 290mm |
| Weight: 2kg |
| Includes wall bracket |
|
Does not include feeders |
