HYU-952 - Equivalent SF-IPB779Z-4Y-AI-25x - POE+ ONVIF IP camera - Outdoor - 4MP resolution - 4.7-118mm motorized lens - 5 video streams - H.265+ - BLC, HLC, WDR 140dB, 3D- DNR, EIS (stabilizer), Defog - IR illuminator 200m - Artificial intelligence with perimeter protection, multiple target detection and face detection - 256GB MicroSD slot (not included) - In aluminum - Audio - Alarm - IP 67 protection for outdoors and IK10 for vandalism.
FIND INSTALLER

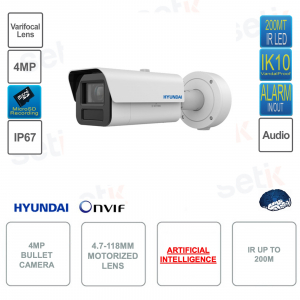

OUTDOOR IP ONVIF® POE+ BULLET CAMERA - VARIFOCAL 4.7-118MM - IP 67 and IK10 - ARTIFICIAL INTELLIGENCE - AUDIO AND ALARM - HYU-952
HYU-952 - HYUNDAI - Outdoor IP ONVIF® POE+ Bullet camera with artificial intelligence - Outdoor.
CMOS sensor 1/2,5" 4MP 2688x1520p - 5 Video Streams - H.265+ - IR illuminator 200m - 4.7-118mm motorized lens - BLC, HLC, WDR 140dB, 3D-DNR, EIS (stabilizer), Defog - ROI 4 zones - Artificial intelligence : Perimeter protection, Face detection, Multiple target detection - 1in/1out audio - 2in/2out alarm - IP67 protection for outdoor use - IK10 against vandalism - 256GB MicroSD slot (not included) - Aluminum body - Integrated heater.
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation This camera supports the PoE+ 802.3at standard |
 |
This camera features a resolution of 4MP 2688x1520p progressive scan |
|
|
IR illuminator. Maximum range 200 meters! |
 |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera is equipped with a 4.7-118mm varifocal motorized lens! |
 |
This camera has smart features:
|
 |
ULTRA WDR up to 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations
|
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  |
 |
This camera features the EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable  |
 |
This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog.   |
 |
This camera has 2 alarm outputs and 2 alarm inputs. |
 |
This camera has 1 audio output and 1 audio input. |
 |
Possibility to insert Micro SD up to a maximum of 256GB (Not Included) |
 |
IP67 : Ensures protection against dust and immersion. |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 |
Aluminum. |
 |
A 12V DC power supply (not included) is required for this camera to operate.  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| model |
| 1/2.5" 4 megapixel CMOS image sensor |
| Resolution: 4MP (2688x1520), 4MP (2560x1440), 1080P (1920x1080), 720P (1280x720), D1 (704x576), VGA (640x480) |
| Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 4MP, 1080P, 720P (25fps) Stream 2: VGA, Q720P (25fps) Stream 3: 1080P, 720P, VGA, Q720P (25fps) Stream 4: D1, VGA (25fps) Stream 5: D1, VGA (25fps) |
| Day/night mode with removable mechanical filters (ICR) |
| 0.009 lux F1.6 (color, AGC On), 0.0018 lux F1.6 (B/W), 0 lux IR On |
| IR illumination: 200 meters |
| 4.7~118mm motorized optics |
| View Angle: 58°~2.8°(H), 32.3°~1.6°(V), 63°~3°(D) |
| Auto, semi-auto, and manual focus modes |
| Image modes: BLC, HLC, WDR 140dB, 3D-DNR, EIS (stabilizer), Defog |
| 4 fixed ROI zones for each stream |
| Video sensor and 8 programmable privacy masks |
| Adjust saturation, brightness, contrast, sharpness, white balance, and gain control via client software or web browser |
| Intelligence IVS: Line crossing detection, intrusion detection, area entry/exit detection (with person and vehicle classification), scene change detection, audio exception detection, blur detection |
| Multiple target detection: Detect up to 60 simultaneous targets, support simultaneous detection and capture of human body (13 features), faces (7 features) and vehicles (2 features) |
| Face Capture: Detects up to 60 simultaneous faces, supports ±60° horizontal and ±30° vertical tilt |
| Face comparison: Up to 10 encrypted face databases of up to 30,000 faces each (150,000 faces total) |
| 1 input / 1 audio output |
| 2 alarm inputs / 2 outputs |
| BNC video output for debugging |
| MicroSD card slot up to 256GB (card not included) |
| Network interface: RJ45 (10/100/1000M) self-adaptive |
| Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 , UDP, Bonjour, SSL/TLS |
| Compliant with ONVIF® (S/G/T), ISAPI, SDK, ISUP |
| Up to 32 users and 20 simultaneous views |
| Compatible with IE, Chrome and Firefox browsers |
| Plug&Play connection with NEXTGEN NVR |
| Compatible with DDNS DEMES |
| Power: 12V DC (±20%) / 24V AC (±20%) / PoE+ (802.3at) |
| Consumption: 12.22W (12V) / 11.49W (24V) / 10.5W (PoE+) |
| Operating temperatures -40°C ~ +60°C |
| Humidity: <95% (non-condensing) |
| Degree of protection IP67 |
| Vandal protection IK10 |
| Incorporates heater |
| aluminum case |
| Dimensions: Ø144.1 x 375.2mm |
| Weight: 2.1kg |
