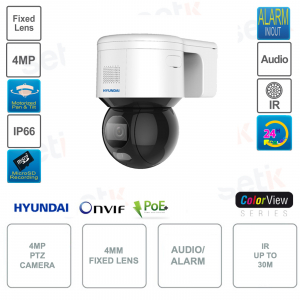

POE IP camera ONVIF® PTZ 4MP - 4mm fixed - IP66 - IR 30m - ColorView

PTZ DOME | HYU-946 Hyundai IP POE+ ONVIF video surveillance camera - Color View Series (24/7 color vision) - Dome PTZ (Pan/Tilt/Zoom) - IR 30m white light - 1/1.8" CMOS - 4MP - 4mm fixed lens - AI: Artificial Intelligence - Triple Stream - Codec H.265+ - AWB, AGC, BLC, WDR 120dB, 3D-DNR, EIS, ROI, Digital Defog - 16x digital zoom - RJ45 100M - RS485 - Outdoor IP66 - Built-in speaker - Audio - Alarm - MicroSD slot up to 256GB (not included) - 12V DC power supply - Power supply included.

Reference: HYU-946

Brand: Hyundai Security

FIND INSTALLER

https://www.setik.biz/en/cameras/8141-hyundai-security-hyu-946-poe-ip-camera-onvif-ptz-4mp-4mm-fixed-ip66-ir-30m-colorview.html

€515.93

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

Videosorveglianza Hyundai Security

Description Product Details Data Sheet Further Details Download

POE+ ONVIF® IP CAMERA - PTZ (PAN/TILT/ZOOM) - COLOR VIEW - 4MP - 4MM - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - HYUNDAI - HYU-946

HYU-946 POE+ ONVIF® PTZ IP Camera with 4mm Color View fixed lens

PTZ (Pan / Tilt / Zoom) - Color View Series - 4MP resolution: 2560x1440p - 4mm lens - 1/1.8" CMOS, 4MP - Triple Stream - Codec H.265+
IR 30m white light - AGC, BLC, HLC - WDR 120dB , 3D-DNR, EIS, ROI - RJ45 100M - RS485 - 16x digital zoom - Audio 1in/1out - Alarm 1in/1out - Built-in speaker - MicroSD slot 256GB ( not included ) - Power supply included - Hyundai 3 Year Extended Warranty! - IP66 (for outdoors) - Power supply 12V DC and PoE+ (802-3at)

Artificial intelligence: Perimeter protection (Line crossing, intrusion, entry and exit from the area) and face capture (up to 5 simultaneously).

Product details

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

This product complies with the Onvif standard

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF® compatible

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

PoE+ 802.3at

This camera has a 4Mpx 2560x1440 resolution

This camera features a resolution of 4MP 2560x1440p.

Image sensor 1/1.8" 4MP progressive scan CMOS!

This camera features motorized PAN and TILT movement

Horizontal positioner: 360°
Vertical positioner: -15° ~ 90° with autoflip
Manual speed: 0.1° ~ 160°/sec. (H), 0.1° ~ 120°/sec. (V)
Preset speed: 240°/sec. (H), 200°/sec. (V)
300 presets, proportional sweep, 3D positioning

This camera has a 4mm fixed lens.

This camera also features ARTIFICIAL INTELLIGENCE functions:

- PERIMETER PROTECTION:
Line Crossing
Intrusion
Entrance to the area
Exit the area

- FACE CAPTURE
Up to 5 faces recognized simultaneously

Quality IR illuminator with a maximum range of up to 30m, with white light.

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Stream 1 : 4MP, 1080P, 1.3MP, 720P (25fps)
Stream 2 : D1, VGA, CIF (25fps)
Stream 3 : 1080P, 1.3MP, 720P, D1, VGA, CIF (25fps)

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

This camera is equipped with an alarm: 1 input and 1 output

	This camera has 1 alarm input and 1 alarm output.
	This camera features the EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable
	3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.
	HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.
	BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations Click to enlarge
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
	Possibility to insert Micro SD ( Max 256GB - not included )

Protezione IP66 contro polvere e getti d'acqua

IP66 : This protection standard protects against dust and water jets (rain)

A 12VDC - PoE+ 802.3at power supply is required for the operation of this camera
12V DC power supply

This product is covered by a 3 Year Warranty!

Data sheet

Model: HYU-946

Room Specifications

1/1.8" 4 Megapixel CMOS Image Sensor

Resolution: 4MP (2560x1440), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)

Video compression H.265+, H.265, H.264+, H.264 and MJPEG

Stream 1: 4MP, 1080P, 1.3MP, 720P (25fps)
Stream 2: D1, VGA, CIF (25fps)
Stream 3: 1080P, 1.3MP, 720P, D1, VGA, CIF (25fps)

24h color mode

0.0005 lux F1.0 (color), 0 lux with white light on

White lighting: up to 30 meters

4mm fixed lens

View Angle: 89°(H), 45°(V), 107°(D)

16X digital zoom

Image modes: BLC, HLC, WDR 120dB, 3D-DNR, EIS (stabilizer), Digital Defog

regional exhibition

Supports video sensor, 8 regions of interest (ROI) in each stream and 24 programmable privacy masks

Brightness, saturation, contrast, sharpness, gain and white balance adjustments from client software and web browser

IVS Intelligence: Line crossing, intrusion, area entry, area exit

Face Capture: Detect up to 5 faces simultaneously

Horizontal positioner: 350°

Vertical positioner: 0° ~ 90°

Manual speed: 0.1° ~ 60°/sec. (H), 0.1° ~ 50°/sec. (V)

Preset speed: 60°/sec. (H), 50°/sec. (V)

300 presets, proportional sweep, 3D positioning

1 input / 1 audio output

incorporates speaker

1 input / 1 alarm output

RS485 port

Power output 12V DC, 60mA

Slot for MicroSD/SDHC/SDXC up to 256GB (cards not included)

Self-adaptive RJ45 (10/100M) Ethernet network port

Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE , Bonjour

Compatible with IOS/Android browsers and phones

Compliant with ONVIF® (S/G/T), ISAPI, SDK and ISUP

Up to 32 users

Up to 20 simultaneous views

Power: 12V DC / PoE+ (802.3at)

Consumption: Maximum 14W

Operating temperatures -30°C ~ +65°C

Operating humidity up to 90% (non-condensing)

Degree of protection IP66

Dimensions: 120(W) x 182(H) x 179.3mm

Weight: 1.125kg

Includes feeder

Further details

Downloads

Leaflet: not available

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
