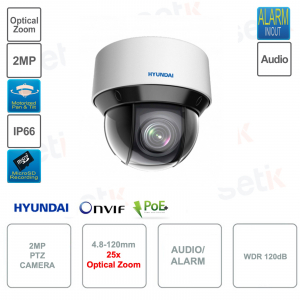

PTZ DOME | HYU-945 - Equivalent SF-IPSD6625ITA-2P - Hyundai IP POE+ ONVIF video surveillance camera - Dome PTZ (Pan/Tilt/Zoom) - IR 50m - 1/2.8" CMOS - 2MP 1080p - Varifocal lens 4.8-120mm - 25x optical zoom - Automatic and manual focus - Triple Stream - Codec H.265+ - AWB, AGC, BLC, WDR 120dB, 3D-DNR, ROI, Digital Defog - IP66 protection for outdoor use - Audio - Alarm - MicroSD slot up to 256GB (not included) - Power supply included - 12V DC power supply.
FIND INSTALLER
POE+ ONVIF® IP CAMERA - PTZ (PAN/TILT/ZOOM) - 2MP - 4.8-120mm - 25X OPTICAL ZOOM - AUDIO - ALARM - HYUNDAI - HYU-945
HYU-945 POE+ ONVIF® PTZ IP Camera Motorized with 25x optical zoom
PTZ (Pan / Tilt / Zoom) - 2MP Full HD 1080p - 25x 4.8-120mm Optical Zoom - 1/2.8" CMOS Sensor, 2MP 1080p - Triple Video Stream - H.265+ Codec
IR 50m - Day/Night(ICR) - AGC, BLC, HLC - WDR 120dB , 3D-DNR, ROI on 8 zones - RJ45 100M - Audio 1in/1out - Alarm 2in/2out - Slot for 256GB MicroSD ( not included ).
Extended 3 Year Hyundai Warranty! - IP66 for outdoor use - 12V DC and PoE+ power supply - Power supply included.
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
||||||||
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation PoE+ 802.3at standard supported. |
||||||||
 |
This camera features a resolution of 2MP Full HD 1080p! Image sensor 1/2.8" 2MP progressive scan CMOS |
||||||||
 |
This camera features motorized PAN and TILT movement Horizontal positioner: 0° ~ 360° |
||||||||
 |
25x Optical Zoom + 16x Digital Zoom - 4.8-120mm |
||||||||
 |
Quality IR illuminator with maximum range up to 50m |
||||||||
|
|||||||||
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
||||||||
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
||||||||
|
|||||||||
|
|||||||||
|
|||||||||
 |
IP66 : This protection standard protects against dust and water jets (rain) | ||||||||
 |
For the operation of this camera a 12VDC - PoE+ (802.3 at) power supply is required. Power supply included in the package. |
||||||||
 |
This product is covered by a 3 Year Warranty! | ||||||||
Data sheet
| Model: HYU-945 |
| Room Specifications |
| 1/2.8" 2 Megapixel CMOS Image Sensor |
| Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288) |
| Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 1080P, 1.3MP, 720P (25fps) Stream 2: D1, VGA, CIF (25fps) Stream 3: 1080P, 1.3MP, 720P, D1, VGA, CIF (25fps) |
| Day/night mode with removable mechanical filters (ICR) |
| 0.005 lux F1.6 (color), 0.001 lux F1.6 (B/W), 0 lux IR On |
| IR illumination: up to 50 meters |
| 25X optical zoom: 4.8 ~ 120mm |
| View Angle: 54.9°~2.7°(H), 31.5°~1.5°(V), 62.3°~3.1°(D) |
| 3.4 second zoom speed |
| Auto, semi-auto and manual focus mode |
| 16X digital zoom |
| Image modes: BLC, HLC, WDR 120dB, 3D-DNR, Digital Defog |
| Regional exposure, regional focus |
| Supports video sensor, 8 regions of interest (ROI) in each stream and 24 programmable privacy masks |
| Brightness, saturation, contrast, sharpness, gain and white balance adjustments from client software and web browser |
| Horizontal positioner: 0° ~ 360° |
| Vertical positioner: -5° ~ 90° |
| Manual speed: 0.1° ~ 300°/sec. (H), 0.1° ~ 160°/sec. (V) |
| Preset speed: 350°/sec. (H), 200°/sec. (V) |
| 300 presets, proportional zoom, 3D positioning |
| 4 scan patterns, 8 rounds (32 presets per round) |
| 1 input / 1 audio output |
| 2 alarm inputs / 2 outputs |
| Slot for MicroSD/SDHC/SDXC up to 256GB (cards not included) |
| Self-adaptive RJ45 (10/100M) Ethernet network port |
| Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE , Bonjour |
| Compatible with IOS/Android browsers and phones |
| Compliant with ONVIF® 18.12 (S/G/T), ISAPI, SDK and ISUP |
| Up to 32 users |
| Up to 20 simultaneous views |
| Power: 12V DC / PoE+ (802.3at) |
| Consumption: Maximum 18W |
| Operating temperatures -30°C ~ +65°C |
| Operating humidity up to 90% (non-condensing) |
| Degree of protection IP66 |
| Dimensions: Ø169 x 161mm |
| Weight: 2.45kg |
|
Includes feeder |
