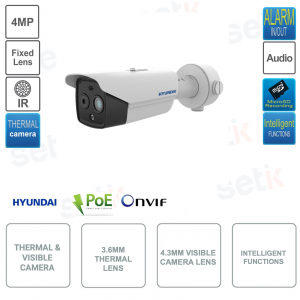

HYU-936 - Hyundai - POE ONVIF IP camera - Thermal and visible - 3.6mm thermal lens - 256x192 thermal resolution - FPA thermal imaging sensor - 4.3mm visible lens - 1/2.7" 4MP visible camera CMOS - IR 30m - Dual Stream - H.265 codec - Intelligent functions: people and vehicle detection, 4 VCA rules, 3 rulers - WDR 120dB - Audio - Alarm - Metal - RJ45 100M - RS485 - MicroSD 256GB slot - Includes wall bracket and tube base
FIND INSTALLER
OUTDOOR THERMAL AND VISIBLE IP POE OVIF BULLET CAMERA - ALARM - RULES - AUDIO - ALARM - VCA - HYUNDAI - HYU-936
IP POE ONVIF® - Thermal + visible - Thermal optics: 3.6mm - Res. thermal: 256x192 - FPA thermal imaging sensor - Visible lens: 4.3mm - CMOS 1/2.7" 4MP progressive - IR 30m - Dual Stream Video - Codec H.265 - Intelligent functions : people and vehicle detection, 4 VCA rules, 3 rulers - WDR 120dB - Audio - Alarm - In metal - RJ45 100M - RS485 - 256GB MicroSD slot (not included) - Includes wall bracket + tube base.
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
| THERMAL DETECTION |
|---|
|
|
 |
This camera is equipped with a fixed 3.6mm thermal lens People detection : detection (150m), recognition (38m), identification (19m) Vehicle Detection : Detection (460m), Recognition (112m), Identification (56m) Visible fixed lens: 4.3mm. |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 |
This camera is a THERMAL CAMERA with integrated GPU .
|
|
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 |
This camera has advanced intelligent features:
|
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light. The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.  |
 |
This camera features 1 Input + 1 Audio Output |
 |
This camera has 2 alarm inputs and 2 alarm outputs |
 |
Possibility to insert Micro SD up to a maximum of 256Gb (not included) |
 |
6KV lightning protection. |
 |
IP67, ideal for outdoor use: Guarantees protection against dust and water jets (rain) |
 |
Device Power: 12V DC (±25%), PoE (802.3af, Class 3) |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| model | HYU-936 |
|
Thermal chamber |
|
| Vanadium Oxide Uncooled Focal Plane Array (FPA) Thermal Imaging Sensor | |
| 256x192 thermal resolution | |
| Pixel interval: 12μm | |
| Thermal Sensitivity (NETD): ≤40mk (@25°C, f/1.0) | |
| Spectrum Range: 8μm ~ 14μm | |
| Focal length (thermal): 3.6mm | |
| Angle of view (thermal): 50° x 37.3° | |
| 0.3 meter minimum focus distance | |
| Effective distance on people: Detection (150m), recognition (38m), identification (19m) | |
| Effective distance in vehicles: Detection (460m), recognition (112m), identification (56m) | |
| Viewable Camera | |
| Image sensor (visible camera) CMOS 1/2.7 Progressive Scan 4 megapixels | |
| Effective pixels: 2688x1520 | |
| 30 meter infrared illumination | |
| 0.0176 lux F2.25 (colour), 0.0035 lux F2.25 (B/W) | |
| Focal length (visible optics): 4.3mm | |
| Angle of view (visible optics): 84° x 43.1° | |
| WDR 120dB | |
| Displays the partial image of the thermal channel on the full screen of the optical channel | |
| Shows the details of the optical channel in the thermal channel | |
| Supports target coloring in hot white and hot black mode | |
|
Smart Features |
|
| Supports 4 types of VCA rules (intrusion, line crossing, region entry and region exit), maximum 8 rules | |
| Support 3 types of temperature measurement rulers, 21 rulers (10 points, 10 regions, and 1 line) | |
| Temperature range -20°C ~ +150°C | |
| ±8°C temperature accuracy | |
|
IP communication and integration |
|
| Compression formats: H.265/H.264/MJPEG | |
| Stream 1 thermal camera: 1280x720, 704x576, 640x512, 320x240 (25 ips) | |
| Stream 2 thermal cameras: 704x576, 640x512, 320x240 (25 fps) | |
| Stream 1 viewable camera: 2680x1520, 1920x1080, 1280x720 (25 fps) | |
| Stream 2 viewable camera: 704x576, 352x288 (25 fps) | |
| Audio compression: G.722.1/G.711u/G.711a/MP2L2/G.726/PCM | |
| 1 RJ45 10/100M auto-adaptive port | |
|
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP , SRTP |
|
| Up to 20 simultaneous views | |
| Up to 32 users, 3 levels: administrator, operator, user | |
| Compatibility: ONVIF® S/G, ISAPI, SDK and third-party management gateway | |
| Compatible with IE11, Chrome57.0+, Firefox52.0+ browsers | |
| RS485 half-duplex port | |
| 2 alarm inputs / 2 outputs | |
| 1 input / 1 audio output | |
| MicroSD/SDHC/SDXC card slot (up to 256 GB), with support for manual or alarm recording | |
|
electrical and environmental |
|
| Power: 12V DC (±25%), PoE (802.3af, Class3) | |
| Consumption: Max. 6W (6.5W PoE) | |
| Operating temperatures -40°C ~+65°C | |
| Relative humidity: ≤95% (non-condensing) | |
| Degree of protection IP67 | |
| 6KV lightning proof | |
|
physical characteristics |
|
| metal case | |
| Dimensions: 106.1 (W) x 107 (H) x 321.3 mm | |
| Weight: 1.55kg | |
| Includes wall bracket and tube base | |
|
Notes : Effective distance values ??shown are nominal values ??and should be used as an estimate. Consult with your commercial to know the recommended detection distances with our Vaelsys perimeter system. |
|
