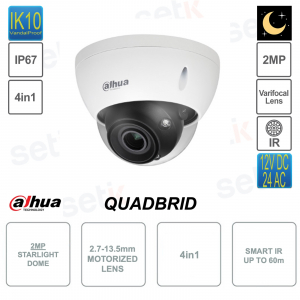

Dahua 4in1 Dome Camera - Varifocal 2.7-13.5mm - 2MP Starlight - Smart IR 60m

Dahua 4in1 Dome Camera - Varifocal 2.7-13.5mm - 2MP Starlight - Smart IR 60m
-57%

Surveillance camera Dahua HAC-HDBW3231E-Z-DP - 4in1 CVI-CVBS-AHD-TVI switchable - For outdoor use - 2MP FULL HD, 2MP CMOS sensor Starlight technology and 2.7-13.5mm varifocal lens with motorized zoom - Smart IR illuminator up to at 60m , 1 Input + 1 Audio output, 1 Input + 1 Alarm Output - Day/Night (ICR), BLC, HLC - AWB - 3DNR - WDR 120dB - Defog - IP67 and IK10 - For ceiling, wall or pole.



Reference: HAC-HDBW3231E-Z-DP

Brand: Dahua

FIND INSTALLER

€233.97

€544.12 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA 4IN1 HD CVI FULL HD CAMERA 2.7-13.5MM MOTORIZED ZOOM - AUDIO AND ALARM - HAC-HDBW3231E-Z-DP

Prodotto marchiato Dahua
4in1 Dome outdoor camera - Dahua - HAC-HDBW3231E-Z-DP
2MP FULL HD 1080P - 2.7-13.5 lens with motorized zoom - CMOS Starlight 2MP
Starlight technology: Color night vision - Smart IR 60m - BLC - HLC - WDR 120dB - 3DNR - Mirror Mode - Privacy Mask - Electronic Defog - Audio 1in/1out & Alarm 1in/1out - Power supply not included - 24 months warranty

Product details

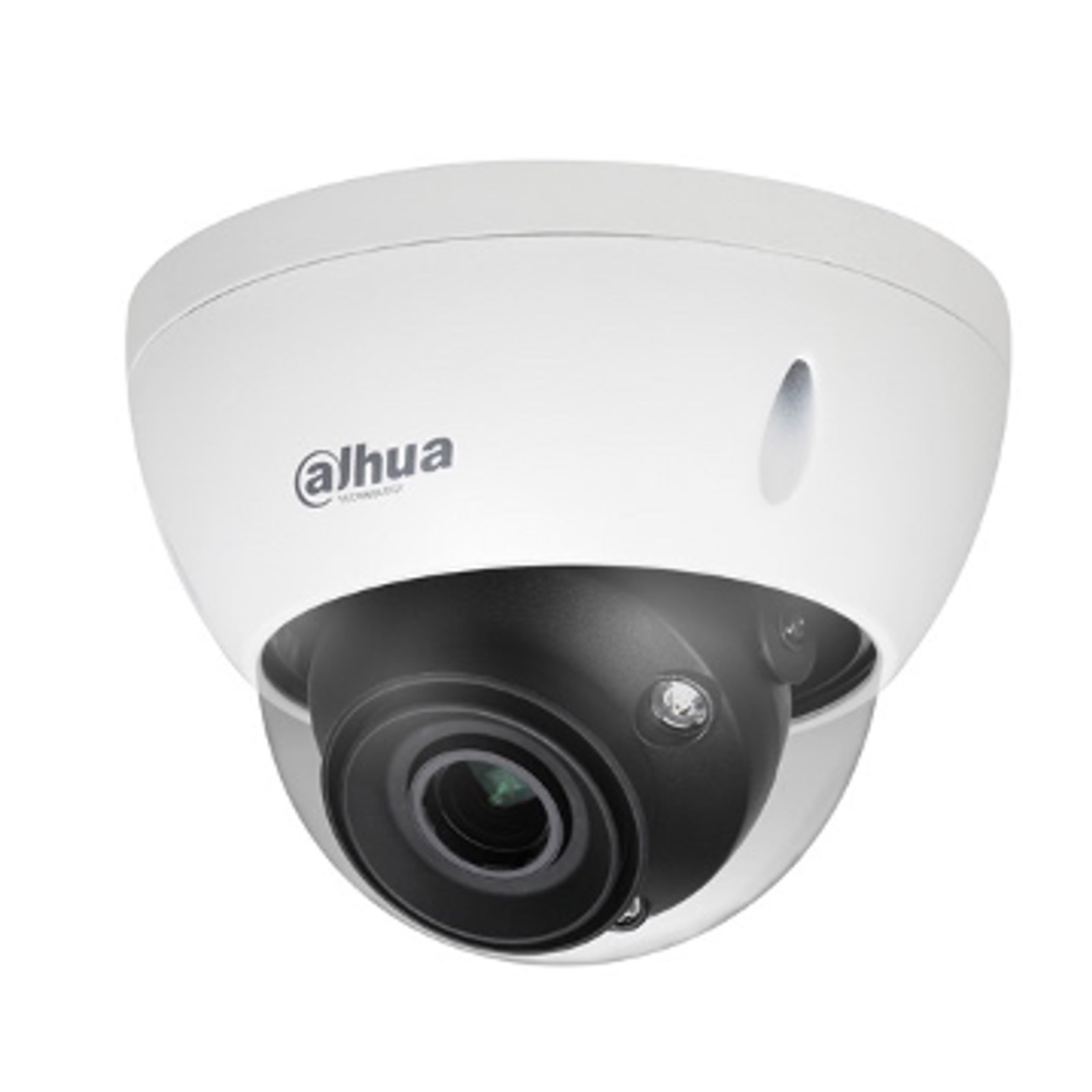

Telecamera HD-CVI Dome con risoluzione 1080P e ottica varifocale 2.7-12mm con zoom motorizzato
  • 4in1 camera - Dahua - HAC-HDBW3231E-Z-DP
  • 2Megapixel 1080P FULL HD resolution
  • Varifocal lens 2.7-13.5 with motorized zoom
  • 2MP CMOS sensor with Starlight technology
  • Starlight technology: Color night vision
  • Smart IR illuminator (with range up to 60m)
  • WDR 120dB
  • Day/Night (ICR), BLC, HLC, AGC, 3DNR, electronic defog
  • 1 Input + 1 Audio Output
  • 1 Input + 1 Alarm Output
  • 1 BNC HDCVI High Definition Video Output + 1 BNC CVBS Output
  • Test port
  • Upgrade port
  • IP67 protection (dust / immersion)
  • IK10 protection (vandalism)
  • Power supply NOT included
  • Power supply: 12VDC ± 10%; 24VAC ± 25%
  • Dimensions: Φ159.1mm × 118.1mm
  • Installation: wall, ceiling or pole
  • Weight: 0.9Kg
  • 24 months warranty

Data sheet

HAC-HDBW3231E-Z-DP

Room

Image Sensor

1/2.8" CMOS

Effective Pixels

1945(H)×1097(V), 2.1MP

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1.3s~1/30000s

NTSC: 1s~1/30000s

Minimum Illumination

0.005Lux/F1.4, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 50m (164feet)

IR On/Off Control

Auto / Manual

IR LEDs

3

lens

LensType

Motorized lens / Auto iris

Mount Type

Board-in

Focal Length

2.7-12mm

Max Openings

F1.4

angle of view

H: 95°~36°

Focus control

Auto / Manual

Close Focus Distance

2MP CMOS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

Varifocal optics with motorized zoom

2.7-13.5mm varifocal lens with motorized zoom

IR illuminator 20 MT

IR illuminator with 2 leds and approximate range of 60 meters

BENEFITS:

  • - High brightness
  • - Reduced energy consumption
  • - Small size
  • - Long duration


This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.
Tecnologia Smart IR

Ingressi e Uscite Allarme This camera is equipped with 1 ALARM INPUT + 1 OUTPUT Ingresso Audio

This camera has 1 AUDIO IN and 1 AUDIO OUT

Allows you to adapt the lens to Night/Day vision

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.
Immagine esempio funzione WDR 120db BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. 3d-dnr_system

3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light.

Materiale con cui è stato creato il dispositivo This camera was made of METAL. IP66 Waterproof. Protection from water jets and dust

This camera is IP67 protected against water jets and dust.


IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

Power supply NOT included.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.

Résolution Area CCTV

Downloads

Download the English brochure

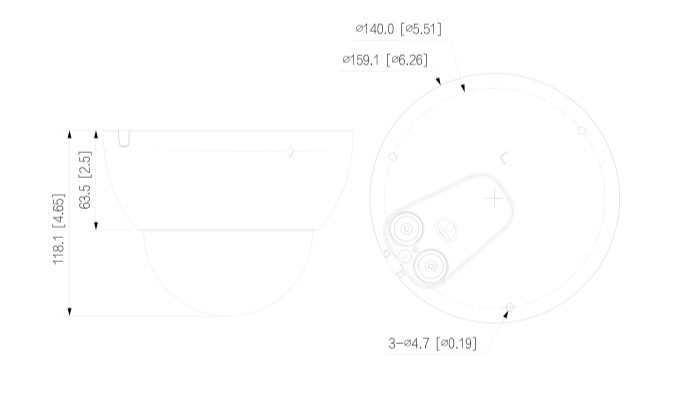

Schema con le dimensioni della telecamera Dahua HAC-HDBW3231E-ZH
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
