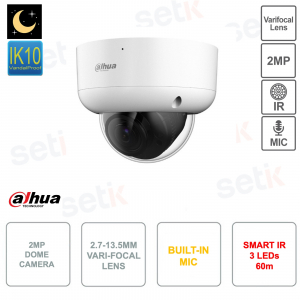

2MP Dome Starlight 4in1 camera - Varifocal 2.7-13.5mm - WDR 130dB - IP67 - Microphone

2MP Dome Starlight 4in1 camera - Varifocal 2.7-13.5mm - WDR 130dB - IP67 - Microphone
QUESTIONS ABOUT THE PRODUCT

 
Optic calculation
IN PROMOTION -58%

HAC-HDBW2241RA-ZA-S2 Dahua HD CVI outdoor camera with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG 1080P 2MP FULL HD - S2 Version - 2.7-13.5mm varifocal lens with motorized zoom and 2MP sensor with Starlight Technology . Built-in microphone , Smart IR illuminator up to 60 meters with 3 LEDs , Day/Night (ICR), OSD, WDR 130dB. IP67 protection from outdoor, IK10 from vandalism - Metal body.

Reference: HAC-HDBW2241RA-Z-A-S2

Brand: Dahua

EAN: 6923172524492

FIND INSTALLER

€128.61

€306.22 -58%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno

4IN1 HDCVI / HDTVI / AHD / ANALOG DOME CAMERA FULL HD 1080P - VARIFOCAL 2.7-13.5MM - S2 VERSION - DAHUA- HAC-HDBW2241RA-ZA-S2

Made by Setik
Dahua HD CVI outdoor camera - HAC-HDBW2241RA-ZA-S2
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG - 1080P 2MP FULL HD Resolution
2.7-13.5mm Varifocal lens with motorized zoom - 2MP CMOS sensor with Starlight Technology - Smart IR 60m with 3 LEDs - WDR130dB - 3DNR - BLC - HLC - AGC - Day/Nioght (ICR) - INTEGRATED MICROPHONE - IP67 protection for outdoor and IK10 against vandalism - Power supply NOT included - 24 months warranty

Product Details

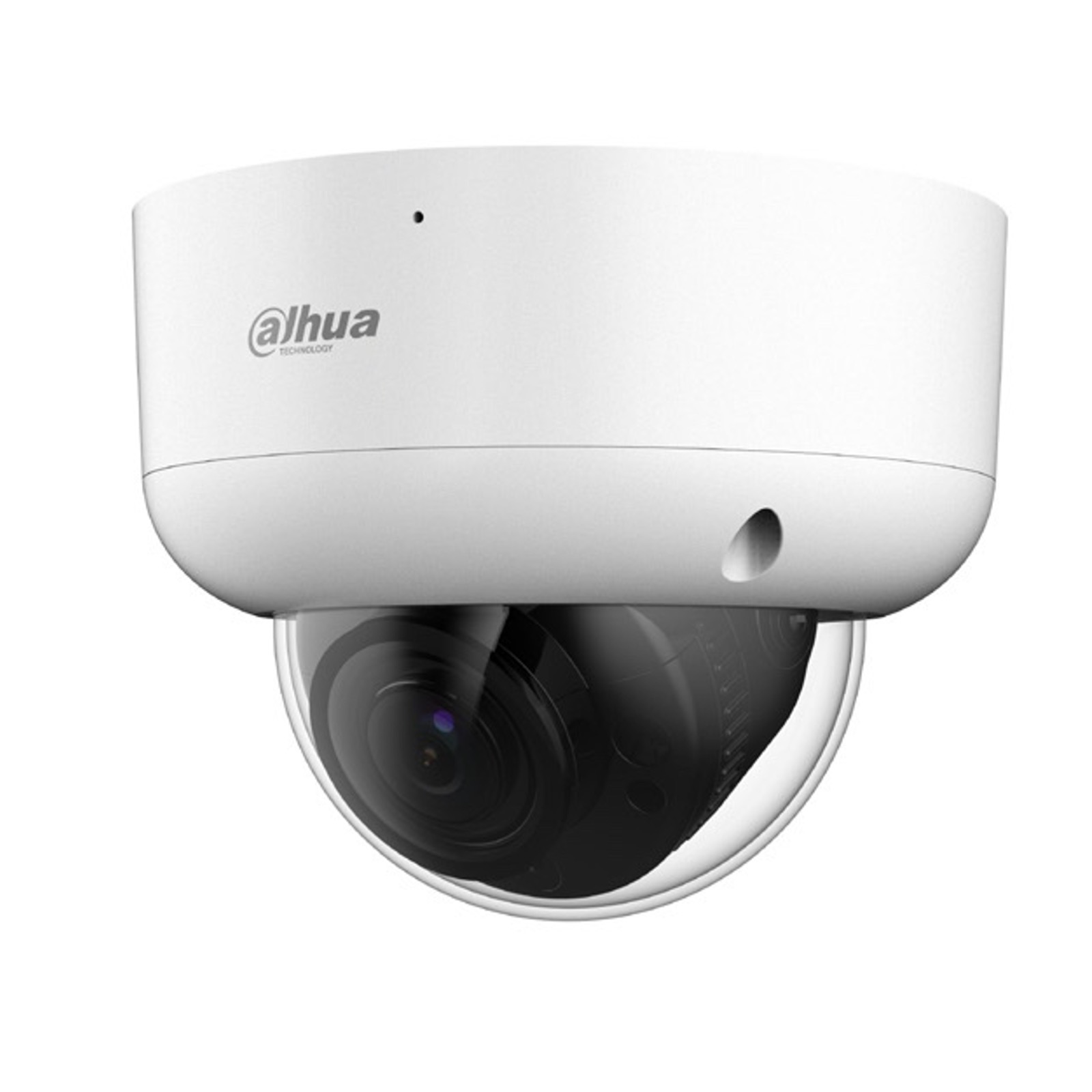

Telecamera Dome con risoluzione 1080P e ottica varifocale 2.7-13.5mm motorizzata. IP67, Audio
  • - Dahua HD CVI 4in1 camera - HAC-HDBW2241RA-ZA-S2
  • - 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
  • - S2 version
  • - Switchable technologies via DIP Switch
  • - 2MP CMOS Image Sensor with Starlight Technology!
  • - Starlight technology: Color vision even at night
  • - 2.7-13.5mm varifocal lens with motorized zoom
  • - Integrated microphone
  • - BNC high definition video output / BNC (DIP Switch)language video output
  • - Smart IR illuminator with a maximum range of 60 meters with 3 LEDs
  • - WDR(130dB) , Day/Night(ICR), BLC / HLC / AGC / 3DNR
  • - Protection IP67 ( Dust / Immersion ), IK10 (Vandal acts)
  • - Material: metal along the entire shell
  • - 12V DC power supply
  • - 12V DC power supply not included
  • - Suitable for indoor and outdoor environments
  • - Size: φ126mm×100mm
  • - Operating temperature: –30°C~+60°C
  • - 24 months warranty

Data sheet

HAC-HDBW2241RA-ZA-S2

Room

Image Sensor

2MP CMOS

Max.Resolution

1920(H)×1080(V)

Pixels

2MP

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/25s–1/100,000s

NTSC: 1/30s–1/100,000s

S/N Ratio

> 65dB

Min Illumination

0.001 Lux/F1.5, 30 IRE, 0 Lux IR on

Illumination Distance

60m (196.9ft)

Illuminator On/Off Control

Car

Illuminator Number

3 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–80°

Rotation: 0°–355°

lens

LensType

Motorized Vari-focal

Auto Focus

Yes

Mount Type

φ14

Focal Length

2.7mm-13.5mm

Max. Openings

F1.5

Field of View

Diagonal: 131°~35°

Horizontal: 108°~30°

Vertical: 56°~17°

Iris type

Fixed

Close Focus Distance

0.8m (2.6ft)

Video

Frame Rates

CVI:

PAL: 1080p@25fps;

NTSC: 1080p@30fps;

AHD:

PAL: 1080p@25fps;

NTSC: 1080p@30fps;

TVI:

PAL: 1080p@25fps;

NTSC: 1080p@30fps;

CVBS:

PAL: 960×576H;

NTSC: 960×480H

Resolution

1080p (1920×1080); 960H (960×576/960×480)

Day/Night

Auto switch by ICR

BLC extension

BLC/WDR/HLC

wdr extension

130dB

White Balance

Auto/WB area

Gain Control

Car; manual

Noise reduction

3D NO

Smart IR

Yes

Mirrors

Yes

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio inputs

One channel built-in mic

Power

Power Supply

12V ±30% DC

power consumption

Max 6.9W (12V DC, IR on)

environment

Operating Temperature

–30°C~+60°C (-22°F to 140°F); ? 95% (noncondensing)

Storage Temperatures

–30°C~+60°C (-22°F to 140°F); ? 95% (noncondensing)

Protection Grade

IP67; IK10

structure

Casing

Metal throughout the whole casing

Room Dimensions

φ126mm × 100mm (φ5" × 3.9")

Net Weight

0.63kg (1.4lb)

Gross Weight

0.81kg (1.8lb)

Further details

Tecnologia Quadribrida This camera is a FOUR HYBRID (4 Integrated Technologies)
These cameras are Analogue , Ahd , Hdcvi and Hdtvi at the same time .

Questa telecamera ha una risoluzione FULL HD di 1920x1080 This camera features a resolution of 2Megapixel FULL-HD 1080P :
Ottica varifocale 2.7-13.5mm motorizzata

This camera features 2.7-13.5mm varifocal lens with motorized zoom

Motorized zoom example:

2MP CMOS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Comparativa starlight
IR illuminator 20 MT

IR illuminator with 3 leds and approximate range of 60 meters

BENEFITS:

  • - High brightness
  • - Reduced energy consumption
  • - Small size
  • - Long duration


This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.
Tecnologia Smart IR
ULTRA WDR up to 130dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Allows you to adapt the lens to Night/Day vision

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations


Click to enlarge
AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
12VDC_Supply

12V DC power supply NOT included

Diet

Diet

12V ±30% DC

You consume

Max 6.9W (12V DC, IR on)


Materiale con cui è stato creato il dispositivo This camera was made of metal along the entire body.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.

Downloads

Download the English brochure

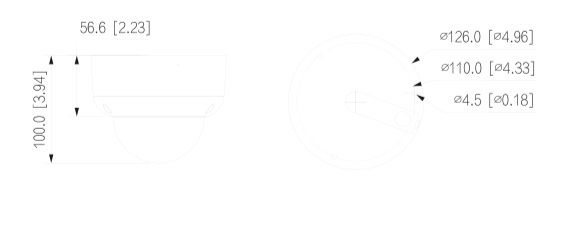

Schema dimensioni telecamera videosorveglianza HAC-HDBW2241R-Z-POC Dahua
