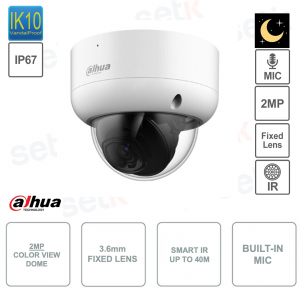

HAC-HDBW2241EA-A-S2 Dahua Outdoor camera with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG 1080P 2MP FULL HD - S2 Version - 3.6mm fixed lens and 2MP CMOS sensor with Starlight Technology . Built-in microphone , Smart IR up to 40 Meters , Day/Night (ICR), WDR 130dB - BLC - HLC - AWB . AGC - 3DNR - IP67 protection for outdoor use - IK10 against vandalism - In metal.
FIND INSTALLER
4IN1 HDCVI / HDTVI / AHD / ANALOG DOME CAMERA FULL HD 1080P - MICROPHONE - 3.6MM LENS - S2 VERSION - DAHUA - HAC-HDBW2241EA-A-S2
Dahua 4in1 outdoor camera - HAC-HDBW2241EA-A-S2
S2 version - 3.6mm fixed lens - 2MP CMOS sensor with Starlight Technology - BLC - HLC - AGC - 3DNR - AWB - WDR 130dB
Integrated microphone - Power supply NOT included - 24 months warranty - IP67 protection for outdoor use - IK10 against vandalism - In metal.
Product Details
- - Dahua HD CVI 4in1 camera - HAC-HDBW2241EA-A-S2
- - S2 version
- - 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable via DIP Switch on BNC port
- - 2MP CMOS Image Sensor with Starlight Technology!
- - Starlight technology: Color vision even at night
- - 3.6mm fixed lens
- - Audio Input: 1 built-in microphone equipped on board!
- - Smart IR illuminator with a maximum range of 40 meters.
- - WDR(130dB) , Day/Night(ICR), BLC / HLC / AGC / 3DNR
- - 1 BNC Video Out High definition / CVBS video out (Can switch)
- - Protection IP67 ( Dust / Immersion ), IK10 (Vandal acts)
- - Material: metal for the whole shell
- - 12V DC power supply not included
- - Suitable for indoor and outdoor environments
- - Dimensions: Ø112mm × 89.1mm
- - Item Weight: 0.33Kg
- - Operating temperature: –40 °C to +60 °C
- - 24 months warranty
Data sheet
| HAC-HDBW2241EA-A-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
2MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max.Resolution |
1920(H)×1080(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixels |
2MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressives |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/25s–1/100,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
> 65dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min Illumination |
0.001 Lux/F1.6, 30 IRE, 0 Lux IR on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
40m (132.1ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Car; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
3 (IR light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–355° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LensType |
Fixed lens |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.6mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Openings |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This camera features a resolution of 2Megapixel FULL-HD 1080P.
This camera features a 3.6mm fixed lens.
2MP CMOS sensor with STARLIGHT technology.
Low brightness, color vision even in night mode.
Normally, when entering night mode, the color vision becomes black/white.
With the SENSOR present, night shots will be clear and in colour
Infrared illuminator with REAL range up to 40m night vision
3 LED illuminators.
This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.
ULTRA WDR up to 130dBWDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Allows you to adapt the lens to Night/Day vision
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
| 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light. |
| This camera is equipped with an onboard microphone . |
Protection level IP67 ( Dust / Immersion )
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
12V DC power supply NOT included
This camera was made of metal.
This product is covered by a 24 month guarantee.
