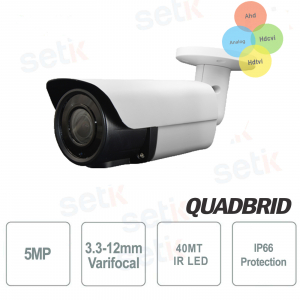

HYU-471N Hyundai PRO series 4 in 1 bullet video surveillance camera with IR 20 LED 40M outdoor illuminator, 1 / 2.5 "CMOS sensor, 5 MP 5Megapixel resolution and 3.3-12mm varifocal lens. 4 Technologies in 1 HDTVI / HDCVI / AHD / ANALOG 960H , Day / Night (ICR), OSD, AWB, AGC, BLC, Defog, IP66. Color White
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
4 IN1 BULLET CAMERA HYUNDAI 5 MEGAPIXEL 3.3-12MM - HDTVI / HDCVI / AHD / 960H - IR 40 METERS
Quad hybrid "HDTVI / HDCVI / AHD / ANALOG 960H" - Resolution 5 MP - Lens 3.3-12mm
Smart IR 20 LED 40MT illuminator - ICR filter
Hyundai 3 Year Extended Warranty! - IP66 protection (Rain / Dust)
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
4 TECHNOLOGIES IN 1: This camera features 4 technologies in 1 : interchangeable HDTVI / HDCVI / AHD / 960H (ANALOG). Switch Technologies: Technologies switchable via OSD |
|
5MP resolution, means 12 times the resolution of a common D1 camera : |
|
This camera is equipped with a 3.3-12mm varifocal lens | |
Smart IR illuminator with 20 LEDs and a maximum range of about 40 meters |
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, BLC, HLC, etc. OSD via coaxial (CVI, TVI, AHD mode only, up to 300 meters) |
|
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog |
|
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
|
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, number plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations |
|
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast. |
|
IP66: Guarantees protection from dust and water jets (rain) | |
A 12VDC power supply is required for the operation of this camera (not included) |
|
This product is covered by a 3 Year Warranty! |
Data sheet
HYU-471N |
4-in-1 bullet camera with infrared illumination up to 40 meters |
5 megapixel Sony 1 / 2.5 "CMOS sensor |
Digital resolution HDCVI: 4MP (2560x1440) @ 25/30 ips HDTVI: 5MP (2560x1936) @ 20 ips AHD: 5MP (2560x1936) @ 20 ips Analogue CVBS: 960H @ 25/30 ips |
4 in 1 output (switchable by OSD): HDCVI / HDTVI / AHD / CVBS 960H |
Removable mechanical filter |
0.02 lux F1.2 color (AGC On) / 0 lux IR On |
Optical glass window with increased light transmission. |
Smart IR: 20 SMD LED arrays, 30 ~ 40 meters |
3.3 ~ 12mm varifocal lens |
OSD through of coax (only in CVI, TVI, AHD mode, range of 300 meters) |
Automatic white balance |
Automatic gain control |
Backlight compensation: BLC, HLC |
Digital WDR |
2D / 3D-DNR |
Defog, mirror mode |
Video sensor |
Power supply: 12V DC (± 10%) |
Power consumption: <8W |
Working temperature: -20 ° C ~ + 60 ° C |
Relative humidity: 10% ~ 90% |
Degree of protection IP66 |
Metal housing |
Dimensions: 262.3 x 75 x 73 mm |
Further details
