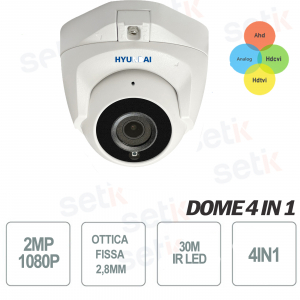

HYUNDAI 2 MEGAPIXEL 4 IN1 DOME CAMERA - IR 18 LED 30 METERS
HYU697N Hyundai 4-in-1 Dome Outdoor CameraHyundai 3 Year Extended Warranty! - IP65 protection (Dust / Water Jets)
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | 4 TECHNOLOGIES IN 1: This camera features 4 technologies in 1 : interchangeable HDTVI / HDCVI / AHD / 960H (ANALOG).
Switch Technologies: Switchable technologies via OSD |
 | This camera features a resolution of 2Megapixel 2 MP! 1 / 2.9 " Sony 2Megapixel CMOS sensor |
|
Smart IR illuminator with 18 LEDs and a maximum range of 30 meters! |
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
 | Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | IP66: Guarantees protection from dust and water jets (rain) |
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| HYU-697N |
| Room |
| 1 / 2.9 "2 megapixel CMOS sensor |
| Digital resolution: 1080P (1920x1080) |
| Frames per second: 25 ips @ 1080P (CVI / TVI / AHD) |
| 4-in-1 video output (switchable via DIP switch) |
|
0.02 lux F1.2 color / 0 lux IR On |
Smart IR: 18 SMD leds, up to 30 meters |
2.8mm Fixed Lens |
| Multi-language OSD via coaxial (up to 300 meters) |
| Picture modes: BLC, digital WDR, 2D / 3D-NR |
| Auto white balance |
| Automatic gain control |
| Power: 12V DC (± 10%) |
| Consumption: <5W |
| Operating temperature -20 ° C ~ + 60 ° C |
| Relative humidity: 10% ~ 90% (non-condensing) |
| Degree of protection IP66 |
| lightning-proof |
