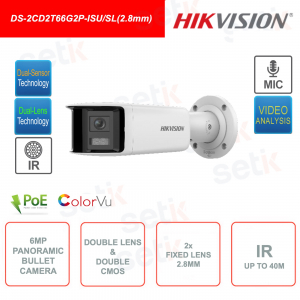

6MP PoE IP Bullet Panoramic Camera - Double 2.8mm lens and dual CMOS sensor - IR 40m - Video Analysis
Hikvision ColorVu | DS-2CD2T66G2P-ISU / SL (2.8mm) - Hikvision IP PoE Bullet Panoramic Camera - 6MP 3632 × 1632 - Double High quality 1 / 2.5 " 0.0003Lux CMOS sensor with ColorVu Technology (24/7 color vision) and 2.8mm fixed lens - IR illumination up to 40m with additional light - Deep Learning with line crossing and motion detection - WDR 120dB , ROI, BLC, HLC, 3DNR - Slot for MicroSD 256GB (not included) - Video H.265 + - Dual Stream - Reset button - Alarm - Audio - Microphone - Loudspeaker - IP67 protection - For video surveillance systems set up outdoors.
DS-2CD2T66G2P-ISU / SL (2.8mm) | COLORVU IP POE 6MP BULLET PANORAMIC CAMERA - DOUBLE LENS 2.8MM - DOUBLE CMOS SENSOR - OUTDOOR - IR 40M - IP67 - VIDEO ANALYSIS
![hikvision_logo_grey.jpg](https://www.setik.biz/storage/images/Articoli/hikvision_logo_grey.jpg)
Hikvision IP PoE Bullet Panoramic Camera - 6MP - DS-2CD2T66G2P-ISU / SL (2.8mm)
Resolution 6MP 3632 × 1632 - Double 2.8MM fixed lens - Double CMOS sensor 1 / 2.5 " 0.0003 Lux with ColorVu - IR illumination 40m
ColorVu technology: 24/7 color vision even at night! - WDR 120DB - Deep Learning and Perimeter Protection - BLC - HLC - 3DNR - ROI - Microphone - Speaker - 1in / 1out audio - 1in / 1out alarm - 256GB MicroSD slot (not included) - IP67 outdoor protection - Power supply not included - Warranty 24 months
ColorVu Technology: VIVID DETAILS EVEN AT NIGHT HIGH BRIGHTNESS SENSOR WITH AMAZING QUALITY ACUSENSE TECHNOLOGY - EXTREME INTELLIGENCE SML TECHNOLOGY - WHITE LED ON BOARD SIMPLIFIED START-UP |
![DS-2CD2T87G2-L (4mm) _BANNER](https://cdn.setik.biz/storage/images/Articoli/8057_2230_55_001.jpg)
POE (Power Over Ethernet):The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
Resolution:This camera has a resolution of 6Megapixels 6MP ( 3632 × 1632 ), in Panoramic format. |
Dual CMOS Sensor: This camera is equipped with a double 1 / 2.5 "CMOS sensor !! |
Double optics: This camera is equipped with a fixed 2.8mm dual lens |
Bright lens:This camera features bright F1.0 aperture lens and 2.8mm dual fixed lens.The camera will collect much more light ensuring color shots even in the dark |
Advanced Sensor and ColorVu Technology:![]() ![]() |
Compression H.265 +![]()
A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
IR Infrared Illuminator | White Light:
Lighting range up to 40m! |
VIDEO ANALYSIS (DEEP LEARNING): This camera is equipped with DeepLearning functions: - Line Crossing detection - Motion Detection |
HIK-CONNECTHik Connect allows you to control the device remotely |
ROI (Region Of Interest):The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image. ![]() |
Day / Night:Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
MICRO SD SLOT:256GB Micro SD memory card slot ( NOT INCLUDED ) |
BLC (Back Light Compensation):is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
AGC (Automatic Gain Control):integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
3D-DNR:More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions. |
WDR 120dB: WDR Wide Dynamic Range 120dB: |
MICROPHONE: This camera is equipped with on-board microphone! |
AUDIO AND ALARM: This camera has 1 output and 1 alarm input. It is also equipped with a loudspeaker, and 1 audio input and 1 output. |
Diet:A 12V DC power supply is required for the operation of this camera (not included)![]() |
IP67 protection:Protection from dust and temporary immersions. Suitable for outdoor environments. |
Data sheet
DS-2CD2T66G2P-ISU / SL (2.8mm) | |
Room |
|
Image Sensor |
2 × 1 / 2.5 "Progressive Scan CMOS |
Max. Resolution |
3632 × 1632 |
Min. Illumination |
Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Shutter Time |
1/3 s to 1 / 100,000 s |
Day & Night |
IR cut filter |
Angle Adjustment |
Pan: 0 ° to 355 °, tilt: 0 ° to 90 °, rotate: 0 ° to 360 ° |
Lens |
|
Lens Type |
Fixed focal lens, dual lens, 2.8 mm |
Focal Length & FOV |
2.8 mm, horizontal FOV: 180 °, vertical FOV: 81 ° |
Environment |
CE-RoHS: 2011/65 / EU, WEEE: 2012/19 / EU, Reach: Regulation (EC) No 1907/2006 |
Protection |
IP67: IEC 60529-2013 |
Further details
![](https://cdn.setik.biz/storage/images/Articoli/8057_2230_55_002.jpg)
