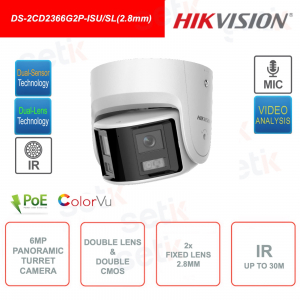

Outdoor PoE IP Turret Panoramic Camera - Double CMOS and double 2.8mm lens - IR 30m - Video Analysis
Hikvision DS-2CD2366G2P-ISU / SL (2.8mm) - IP PoE outdoor camera - Panoramic Turret - 6MP resolution , 2.8mm fixed lens, Dual 1 / 2.5 "CMOS sensor, H.265 +, Acusense technology. Day & Night (ICR) , 30m IR illuminator, Dual Stream, Video Analysis with DeepLearning , WDR 120dB , DarkFighter, ROI, BLC, 3D DNR, AGC - Audio - Alarm - Microphone - Speaker - 256GB MicroSD slot (not included) , ANR, Motion Detection, access to Hik-Connect, reset button, IP67 protection - Metal body and base - Ideal for outdoor use.
FIND INSTALLER
discover the available quantity
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-2CD2366G2P-ISU / SL (2.8mm) | HIKVISION IP POE 6MP OUTDOOR CAMERA TURRET POE H.265 + - DOUBLE LENS 2.8MM - DOUBLE CMOS SENSOR - IR 30 METERS - ACUSENSE - DARKGITHER TECHNOLOGY
Hikvision IP PoE Turret Camera - Tecnololgia Acusense - Darkfighter - DS-2CD2366G2P-ISU / SL (2.8mm)
Resolution: 6MP - Dual 2.8mm fixed lens - Dual 1 / 2.5 "CMOS sensor - H.265 + - Dual Stream
30m IR Illuminator - Day / Night (ICR) - WDR 120dB - Video Analysis with Deep Learning: Motioin Detection / Cross Detection - Audio 1in / 1out - Alarm 1in / 1out - Built-in microphone and speaker - IP67 outdoor protection - PoE power supply -
Power supply NOT included - MicroSD slot - 24 months warranty
|
ONVIF®:Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems. |
| POE (Power Over Ethernet): The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| Resolution: This camera features a resolution of 6MP Double image sensor 1 / 2.5 ”2 progressive scan CMOS |
Optics: |
Compression H.265 +
A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
IR Infrared Illuminator - DarkFighter: |
| Smart Feature-set - Video Analysis: This camera has intelligent smart functions on board Behavior Analysis: - Line crossing - Motion Detection - Smart Linkage  Face Detection  |
| WDR 120dB (Wide Dynamic Range): WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the ability of the camera to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
| ROI (Region Of Interest): The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
Max. Power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input, 1 output (max. 24 VDC, 1 A)
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
General | |
Power | 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø 5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
Material | Base: metal, cover: metal |
Dimension | Ø 140 mm × 145.6 mm (Ø 5.5 "× 5.7") |
Package Dimension | 230 mm × 230 mm × 230 mm (9 "× 9" × 9 ") |
Weight | Approx. 940 g (2.1 lb.) |
With Package Weight | Approx. 1700 g (3.7 lb.) |
Storage Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish , Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Anti-banding, heartbeat, mirror, flash log, pixel counter |
Flashing Light | Yes |
Approval | |
EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014, RCM: AS / NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014 + A11, CE-LVD: EN 62368-1: 2014 / A11: 2017 |
Environment | CE-RoHS: 2011/65 / EU, WEEE: 2012/19 / EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013 |
Further details
