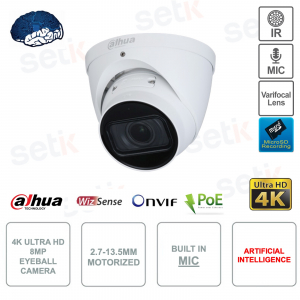

Eyeball Camera - IP ONVIF® PoE - 8MP 4K - Varifocal 2.7 mm – 13.5 mm - IR 40m - Artificial intelligence
Eyeball outdoor IP ONVIF PoE camera for video surveillance - Dahua IPC-HDW3841T-ZS-S2 S2 version - 8MP 4K UltraHD resolution - 2.7 ~ 13.5 mm motorized lens. CMOS sensor 1 / 2.8 "CMOS with Starlight Technology - Codec H.265 + - Triple Stream - IR 2xLED 40m - Artificial intelligence with Perimeter protection, smart search, Quick Pick, AI SSA - WDR 120dB - Day / Night (ICR) - EIS - Defog - 3DNR - Microphone - Event alarm - IP67 protection - 256GB MicroSD slot (not included) - Metal body.
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
IP CAMERA 2MEGAPIXEL EYEBALL - STARLIGHT - 8MP 4K ULTRA-HD - ARTIFICIAL INTELLIGENCE - MOTORIZED 2.7-13.5MM - POE - ONVIF® - MICROPHONE - DAHUA - IPC-HDW3841T-ZS-S2
Outdoor PoE ONVIF® IP camera - Dahua - IPC-HDW3841T-ZS-S2
Resolution 8MP UltraHD - Motorized varifocal lens 2.7 ~ 13.5 mm - Compression up to H.265 + - 8MP 1 / 2.8 "Starlight CMOS sensor
2 LED IR Illuminator 40m - WDR 120dB - Video Analysis - 256GB Micro SD Slot (Not Included) - 12V DC Power Supply (Not Included) - Microphone - Alarm connected to events - IP67 protection - Metal - 24 month warranty
Product details
- Outdoor IP Eyeball Camera ONVIF® PoE - S2 Series - Dahua - IPC-HDW3841T-ZS-S2
- S2 version
- Resolution: 8MP 4K UltraHD
- 1 / 2.8 "CMOS image sensor with Starlight Technology
- Starlight technology: Color night vision!
- Motorized lens of 2.7 ~ 13.5 mm varifocal
- Triple Stream Video
- Video compression up to H.265 +
- Functions: WDR (120dB) , Day / Night (ICR), 3DNR, AWB, AGC, BLC, Defog, EIS
- Video Analysis: Perimeter Protection, AI SSA, Quick Pick, Smart Search
- IR illuminator 2 LED 40m
- Remote visibility. Support DMSS Application (Best CCTV Software for Mobile) .
- IP67 protection (Dust / Immersion) ideal for outdoor use
- RJ45 10 / 100M LAN network interface
- Event alarm
- Integrated microphone
- Suitable for indoor / outdoor environments
- 12V DC power supply (not included)
- PoE protocol
- MicroSD slot (up to 256GB not included)
- Dimensions: 108.3mm × Φ122mm
- Weight: 715 g
- Temperature: –30 ° C to +60 ° C
- Material: metal casing
- 24 Months Italian Warranty
Data sheet
| IPC-HDW3841T-ZS-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1 / 2.8 "CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
3840 (H) × 2160 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto / Manual 1/3 s – 1 / 100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.007 lux@F1.5 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S / N Ratio |
> 56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
40 m (131.23 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Yes |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Event |
No SD card; Full SD card; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF® (Profile S / Profile G / Profile T); CGI; P2P; Milestone; Genetec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User / Host |
20 (Total bandwidth: 64M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE: IE11 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Client |
IOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC / PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Basic: 5.7 W (12 VDC); 6.4 W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 ° C to +60 ° C (–22 ° F to 140 ° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 ° C to +60 ° C (–40 ° F to 140 ° F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |

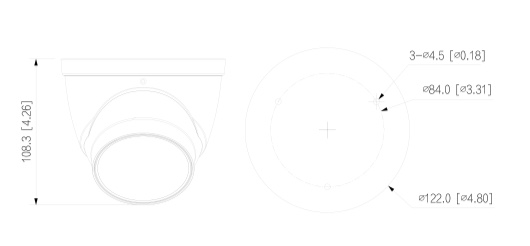

108.3 mm × Φ122 mm (4.26 "× Φ4.8") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
715 g (1.58 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
915 g (2.02 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the Onvif version |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 |
New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. |
 |
This camera has a resolution of 8 Megapixels. 8MP 1 / 2.8 "CMOS sensor. 3840x2160p, progressive scan! |
|
|
1 / 2.8 "CMOS sensor with STARLIGHT technology (and 8MP resolution) Low brightness, color vision even in night mode Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
|
|
This camera features Video compression in H.265 + format, the new Standard for video compression! |
 |
2.7-13.5mm varifocal lens with motorized zoom Motorized zoom example: |
 |
Infrared illuminator with 2 LEDs and 4 0m range |
 |
Remote visibility on mobile using the Dahua DMSS application. |
 |
This camera provides VIDEO ANALYSIS (IVS) functions:
|
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
It allows to adapt the lens to the Night / Day vision and the consequent management of the IR illuminator automatically. |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...). |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of low light and in movement, The currently most powerful solution to obtain the maximum results in the presence of low light.  |
 |
This camera is equipped with an on-board microphone |
 |
Alarm linked to events. |
 |
Possibility to insert Micro SD up to a maximum of 256Gb - not included in the package. |
 |
Protection level IP67 (Dust / Diving) Ideal solution for video surveillance systems set up outdoors. |
 |
Metal shell. |
 |
12V DC power supply NOT included!
|
 |
This product is covered by a 24 month warranty. |
