IPC-HDBW3241F-AS-S2 - Dahua - Version S2 - ONVIF AI PoE IP Dome Camera - 2MP Resolution - 1/2.8" Starlight CMOS Sensor - 2.8mm Fixed Lens - H.265+ Codec - 2 LED IR Illuminator 30m , Day/Night (ICR), WDR 120dB - Artificial Intelligence: Perimeter Protection , AI SSA, Quick Pick, Smart Search, SMD Plus 4.0 - Microphone, 256GB MicroSD slot (not included) - IP67/IK10 protection - For outdoor use.
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

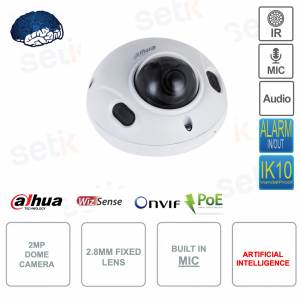

DAHUA - IPC-HDBW3241F-AS-S2 - ONVIF® POE OUTDOOR IP DOME CAMERA - S2 VERSION - 2MP WITH ARTIFICIAL INTELLIGENCE - MICROPHONE - AUDIO - ALARM
ONVIF® PoE Outdoor IP Camera - Dahua AI Series - S2 Version - IPC-HDBW3241F-AS-S2
2Megapixel Resolution - 2.8mm Fixed Lens - 1/2.8" Starlight CMOS - Compression up to H.265+
IR Illuminator 2 LED 30m - Day/Night (ICR) - WDR 120dB - MicroSD slot up to. 256GB (not included) -
Artificial Intelligence: Perimeter Protection, AI SSA, Quick Pick, Smart Search, SMD 4.0 - Audio 1in/1out RCA - Alarm 1in/1out - IP67 and IK10 protection - Metal casing.
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- PoE external AI IP camera - Dahua - IPC-HDBW3241F-AS-S2
- S2 Version
- Resolution 2Megapixel 2MP FullHD
- Fixed optics 2.8mm
- 1/2.8” Sensor with Starlight Technology
- Starlight Technology: Color Night Vision
- IR illuminator 30m with 2 LEDs
- Video compression up to H.265+
- Triple Stream Video
- WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
- Smart IR illuminator 8 LEDs 50MT
- Artificial Intelligence : Perimeter Protection, AI SSA, Quick Pick, Smart Search, SMD Plus 4.0
- 1in/1out alarm
- Audio 1in/1out RCA
- Embed Microphone
- RJ45 100M Network Interface
- Remote viewing with Smart PSS, DSS, DMSS
- Micro SD memory slot (Up to 256GB - not included)
- IP67 protection (indoor/outdoor)
- IK10 protection against vandalism
- Material: Metal
- Power supply NOT included
- Power: 12 VDC/PoE (802.3af)

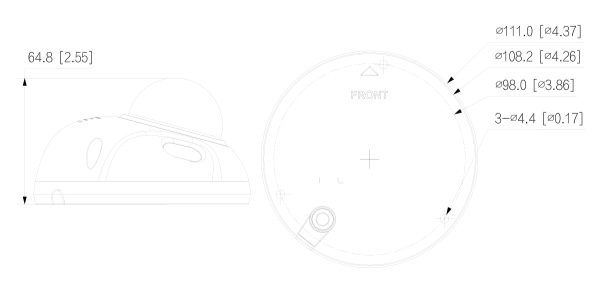

- Dimensions: 64.8mm × Φ111.0mm
- Net weight: 423 g
- Operating temperature: –40 °C to +60 °C
- 24 month warranty
Technical data sheet
| IPC-HDBW3241F-AS-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 530g (1.17lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
  |
Dahua ePoE technology provides a new way to realize long-distance transmission between IP camera and network switch. It enables more flexible surveillance system design, improves reliability, and saves construction and wiring costs. |
| AI | Artificial Intelligence
|
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | This camera features a resolution of 2Megapixel 1080P FULL HD |
 | This camera features a 2.8mm fixed lens |
| 1/2.8" STARVIS™ CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Back-illuminated structure with 2.9 µm-square unit pixel - High sensitivity (twice or more times higher than other products on the market) - Increased sensitivity when near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile Interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor, you can get color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color |
 | Main stream: 1920 × 1080 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The above values represent the maximum framerate for each stream; For multiple streams, values are subject to total encoding capacity. |
 | Quality IR illuminator for better night vision. 2 Built-in LED lights.
|
 | Remote visibility on mobile using Dahua DMSS application. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 | It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog   |
 | 1 output and 1 alarm input. |
 | 1 output and 1 RCA audio input. |
 | This camera has a built-in microphone on board! |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | Metal body. |
 | Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
