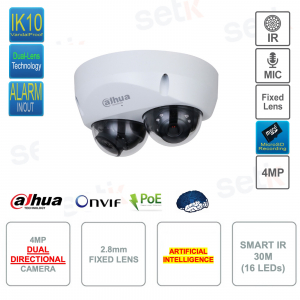

IP POE ONVIF® Dual Camera - 2.8mm - 4MP - Artificial Intelligence - Smart IR 30m

IP POE ONVIF® Dual Camera - 2.8mm - 4MP - Artificial Intelligence - Smart IR 30m
-57%

Outdoor camera - Dahua - IPC-HDBW5441F-AS-E2 - 2x4MP (Dual Camera) - Dual 2.8mm Lens - Dual 1/2.7" 2x4MP CMOS - Smart IR 30m - Triple stream - H.265+ - WDR 120dB - Artificial intelligence with Perimeter, SMD 3.0, Face detection, Smart Search and people counting - BLC - HLC - 3DNR - AGC - ROI - Defog - Mirror Mode - Defog - Audio and alarm - Built-in microphone - IP67 for outdoors - IK10 vandal-proof - MicroSD slot up to 256GB (not included) - RJ45 100M - Made of metal.



Reference: IPC-HDBW5441F-AS-E2

Brand: Dahua

EAN: 6923172524287

FIND INSTALLER

€296.92

€690.52 -57%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


ONVIF® POE OUTDOOR IP CAMERA - 2x4MP - 2.8MM LENS - ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - DAHUA - IPC-HDBW5441F-AS-E2

Dahua
ONVIF® POE IP Camera - Dahua AI Series - IPC-HDBW5441F-AS-E2
2x4MP resolution - 2.8mm fixed lens - 2x4MP 2/2.7" CMOS - Triple Stream - H.265+ Codec - Smart IR 16LED up to 30m - AWB - AGC - 3DNR - ROI - Day/Night (ICR) - WDR 120dB - Built-in microphone - 1in/1out RCA audio - 2in/2out alarm - Event alarm - 256GB MicroSD slot (not included) - Made of metal - IP67 protection from dust and splashes and IK10 protection from vandalism.
Artificial Intelligence: Face and facial attributes capture, Perimeter protection, People counting, SMD3.0, Smart Search.
Video Analysis: (Abandoned and Lost Objects, Heat Map)

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.

Product details

IPC-HDBW5442E-ZE telecamera AI IP ONVIF® PoE 2MP AUdio allarme
  • Onvif POE external AI IP camera - Dahua - IPC-HDBW5441F-AS-E2
  • Resolution 2x4Megapixel 4MP(Dual Directional, No Splicing)
  • Fixed dual optics 2.8mm
  • Dual 1/2.7" 4M Sensor
  • Video compression up to H.265+
  • Triple Stream
  • WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC, Mirror Mode, Defog, Privacy MAsking
  • Smart IR illuminator 16 LEDs 40MT
  • Artificial Intelligence : Face and facial attributes capture, Perimeter protection, People counting, Metadata.
  • Standard Video Analysis: Abandoned / Lost Objects, Heat Map
  • Audio : 1 Input + 1 RCA Output
  • Built-in microphone
  • Alarm : 2 Inputs + 2 Outputs
  • Micro SD memory slot (Up to 256GB - not included )
  • IP67 outdoor protection against dust and splashes
  • IK10 (indoor/outdoor, vandalism)
  • RJ45 LAN Ethernet 100M
  • Material: Metal
  • Dimensions: 66.2mm × Φ122.0mm
  • Operating temperature: –40 °C to +60 °C
  • Weight: 520g
  • Power supply NOT included
  • 24 month warranty

Technical data sheet

IPC-HDBW5441F-AS-E2

Room

Image Sensor

Power

Power Supply

12VDC/PoE

Power Consumption

Basic: 3.1W (12VDC); 4W (PoE)
Max. (H.265 + IR on + intelligence+ WDR): 6.6 W (12 VDC); 8W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Protection

IP67; IK10

Structure

Casing

Metal

Product Dimensions

66.2 mm × Φ122.0 mm (2.61" × Φ4.80")

Net Weight

0.52 kg (1.15 lb)

Gross Weight

0.67 kg (1.48 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

PoE Power Supply

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

Realize long-distance transmission between IP camera and network switch. It enables more flexible surveillance system design, improves reliability, and saves construction and wiring costs.

AI | Artificial Intelligence
This camera features Artificial Intelligence on board

- Perimeter Protection:
- SMD 3.0
- Face detection
- People counting
- Smart Search

AI Camera - Cattura del volto

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

Questa telecamera ha una risoluzione 4Mpx 2560x1440 This camera has a resolution of 4 Megapixel 4 MP :
Dual Image Sensor 1/2.7” 4Megapixel progressive scan CMOS
Resolution: 2560x1440p

This camera features a 2.8mm fixed dual lens.

Main stream : 2560 × 1440 @(1–25/30 fps )
Sub stream : 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Third stream : 1920 × 1080 @ (1–25/30 fps)
IR illuminator up to 30m

Infrared IR illuminator with range up to 30m with 16 LEDs.


This camera also features SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted depending on the object being framed. SmartIR.jpg

Full HD

Remote visibility on mobile using Dahua DMSS application.

This camera also provides basic video analysis functions:

- Recognition of lost and abandoned objects

Questa telecamera presenta ingressi e uscite audio This camera has 1 audio input + 1 audio output (RCA port)
Questa telecamera presenta ingressi e uscite allarme This camera has 2 inputs + 2 alarm outputs
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
DEFOG Function Icon It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Protezione IP67 contro polveri e immersioni

Protection level IP67 (Dust / Immersion)

The ideal solution for use in outdoor video surveillance systems!

IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism

This camera features an on-board microphone This camera has a built-in microphone!
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

This DVR features 2 RJ-45 ports (10 / 100 / 1000Mbps) Built-in 100M RJ45 Ethernet LAN port.
Power supply 12V 3A Power supply NOT included
Power supply 12V DC
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure
Schema dimensioni telecamera IPC-HDBW5442E-ZE
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
