IP Camera ONVIF PoE Dahua IPC-HDW3241EM-S-S2 - Version S2 - 2 Megapixel , Fixed Lens 2.8mm, CMOS 1 / 2.8 "with STARLIGHT technology Compression H.265 + - Triple Stream - Artificial intelligence: Perimeter protection, AI SSA, Quick Pick, Smart Search, SMD 4.0 - WDR 120dB, Day / Night (ICR), AWB, AGC, BLC, HLC, MicroSD slot up to 256GB (not included) , ROI, AFSA, Motion Detection, 3DNR, Mirror Mode, Privacy Masking - Integrated microphone - Event alarm - IP67 protection - Ideal for outdoor use.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ONVIF® POE IP CAMERA - 2 MEGAPIXEL 2.8MM - STARLIGHT - VIDEO ANALYSIS - MICROSD SLOT

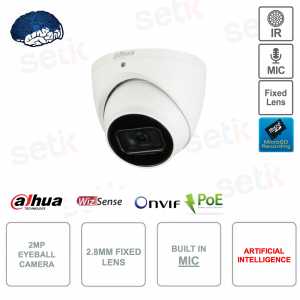

ONVIF® PoE outdoor IP camera - S2 version - Dahua - IPC-HDW3241EM-S-S2
2MP FullHD Resolution - 1 / 2.8 " STARLIGHT CMOS Sensor - 2.8mm Fixed Lens - H.265 + Compression - IR up to 50m with 2 LEDs - Triple Stream -
Artificial intelligence: Perimeter protection, AI SSA, Quick Pick, Smart Search, SMD 4.0 - Microphone - Event alarm - WDR 120dB - Day / Night (ICR) - SSA - AFSA - 3DNR - AWB - AGC - BLC - HLC - Mirror - Privacy Masking - 256GB MicroSD slot (not included) - 12V DC power supply (not included) - PoE power supply - 24 month warranty.
Product details
- S2 version
- ONVIF® PoE outdoor IP camera - Dahua - IPC-HDW3241EM-S-S2
- Resolution: 2MP FullHD
- 1 / 2.8 "CMOS image sensor with STARLIGHT technology
- Starlight technology: color night vision
- Fixed lens 2.8mm
- Triple Stream Video
- Video Compression H.265 +
- WDR (120dB) , Day / Night (ICR), 3DNR, AWB, AGC, BLC, OSD, HLC, AFSA, SSA, Defog, Mirror Mode, Privacy MAsking
- Smart IR 2 LED 50m illuminator
- Integrated microphone
- Alarm linked to events
- Artificial Intelligence: Perimeter Protection, AI SSA, Quick Pick, Smart Search, SMD 4.0
- IP67 protection (Dust / Immersion), ideal for outdoor use
- 12V DC Power Supply (Not Included)
- PoE power supply
- MicroSD slot (Max 256GB not included)
- Dimensions: 93.6 mm × Φ106.0
- Net weight: 500g
- Operating temperature: –40 ° C to +60 ° C
- Metal casing
- 24 Months Warranty
Data sheet
| IPC-HDW3241EM-S-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1 / 2.8 "CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
512 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto / Manual 1/3 s – 1 / 100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.002 lux@F1.4 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S / N Ratio |
> 56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
50 m (164.04 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On / Off Control |
Auto / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
2 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan / Tilt / Rotation Range |
No SD card; Full SD card; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF® (Profile S / Profile G / Profile T); CGI; P2P; Milestone; Genetec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User / Host |
20 (Total bandwidth: 64M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE: IE11 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Client |
IOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC / PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Basic: 2.6 W (12 VDC); 3.3 W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 ° C to +60 ° C (–40 ° F to 140 ° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 ° C to +60 ° C (–40 ° F to 140 ° F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
93.6 mm × Φ106.0 mm (3.69 "× Φ4.17") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
500 g (1.10 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
770 g (1.70 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the Onvif version |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
|
|
1 / 2.8 "CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera features a 2 Megapixel resolution! |
 |
2.8mm fixed lens |
|
|
This camera provides ARTIFICIAL INTELLIGENCE functions: AI SSA Quick Pick Smart Search SMD 4.0 |
|
|
Smart IR 2 LED illuminator 50 meters |
 |
Microphone built into the device! |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
It allows to adapt the lens to the Night / Day vision and the consequent management of the IR illuminator automatically. |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...). |
 |
Possibility to insert Micro SD up to a maximum of 256Gb (Not Included) |
 |
Protection level IP67 (Dust / Diving) Ideal product for outdoor use! |
 |
12V DC power supply NOT included!
|
 |
This product is covered by a 24 month warranty. |
