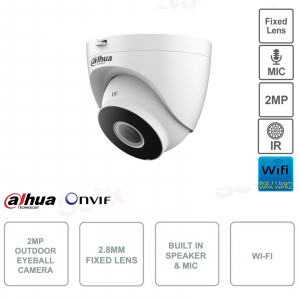

Eyeball IP ONVIF outdoor camera for Dahua IPC-HDW1230DT-STW video surveillance - 2 Megapixel, 2.8mm fixed lens. Progressive CMOS sensor 1/2.8" CMOS, H.265+, IR illuminator 1 LED 30M - DWDR , Day/Night(ICR), 3DNR, AWB, AGC, BLC, Mirror - WIFI - IP67 protection for outdoor use. MicroSD slot 256GB (not included) - Built-in microphone and speaker.
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
| SEE ALSO THE METAL VERSION! |
IP CAMERA ONVIF® EYEBALL 2MP FIXED 2.8MM - IR 30M - WIFI - MICROPHONE AND SPEAKER - DAHUA - IPC-HDW1230DT-STW
2MP resolution - 2.8mm fixed lens - Compression up to H.265+ - 1/2.8" 2MP CMOS sensor
IR illuminator 1LED 30Meters - DWDR - BLC, AGC, 3DNR, Mirror, AGC, Day/Night(ICR) - WIFI - Built-in microphone and built-in speaker
256GB Micro SD slot (not included) - 12V DC power supply (not included) - IP67 protection for outdoor use - 24 months warranty
Product details
- ONVIF® Outdoor IP Dome Camera - S2 Series - Dahua - IPC-HDW1230DT-STW -
- Resolution: 2Megapixels 2MP
- Image sensor 1/2.8" CMOS with Starlight Technology
- 2.8mm fixed lens
- Video compression up to H.265+
- Functions: DWDR , Day/Night(ICR), 3DNR, AWB, AGC, BLC, Mirror Mode
- IR Illuminator 1 LED 30 Meters
- Integrated microphone and speaker
- Alarm linked to events
- Clients. mobile: iOS and Android
- Remote Visibility. Support DMSS Application (The Best CCTV Software for Mobile) .
- IP67 Protection (Dust/Immersion)
- Suitable for indoor/outdoor environments
- 12V DC power supply (not included)
- MicroSD slot (up to 256GB not included)
- RJ-45 100M Ethernet LAN port
- Operating temperature: –30 °C to +60 °C
- Net weight: 352g
- Material: plastic and metal interior / Plastic shell
- Dimensions: Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02")
- 24 month manufacturer's warranty
Data sheet
| IPC-HDW1230DT-STW | ||
|
Technical Specs |
||
|
Room |
||
|
Image Sensor |
1/2.8" CMOS |
|
|
Max.Resolution |
1920(H)×1080(V) |
|
|
ROM |
16MB |
|
|
RAM |
64MB |
|
|
Scanning System |
Progressives |
|
|
Electronic Shutter Speed |
video encryption; configuration encryption; digests; WSSE; account lockout; security logs; generation and import of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrades |
|
|
NetworkProtocol |
IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP extension |
|
|
Interoperability |
ONVIF® (Profile S/Profile T); CGI; P2P |
|
|
User/Host |
6 (Total bandwidth: 36M) |
|
|
Storage |
Micro SD card (support max. 256GB) |
|
|
Browsers |
IE Chrome Firefox |
|
|
management software |
Smart PSS; DSS; DMSS extension |
|
|
Mobile Clients |
iOS; android |
|
|
Certification |
||
|
Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
|
|
Power |
||
|
Power Supply |
12VDC |
|
|
power consumption |
Basic: 1.9 W (12 VDC) Max. (H.265+IR intensity): 6.1 W (12 VDC) |
|
|
environment |
||
|
Operating Temperature |
–30°C to +60°C (–22°F to +140°F) |
|
|
Operating Humidity |
≤ 95% |
|
|
Storage Temperatures |
–30°C to +60°C (–22°F to +140°F) |
|
|
Protection |
IP67 |
|
|
structure |
||
|
Casing |
Inner core: Metal+Plastic Cover: Plastic |
|
|
Product Dimensions |
Ø109.9mm × 102.2mm (Ø4.33" × 4.02") |
|
|
Net Weight |
352g (0.77lb) |
|
|
Gross Weight |
530g (1.17lb) |
|
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 |
This camera features a resolution of 2MP 1920x1080p FullHD! 1/2.8" 2MP CMOS sensor. |
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera features a 2.8mm fixed lens |
 |
Smart IR Illuminator 1 LED 30 meters! |
 |
Remote visibility on mobile using the Dahua DMSS application. |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 |
It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically. |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where the recovery turns out to be difficult (entrances or exits of car parks, recovery of license plates, presence of particular lights etc...). |
 |
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  |
 |
This camera is equipped with an on-board microphone and built-in speaker. |
 |
This product is equipped with WIFI connection: IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4G Coverage up to 120m. |
 |
Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 |
Protection level IP67 ( Dust / Immersion ) |
 |
12V DC power adapter NOT included!
|
 |
This product is covered by a 24 month guarantee. |
