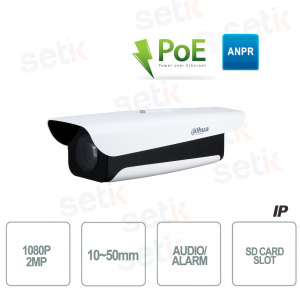

Dahua ip camera 2MP varifocal optics ir anpr

Dahua ip camera 2MP varifocal optics ir anpr
-57%

ITC237-PW6M-IRLZF1050-C2 Standalone ANPR Camera, 1080P Resolution, 2 Megapixel, 10-50mm Varifocal Lens, 2 Megapixel 1/1.8" CMOS Sensor, IR Illuminator up to 30 Meters, WDR 96dB, SD Card up to 64Gb, audio , 2x RS485, 1x RS232, Alarm, Support license plate cropping, snapshot capture and video recording, Metadata, PoE



Reference: ITC237-PW6M-IRLZF1050-C2

Brand: Dahua

FIND INSTALLER

€857.72

€1,994.70 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


Telecamere IP di sorveglianza a tecnologia ANPR

STANDALONE ANPR CAMERA 2 MEGAPIXEL FULL HD - SD CARD - POE - IK10 - AUDIO - ALARM - C2 VERSION - DAHUA TECHNOLOGY

Made by Dahua Standalone ANPR Camera - Dahua
1080P 2Megapixel resolution - Varifocal lens 10~50mm - 1/1.8" 2 megapixel CMOS sensor
IR illuminator up to 30 meters - WDR 96dB - SD slot - Audio, RS485, RS232, Alarm
Support license plate cropping, snapshot capture and video recording - PoE powered

ANPR CAMERAS: WHAT IS IT ABOUT?
ANPR (or LPR) is a technology integrated into some specific cameras that allows you to eliminate the glare effect due to the typical reflection characteristics of license plates.

The presence of this technology allows adequate vision even in the presence of illuminators on license plates .

Lettura targa con telecamera funzione ANPR

Product details

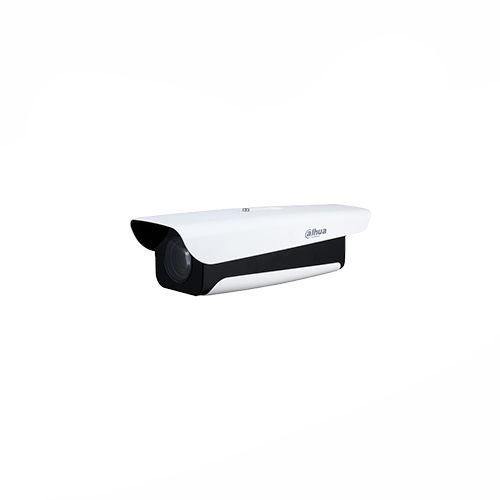

Telecamera Bullet con risoluzione 2Mpx e tecnologia ANPR
- Standalone ANPR Camera - Dahua
- Resolution: 2Megapixel 1080P FULL HD
- 1/1.8” progressive CMOS image sensor
- Varifocal lens 10~50mm
- Video Compression H.265
- WDR( 96dB )
- 3 alarm inputs and 3 alarm outputs
- 1 audio input and 1 audio output
- RS485 - RS232
- IR illuminator with 6 LEDs and license plate reading
- Smart functions: Support license plate cropping, snapshot capture and video recording
- Remote viewing with Dahua DMSS
- SD slot slot
- PoE power supply
- Suitable for outdoor and indoor environments
- Dimensions 370.4mm×124.7mm×105.7mm
- 24 month warranty

Data sheet

IP camera for license plate recognition
1/1.8” 2 megapixel CMOS sensor
Compression formats: H.265/H.264M/H.264H/H.264B/MJPEG
Digital resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)
Stream 1: 1080P, 720P (25fps)
Stream 2: 720P, D1, CIF (25fps)
0.002lux
IR illumination: 6 leds, 30 meters, adjustable brightness
10~50mm motorized optics
1 RCA input / 1 RCA audio output
Picture modes: WDR 96dB, 3D-NR, edge enhancement
White balance with 3 modes
Auto, customizable auto, and customizable exposure modes
Support NRA
Capture range of 8 ~30 meters
Detected lane width of 6~7 meters
Maximum detection speed: 60km/h
Vehicle capture rate of ≥99%
Supports recognition of vehicle type, logo, color, license plate, vehicle without license plate
Vehicle recognition rate of ≥95%
video metadata
Shows the vehicle's license plate and its route
Support MicroSD card up to 64GB (card not included)
analog video output
3 optocoupled alarm inputs
3 alarm outputs
2 RS485 ports
1 RS232 port
Network interface: RJ45 (100/1000M)
Power: 12V DC / 24V AC / PoE+ (802.3at)
Consumption: <20W
Operating temperature -30°C ~ +65°C
Humidity 10%~90%
metal and plastic casing
Degree of protection IP67
Dimensions: 124.7 (W) x 105.7 (H) x 370.4 mm
Weight: 1.7kg

Further details

Telecamera ANPR

Dahua ANPR cameras offer a full range of functions for license plate recognition.

They integrate an algorithm that detects and captures license plate numbers and stores their details in a database

The camera can capture and store screenshots of license plates directly to an SD Card without the need for an NVR

Why choose a Dahua ANPR camera?

The Dahua ANPR camera range incorporates high quality 2 megapixel images, varifocal lenses, anti-roll headlights and long-range IR LEDs for license plate recognition up to 40 meters away.

The cameras offer a white list / black list function capable of triggering set events based on stored license plates.

Furthermore...

  • Clear registration of license plate numbers

  • Database registration

  • Trigger events inc. barrier control

  • Integration with Dahua NVR

  • Support snapshot on TF Card

  • PoE

  • Simple installation and use

How and where can it be used?

A Dahua ANPR camera is suitable for various types of areas, including parking entrances, barrier-controlled areas or lane monitoring.

Esempio funzione anpr

  • Entrances with gates or barriers

  • Parking management

  • Safety

  • Bus lane monitoring

  • Oil stations

Esempio funzione ANPR
Questa telecamera ha una risoluzione 2Mpx

This camera has a resolution of 2Megapixel 1080P FULL HD

1080P/720P

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
Ottica varifocale motorizzata

This camera features 10-50mm varifocal optics

1/1.8" sensor with STARLIGHT technology.

Low brightness, color vision even in night mode



With this sensor it is possible to have color shots even in night mode.

Normally, when you enter night mode, color vision becomes black/white.

With the SENSOR present, night shots will be in color

Funzioni intelligenti a bordo

This camera has useful features such as:

- License plate cutout

- Overview screenshots and video recordings

- White list / black list for activation of events set based on the memorized license plates.

- Multiple Detection: The camera supports automatic and video detection, it is more stable when the system is used to control barriers or count the number of vehicles for access control. Even if automatic detection is triggered accidentally, video detection will still be automatic.

Illuminatore IR fino a 25mt

Infrared illuminator with 6 Dot LEDs (larger) and license plate reading/range

ULTRA WDR up to 96dB
WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
Questo DVR presenta ingressi e uscite allarme

This camera features:

1 Inputs + 2 Alarm Outputs

Questo DVR presenta ingressi / uscite audio This camera features 1 audio input + 1 audio output
Allows you to adapt the lens to Night/Day vision

ICR The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

IP67 WaterProof Level of protection from heavy rain and dust in IP parameters.

IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism

Software di gestione

Dahua DSS management software

Software di gestione DSS Dahua

New design, easy to use
> Based on Windows OS.
> New interface, better experience.


Greater flexibility and stability
> Easy performance upgrade via distributed hardware extension
> Easy functionality upgrade via add-ons.
> Supports hot standby for master servers

High Compatibility
> Dahua devices: IP cameras, IP speed domes, NVR, DVR, MNVR, ITC etc.
> Connection to third-party devices via standard ONVIF® protocol.
> DSS Pro SDK for third-party platforms or mobile development

MicroSD Recording

Possibility to insert Micro SD

Snapshot recording of vehicle license plates and saving directly to SD

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.
