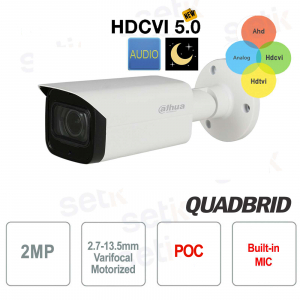

Dahua 2MP 4in1 Motorized Starlight 80M Audio WDR POC Camera

-58%

HDCVI 5.0 new Dahua series Outdoor camera HAC-HFW2241TU-ZA-POC-S2 with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 2Megapixel 2MP 1080P FULL-HD resolution, 2.7-13.5mm motorized lens and 1 / 2.8 sensor "CMOS with Starlight technology. Smart IR 4 LED 80M Illuminator, WDR 130dB , Day / Night (ICR), Microphone , IP67, POC S2 version

Reference: HAC-HFW2241TU-Z-A-POC-S2

Brand: Dahua

EAN: 6923172528070

FIND INSTALLER

https://www.setik.biz/en/cameras/7931-dahua-hac-hfw2241tu-z-a-poc-s2-dahua-2mp-4in1-motorized-starlight-80m-audio-wdr-poc-camera.html

€151.16

€359.90 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Further Details Download

DAHUA 4IN1 2MEGAPIXEL MOTORIZED CAMERA - STARLIGHT IR 80METERS MICROPHONE WDR - POC - S2

Dahua 4in1 outdoor camera - S2 version
4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 2MP - Motorized 2.7-13.5mm lens - POC
CMOS sensor Starlight technology - Smart IR 4 LED 80MT - WDR 130dB
Microphone - Power supply NOT included - 24 month warranty

Product details

Telecamera Bullet con risoluzione 2MP e ottica varifocale motorizzata 2.7-13.5mm

- 4in1 bullet camera - Dahua

- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG

- Switchable technologies through dip switches on coaxial cable
- Poc

- Resolution: 2Megapixel 2 MP

- 1 / 2.8 "CMOS image sensor with Starlight technology

- Starlight technology: Color night vision

- Motorized 2.7-13.5mm varifocal lens

- Functions: Day / Night (ICR), BLC, HLC, AGC

- WDR 130dB

- OSD Multilingual menu

- Built- in microphone
- IP67 protection (Rain / Diving)
- Quality Smart IR illuminator with a maximum range of 80 meters.

- 1 BNC high definition video output & 1 CVBS video output (dip switch)

- POC power supply (CVI only) / 12V ± 30% DC
- Suitable for outdoor and indoor environments

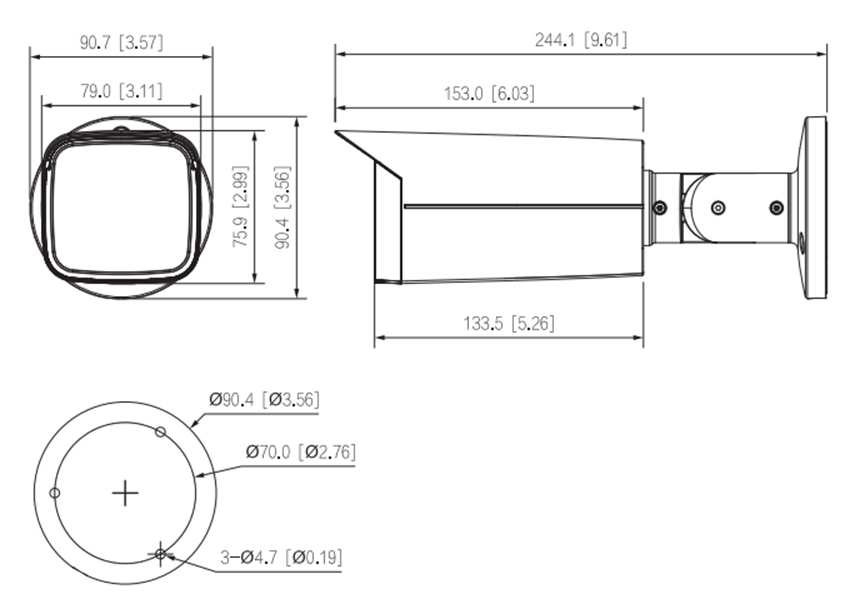

- Dimensions 244.1 mm × 90.4 mm × 90.4 mm (9.61 "× 3.56" × 3.56 ")

- 24 months warranty

Data sheet

Model	HAC-HFW2241TU-ZA-POC-S2
Room
Image Sensor	2 MP CMOS
Effective Pixels	1920 (H) × 1080 (V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s – 1 / 100,000 s NTSC: 1/30 s – 1 / 100,000 s
S / N Ratio	> 65 dB
Min. Illumination	0.001 Lux / F1.6, 30 IRE, 0 Lux IR on
IR Distance	80 m (262.5 ft)
IR On / Off Control	Car
IR LEDs	4
Lens
Lens Type	Motorized Vari-focal
Auto Focus	Yes
Mount Type	φ14
Focal Length	2.7mm-13.5mm
Max. Aperture	F1.6
Angle of View	Diagonal: 131 ° –35 ° Horizontal: 108 ° –30 ° Vertical: 56 ° –17 °
Close Focus Distance	0.8 m (2.6 ft)
Video
Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame rate	CVI: PAL: 1080p @ 25fps; NTSC: 1080p @ 30fps; AHD: PAL: 1080p @ 25fps; NTSC: 1080p @ 30fps; TVI: PAL: 1080p @ 25 fps; NTSC: 1080p @ 30fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H
Day / Night	Auto switch by ICR
BLC	BLC / WDR / HLC
WDR	130 dB
White Balance	Auto / WB Area
Gain Control	Car; manual
Noise Reduction	3D NR
Smart IR	Yes
Mirror	Yes
Privacy Masking	Off / On (8 area, rectangle)
Certification
Certifications	CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1)
Interface
Video Output	Video output choices of CVI / TVI / AHD / CVBS by one BNC port
Audio Interface	One channel built-in mic
Electrical
Power Supply	POC (CVI only) / 12V ± 30% DC
Power consumption	Max6.7W (12V DC, IR on) PoC (AT)
Environmental
Operating Conditions	–30 ° C to +60 ° C (–22 ° F to 140 ° F); <95% (non-condensation)
Strorage Conditions	–30 ° C to +60 ° C (–22 ° F to 140 ° F); <95% (non-condensation)
Ingress Protection	IP67
Construction
Casing	Metal throughout the whole casing
Dimensions	2244.1 mm × 90.4 mm × 90.4 mm (9.61 "× 3.56" × 3.56 ")
Net Weight	0.81 kg (1.8 lb)
Gross Weight	1.09 kg (2.4 lb)

Further details

	In the field of video surveillance , "technological evolution" is synonymous with greater security . Dahua , much more than other companies, is constantly committed to this and, thanks to its team of specialized technicians, produces products that are able to guarantee an increasingly complete level of protection. The novelty of 2019 concerns the launch of a new technology ... a new evolutionary stage of HD on coaxial . We welcome HDCVI 5.0! Would you like to know more? Read our article
	This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time, Analog , Ahd , HDCVI and HDVI . Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch on coaxial cable
	This camera features 2 Megapixel 1080P FULL HD resolution
	This camera features 2.7-13.5mm varifocal lens with Motorized Zoom Video Example:
	1 / 2.8 "CMOS sensor with STARLIGHT technology. With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
	Infrared illuminator with approximate maximum range of 80Mt This camera is also equipped with SMART IR technology. Through this technology , the light emitted by the LEDs is adapted according to the framed object.
	ULTRA WDR up to 130dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
	This camera has built- in microphone
	Allows you to adapt the lens to Night / Day vision
	The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations Click to enlarge
	AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	Protection level IP67 (Dust / Diving)
	12VDC power supply not included
	This product is covered by a 24 month warranty.
