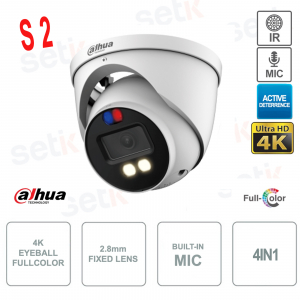

Dahua Eyeball Fixed Camera | HAC-ME1809H-A-PV-S2 - 4K resolution - BNC 4in1 CVI/TVI/AHD Video Output, 2.8mm fixed lens and 1/2.8" CMOS sensor. 40MT Smart IR illuminator with warm light LEDs, 2D NDR, BLC, HLC, DWDR, AWB, Mirror Mode, Privacy Mask - Starlight Full Color, 1x alarm output, Active deterrence with flash and siren - Built-in microphone - IP67 protection for outdoors - Metal body Version S2
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA OUTDOOR CAMERA - 3in1 - 4K - 2.8mm LENS - IR 40MT - FULL COLOR - HAC-ME1809H-A-PV-S2
4 Technologies in 1: HDCVI / CVBS / HDTVI / AHD on BNC video output - 4K Resolution - 2.8mm fixed lens and 1/2.8" Starlight Full Color CMOS sensor, 1 BNC 4in1 CVI/TVI/AHD Video Output
Product details
- 4in1 Fixed Eyeball outdoor camera - Dahua - HAC-ME1809H-A-PV-S2
- 3 Technologies in 1: HDCVI / HDTVI / AHD on BNC sucita
- Resolution: 4K 3840x2160p
- Starlight Full Color
- Active deterrence with flash and siren
- Built-in microphone
- Image sensor 1/2.8" CMOS
- 2.8mm fixed lens
- Functions: BLC, HLC, DWDR, 3D NDR
- OSD Multilingual menu
- 40MT Smart IR LED Illuminator with 2xLEDs
- 1 BNC 4in1 CVI/TVI/AHD Video Output
- 1 alarm output
- 1x built-in microphone
- 12V DC power supply not included
- Suitable for indoor and outdoor environments
- IP67 protection (dust / immersion)
- Material: metal
- Operating temperature: –40°C to +60°C
- Item net weight: 0.69kg
- Dimensions: Φ122.0mm × 110.9mm
- 24 months warranty
Data sheet
| HAC-ME1809H-A-PV-S2 | ||||
Technical Specs | ||||
Room | ||||
Image Sensor | 1/2.8" CMOS | |||
Max.Resolution | 3840(H)×2160(V) | |||
Pixels | 4K | |||
Scanning System | Progressives | |||
Electronic Shutter Speed | PAL:1/3s~1/100000s NTSC:1/4s~1/100000s | |||
S/N Ratio | >65dB | |||
Min Illumination | 0.005Lux/F1.6, 0Lux warm light on | |||
Illumination Distance | 40m (131.2ft) | |||
IlluminationType | Warm light | |||
Illuminator On/Off Control | Car; manual | |||
Illuminator Number | 2 (Warm light) | |||
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° | |||
| Len s | ||||
LensType |
This camera incorporates 3 technologies in 1 These cameras are both Ahd , Hdcvi and Hdtvi .    | |||
 | 2.8mm fixed optics | |||
| OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD Menu is multi-language Multi-Tech: The camera features 4 technologies in 1 (HDCVI, HDTVI, AHD, Analog) | |||
 | Infrared illuminator with approximate maximum range of 40Mt with 2 LED illuminators | |||
 | Digital Wide Dynamic Range (WDR ) D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  | |||
 | Active deterrence : This camera integrates Active Deterrence functions Promptly report intruders and act even before the break-in occurs
| |||
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  | |||
 | BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations | |||
 | Protection level IP67 ( Dust / Immersion ) | |||
 | This camera has a built-in microphone | |||
 | This Camera Has 1 Alarm Output | |||
 | 12VDC power supply not included  | |||
 | This product is covered by a 24 month guarantee. | |||
