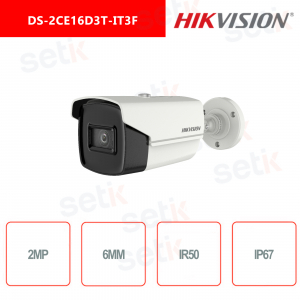

DS-2CE16D3T-IT3F (6mm) | HIKVISION 2MP BULLET CAMERA HD 4IN1 6MM - EXIR 50 M

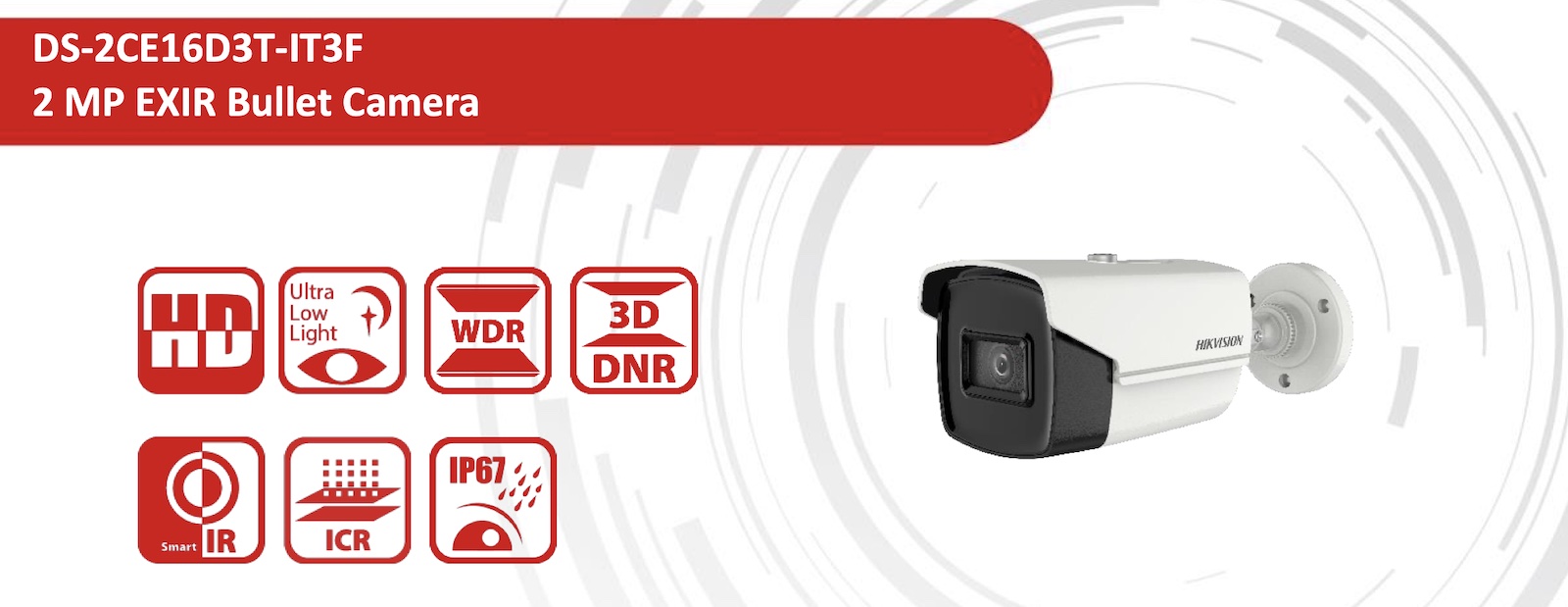

Hikvision DS-2CE16D3T-IT3F (6mm) 2MP CMOS 4in1 (TVI / AHD / CVI / CVBS) Ultra Low Light Bullet Camera
2Megapixel outdoor, 6mm fixed lens, 2MP CMOS sensor, EXIR 2.0 illuminator up to 50M with EXIR 2.0 technology
Support 3D Digital noise reduction, BLC, Smart IR, WDR 120dB. Analog HD video output, IP67
Power supply NOT included - POC compatible (Coaxial power supply) - 24 month warranty
4IN1 TECHNOLOGY: This camera is a QUADRIBRID (4 Integrated Technologies) |
Resolution: This camera features a resolution of 1920x1080 FULL-HD 2 megapixels high performance CMOS sensor |
Optics: This camera features a 6mm fixed lens |
IR Infrared Illuminator: This camera is also equipped with SMART IR technology. EXIR 2.0 TECHNOLOGY This technology remedies the classic disturbances of the traditional IR illuminator. 1) NO IR REFLEX OR BLEEDING: 2) BEST IR COVERAGE:
|
Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
IR CUT FILTER (ICR): Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
WDR 120 (Digital Wide Dynamic Range): |
IP67 protection - outdoor: |
Diet: |
Data sheet
DS-2CE16D3T-IT3F (6mm) | |
Room | |
Image Sensor | 2.0 megapixel progressive scan CMOS |
Signal System | PAL / NTSC |
Video Frame Rate | PAL: 1080p @ 25fps NTSC: 1080p @ 30fps |
Resolution | 1920 (H) × 1080 (V) |
Min. Illumination | 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shuder Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
Slow Shuder | Max. 16 Times |
Lens | 6 mm |
Horizontal Field of View | 61 ° |
Lens Mount | M12 |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, RotaAon: 0 ° to 360 ° |
SynchronizaAon | Internal synchronization |
WDR (Wide Dynamic Range) | ? 120 dB |
Menu | |
AGC | High / Medium / Low |
D / N Mode | Auto / Color / BW (Black and White) |
Image Mode | STD / HIGH-SAT |
HLC | Yes |
BLC (Backlight Compensation) | Yes |
WDR | Yes |
3D DNR | Level 1 to 9 |
Language | English |
Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
Interface | |
Video Output | 1 HD analog output |
Budon switch | TVI / AHD / CVI / CVBS |
General | |
Operating Conditions | -40 ° C to 60 ° C (-40 ° F to 140 ° F), Humidity: 90% or less (non-condensation) |
Power Supply | 12 VDC ± 25% |
Power Consumption | Max. 5.6 W |
Protection level | IP67 |
Material | Front cover: Metal Main body: Plastic Bracket: Plastic |
IR Range | Up to 50 m |

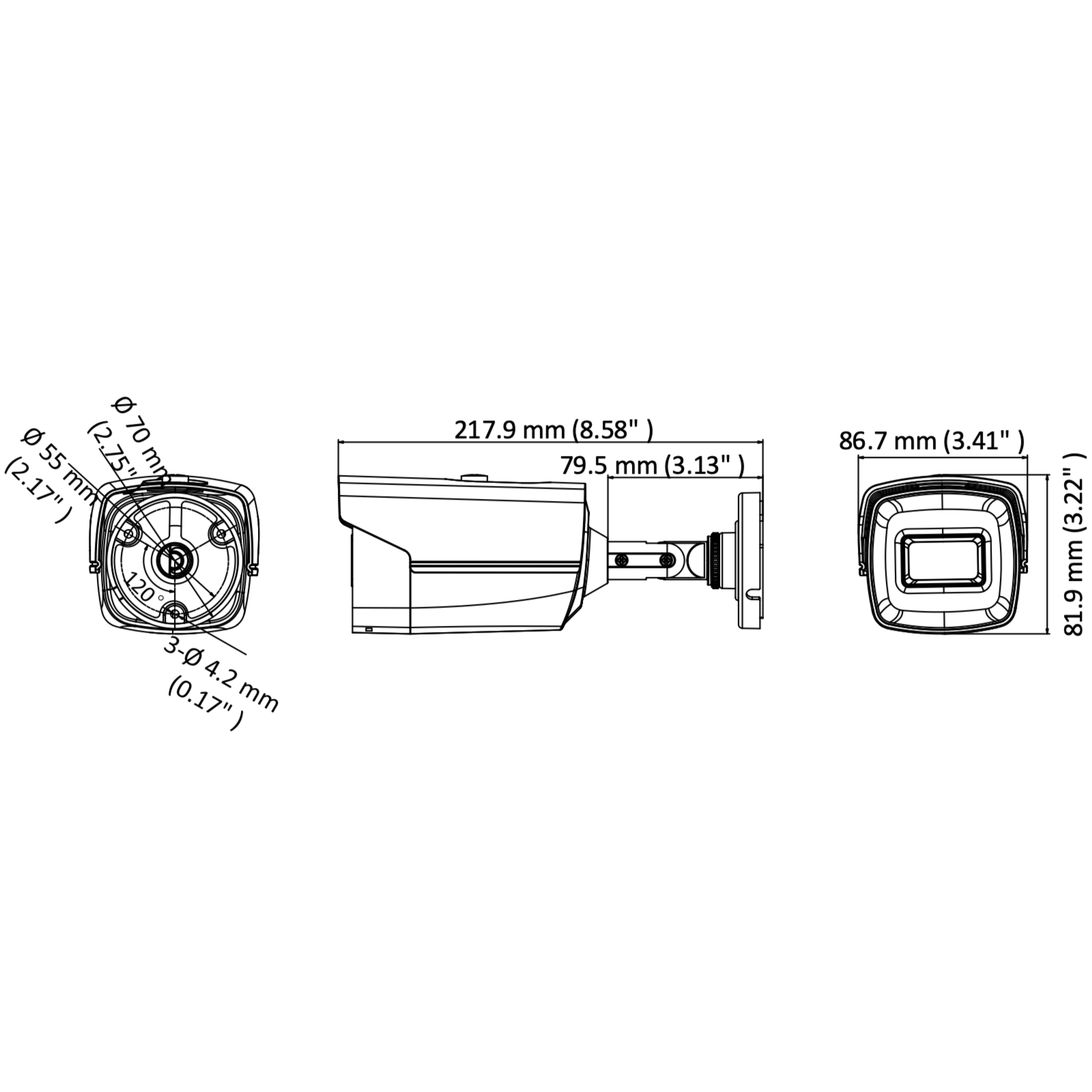

Communication | 81.9 mm × 86.7 mm × 217.9 mm (3.22 "× 3.41" × 8.58 ") |
Weight | Approx. 411 g (0.91 lb.) |
