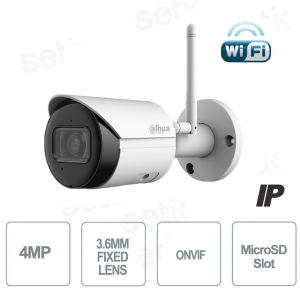

Dahua 4MP 3.6mm ONVIF® Wireless IP Camera - Consumer Series

Dahua 4MP 3.6mm ONVIF® Wireless IP Camera - Consumer Series
BEST PRICE -60%

Consumer Series | Dahua IPC-HFW1430DS-SAW Bullet 4Megapixel 4 MP Outdoor Wireless IP Camera ONVIF, 3.6mm fixed lens and 1/3 "CMOS sensor. Compression up to H.265+ , WI-FI 2.4G antenna up to 80m in open space. Microphone , Motion detection , IR LED illuminator 30M, Day/Night (ICR), MicroSD slot (256GB - not included).

Reference: IPC-HFW1430DS-SAW

Brand: Dahua

EAN: 6923172539922

FIND INSTALLER

€95.16

€237.90 -60%
taxes included
Tax included
  Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA CONSUMER SERIES | ONVIF® 4 MEGAPIXEL 3.6MM WIRELESS IP CAMERA - WIFI - MOTION DETECTION

Made by Setik WiFi IP ONVIF® outdoor camera - Dahua Consumer
Resolution 4Megapixel 4 MP - 3.6mm fixed lens - 1/3" CMOS sensor - H.265+
IR Illuminator 30M - Day/Night (ICR) - WIFI Antenna - Motion Detection
IP67 protection (outdoor) - MicroSD slot (256Gb - Not Included) - 12V DC power supply included - Months warranty

Product details

Telecamera IP WIFI 4MP 2K QHD IPC-HFW1435S-W
- Wireless IP ONVIF® outdoor camera - Dahua Consumer Series
- Wifi
- 4Megapixel 4MP resolution
- 3.6mm fixed lens
- Image sensor 1/3” CMOS 4Megapixel progressive
- Video compression up to H.265
- Day/Night (ICR)
- 30M LED IR illuminator
- MicroSD slot (up to 128GB - not included)
- 12V DC power supply included
- Suitable for indoor and outdoor environments (IP67 protection (dust / short immersions)
- Dimensions: 166.2mm×70.0mm×128.6mm
- 24 months warranty

Data sheet

model IPC-HFW1430DS-SAW
Room
Image Sensor 1/3" CMOS
Max.Resolution 2560(H)×1440(V)
RAM/ROM 16MB/64MB
Scanning System Progressives
Electronic Shutter Speed Auto/Manual 1/3s–1/100,000s
Min Illumination 0.025 lux@F2.0 (Color,30 IRE) 0.0025 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on)
S/N Ratio >56dB
Illumination Distance 30m (98.43ft) (IR LED)
Illuminator On/Off Check Car; manual
Illuminator Number 1 (IR LEDs)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
lens
Fixed-focal
Lens mount M12
Focal Length 3.6mm
Max. Openings F2.0
Field of View Horizontal: 90°; Vertical: 50°; Diagonal: 107°
Iris Control Fixed
Close Focus Distance 1.0m (3.28ft)
Video
Video Compression H.264B; H.264; H.264H; H.265
Smart Codecs Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 2560 × 1440 (1–20fps) Sub stream: 704 × 576 (1–25 fps) 704 × 480 (1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 2560×1440 (2560×1440); 2304×1296 (2304×1296); 1080p (1920×1080); 1.3M(1280×960); 720p (1280×720)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 24kbps–4096kbps H265: 9kbps–4096kbps
BLC extension Auto(ICR)/Color/B/W
wdr extension Yes
White Balance dwdr extension
Gain Control Car; natural; street lamp; outdoors; manual; regional custom
Noise reduction Car
motion detection 3D NO
Region of Interest (RoI) OFF/ON (4 areas, rectangular)
Smart Lighting Yes (4 areas)
Image Rotation 0°/180°
Mirrors Yes
Built-in MIC Yes
alarm
Alarm Event No SD cards; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change;SMD (human)
Network
Network RJ-45 (10/100Base-T)
Wifi

IEEE802.11b/g/n 2.4~2.4835GHz

wireless range

Up to 80m (The performance varies based on actual environment)

SDKs and APIs Yes
Cyber Security video encryption; configuration encryption; digests; WSSE; Account lockout; Security logs; Generation and import of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade
NetworkProtocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;
Interoperability ONVIF® (Profile S/Profile G); CGI; P2P
User/Host 6 (Total bandwidth: 36M)
Storage Micro SD card (support max. 256GB, sold separately)
Browsers IE Chrome Firefox
management software Smart PSS; DSS; DMSS extension
Mobile Clients iOS; android
Certification
Certification CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC:47 CFR FCC Part 15, Subpart B; FCC ID:FCC PART 15C
Power
Power Supply 12VDC
power consumption Basic: 2 W (12 VDC) Max. (H.265+IR intensity): 4.1 W (12 VDC)
Operating Conditions –40°C to +60°C (–40°F to +140°F)
Operating Humidity ≤95%
Storage Conditions –30 °C to +70 °C (–22 °F to +158 °F)
Ingress Protection IP67
Casing Metal
Dimensions 166.2mm × 70.0mm × 128.6mm (6.53" × 2.76" × 5.06")
Net Weight 477.85 g (1.05 lb)
Gross Weight 696.5 g (1.50 lb)

Further details


Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
WIFI Support WIRELESS IEEE802.11b/g/n 2.4~2.4835GHz so as to connect the camera even without the presence of the cable

H265 Video Compressione

Video compression up to the latest and most efficient H.265 standard!

- Reduction of up to 50% of the space occupied for archiving

- Reduction of up to 50% of the bandwidth used

Risoluzione 4Mpx 2592x1520

This camera reaches a resolution of 4Megapixel 4MP!

Ottica fissa This camera features a 3.6mm fixed lens
Illuminatore IR fino a 30mt

Thanks to the illuminator it is equipped with, you will remain safe even at night, 24 hours a day, 7 days a week!

Range of the illuminator about 30MT

Illuminatore IR IPC-HFW1435S-W

Allows you to adapt the lens to Night/Day vision

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
MicroSD recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

Protezione IP67 contro polveri e immersioni

Protection level IP67 ( Dust / Immersion )

The camera is suitable for outdoor environments and is rain resistant.

Telecamera protetta contro acqua, ideale per ambienti esterni

12VDC_Supply 12VDC power supply included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24-month guarantee.

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
