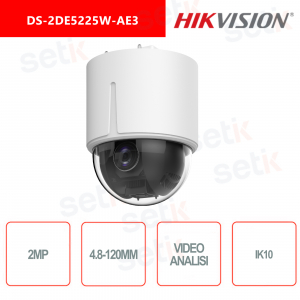

Hikvision DS-2DE5225W-AE3 IP PoE DarkFighter Network Speed Dome 2.0MP Camera, PTZ Camera (Pan / Tilt / Zoom) , 25X Optical Zoom (4.8 mm - 120 mm), 16X Digital Zoom, Auto Focus, 1 / 2.8 chip CMOS sensor ", H.265 + Compression . Day & Night (IRcut filter), Alarm input / output, Audio input / output, Video analysis : motion detection, line crossing, intrusion, face detection, Micro SD lot ( up to 256GB - NOT INCLUDED ), IK10.
FIND INSTALLER
DS-2DE5225W-AE3 | HIKVISION IP POE CAMERA 2.0 MP 25X H.265 METERS SPEED DOME VIDEO ANALYSIS
Hikvision DarkFighter Network Speed Dome Camera
|
| POE (Power Over Ethernet): The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| Resolution: This camera features 2.0MP 2Megapixel resolution in real time! 1920 × 1080 1 / 2.8 ”2Megapixel progressive scan CMOS image sensor |
| Optics: This camera features a 4.8 Varifocal lens mm ~ 120 mm (25X optical zoom, 16X digital) |
Compression H.265 +
A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
HIK-CONNECT Hik Connect allows you to control the device remotely
|
| ROI (Region Of Interest): The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
MICRO SD SLOT: Micro SD slot up to 256GB ( NOT INCLUDED ) |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
3D- DNR: |
WDR : |
VIDEO ANALYSIS: - Face detection - Line crossing - Intrusion - Motion detection |
| Diet: A 12V DC power supply is required for the operation of this camera (not included)  |
| IP66 protection: Protection from dust and temporary immersions. Suitable for outdoor environments. |
Data sheet
| DS-2DE5225W-AE3 | |
| Camera Module | |
| Image Sensor | 1 / 2.8 ′ ′ Progressive Scan CMOS |
| Min Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B / W: 0.001 Lux @ (F1.6, AGC ON) |
| Shutter Time | 1 s to 1 / 30,000 s |
| Slow shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | 25 × optional, 16 × digital |
| Max resolution | 1920 × 1080 |
| Lens | |
| Focus | Auto, semi-auto, manual |
| Focal Length | |
| Zoom Speed | Approx. 3.6 s |
| Horizontal FOV | Horizontal field of view: 57.6 ° to 2.5 ° (wide-tele), Vertical field of view: 34.4 ° to 1.4 ° (wide-tele), Diagonal field of view: 64.5 ° to 2.9 ° (wide-tele) |
| Openings | Max.1.6 |
| PTZ | |
| Movement Range (Pan) | 360 ° endless |
| Pan Speed | Pan speed: configurable from 0.1 ° to 250 ° / s; preset speed: 300 ° / s |
| Movement Range (Tilt) | -5 ° to 90 ° (auto flip) |
| Tilt Speed | Tilt speed: configurable from 0.1 ° to 150 ° / s, preset speed 200 ° / s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 scan patterns |
| Power-off Memory: | Yes |
| Park Action | Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame |
| Preset Freezing | Yes |
| 3D Positioning | Yes |
| PTZ Display status | Yes |
| Scheduled Task | Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan / Dome Reboot / Dome Adjust / Aux Output |
| Video | |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video compression | Main stream: H.265 + / H.265 / H.264 + / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile / Main profile / High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM |
| Audio Bit Rate | 64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32-192 Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Network Storage | NAS (NFS, SMB / CIFS), auto network replenishment (ANR) |
| Protocols | IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP / IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Simultaneous Live View | Up to 20 channels |
| User / Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP / HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web browser | IE11, Chrome57 +, Firefox52 +, Safari11 + |
| Image | |
| Day / Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
| Defog | Digital defog |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| SNR | > 52 dB |
| Interface | |
| Ethernet Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD / SDHC / SDXC card, up to 256GB |
| Alarm | 2 inputs, 1 output |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Reset | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Alarm Linkage | Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep learning function | |
| Face capture | Yes |
| General | |
| Operating Condition | -10 ° C to 50 ° C (14 ° F to 122 ° F)? Humidity 90% or less (non-condensing) |
| Power | 24 VAC, Max. 20 W; PoE (802.3at) |
| Material | Metal |
| Dimensions | Embedded: Ø 245mm × 239mm (Ø 9.6 "× 9.4") Indoor: Ø 183mm × 246mm (Ø 7.2 "× 9.7") |
| Weight | Approx. 3.0 kg (6.61 lb.) |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) |
| Weight | UL (UL 62368-1); CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014 / A11: 2017); BIS (IS 13252 (Part 1): 2010 / IEC 60950-1: 2005); LOA (IEC / EN 60950-1) |
| Environment | |
| Protection | IK10 (IEC 62262: 2002), TVS 6000V lightning protection, surge protection and voltage transient protection |
