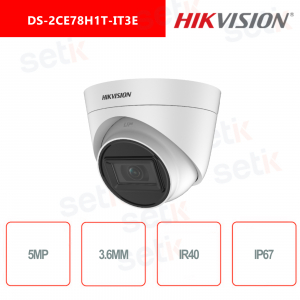

Hikvision DS-2CE78H1T-IT3E 5MP Turret outdoor camera 5Megapixel, 3.6mm fixed lens, 5MP CMOS sensor with 2560 × 1944 resolution, POC compatible . Smart IR illuminator up to 40M, OSD menu, DNR, DWDR, HLC, BLC, Day / Night (ICR), AGC, analog HD video output, Coaxial communication, Hikvision-c protocol (tvi output), IP67 protection.
HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!
FIND INSTALLER
€90.40
€139.08 -35%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-2CE78H1T-IT3E | HIKVISION 5MP TURRET CAMERA 3.6MM COMPATIBLE POC
Hikvision Turret Camera
Resolution: 5 MP 5Megapixel - 3.6mm fixed lens - CMOS sensor
Smart IR illuminator 40M - HLC - Day / Night (ICR) - AGC - BLC - DWDR - IP67 protection
Power supply NOT included - POC compatible (Coaxial power supply) - 24 month warranty
|
Power Over Coaxial "PoC" means providing direct power to the cameras from a PoC DVR , operating through a single point; eliminating the need to connect the camera to a power supply.
This technology allows the high definition video signal and the power required by the device to be routed through a single coaxial cable. This property saves time and resources in camera installation, as PoC can directly connect the device, eliminating electrical preparation processes This innovation will mean savings in time and investment in projects , making installation much easier and more profitable. |
| Resolution: This camera features a 5MP 5Megapixel resolution 5 MP CMOS image sensor  |
| Optics: This camera features a 3.6mm fixed lens |
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
|
D-WDR (Digital Wide Dynamic Range):  |
|
IP67 protection - outdoor: |
|
Diet: |
Data sheet
| DS-2CE78H1T-IT3E | |
| Room | |
| Image Sensor | 5 MP CMOS image sensor |
| Resolution | 2560 (H) × 1944 (V) |
| Min Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360 °, Tilt: 0 to 75 °, Rotation 0 to 360 ° |
| Signal system | PAL / NTSC |
| Lens | |
| Lens Type | 3.6 mm fixed focal lens |
| Focal Length & FOV | 3.6 mm, horizontal FOV: 80 °, vertical FOV: 63 °, diagonal FOV: 105 ° |
| Lens Mount | M12 |
| Image | |
| Image Parameters Switch | STD / HIGH-SAT |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | 5M @ 20fps, 4M @ 30fps, 4M @ 25fps, 1080P @ 30fps, 1080P @ 25fps |
| Day / Night Mode | Auto / Color / BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 2D DNR |
| White Balance | Auto / Manual |
| AGC | Yes |
| Interface | |
| Video Output |
1 HD analog output |
| General | |
| Material | Front Cover: Plastic Main Body: Metal |
| Dimension | 91.0 mm × Ø109.8 mm (3.58 "× Ø4.32") |
|
Weight |
Approx. 326 g (0.72 lb.) |
| Operating Condition | -40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensation) |
| Communication | HIKVICION-C |
| Lenguage | English |
| Communication | 12 VDC ± 25% / PoC.af * You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply. |
| Consumption | Max. 3 W |
| IR Range | Up to 40 m |
| Approval | |
| Protection | IP67 |
