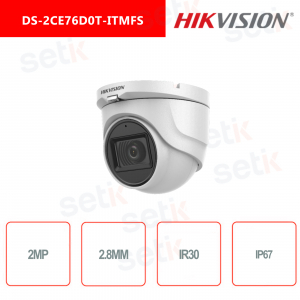

Hikvision 4in1 2MP 2.8mm Audio Fixed Turret IP67 IR30

Hikvision 4in1 2MP 2.8mm Audio Fixed Turret IP67 IR30
-35%

Hikvision DS-2CE76D0T-ITMFS (2.8mm) 2MP CMOS 4in1 (TVI / AHD / CVI / CVBS) Turret outdoor camera 2Megapixel, 2.8mm fixed lens, 2.0MP CMOS sensor, EXIR 2.0 illuminator up to 30M with EXIR 2.0 technology, Support 3D Digital noise reduction, BLC, Smart IR, WDR 120dB. HD-TVI video output, IP67.



Reference: DS-2CE76D0T-ITMFS(2.8mm)

Brand: Hikvision

EAN: 6954273693879

FIND INSTALLER

€79.30

€122.00 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%




DS-2CE76D0T-ITMFS (2.8mm) | HIKVISION 2MP TURRET CAMERA 4IN1 2.8MM IP67 IR30

Made by Hikvision
Hikvision 4IN1 (TVI / AHD / CVI / ANALOG) camera for outdoor IP67
Resolution: 2 MP 2Megapixel - 2.8mm fixed lens - CMOS sensor
30M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - SMART IR - WDR 120dB - IP67 protection
Power supply NOT included - 24 months warranty

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .

Resolution:
This camera features a resolution of 1920x1080 FULL-HD
2 megapixels high performance CMOS sensor

Optics:
This camera features 2.8mm fixed lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30M

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR Bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so in flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR:
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE76D0T-ITMFS (2.8mm)
Room
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL / NTSC
Video Frame Rate TVI: 1080P @ 30fps, 1080P @ 25fps AHD: 1080P @ 30fps, 1080P @ 25fps CVI: 1080P @ 30fps, 1080P @ 25fps CVBS: PAL / NTSC
Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shuder Time PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm
Field of View horizontal FOV: 106.4 °, vertical FOV: 57.9 °, diagonal FOV: 124.6 °
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 to 360 °, Tilt: 0 to 75 °, Rotation: 0 to 360 °
Audio Built-in mic
WDR (Wide Dynamic Range) Digital WDR
Menu
AGC Yes
D / N Mode Auto / Color / BW (Black and White)
Image Mode STD / HIGH-SAT
HLC (Highlight Compensation) Yes
White Balance Auto / Manual
AE (Auto Exposure) Mode DWDR / BLC / HLC / Global
Noise Reduction 2D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI / AHD / CVI / CVBS
General
Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), Humidity: 90% or less (non-condensing Aon)

Power Supply 12 VDC ± 25%
Power Consumption Max. 3.7 W
Protection level IP67
Material Metal
IR Range Up to 30 m
Communication HIKVISION-C
Dimension 89.47 mm × 68.2 mm (3.52 "× 2.68")
Weight Approx. 240 g (0.53 lb.)

Further details

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
