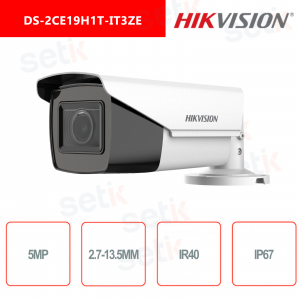

Hikvision 5MP 2.7-13.5mm Motorized Varifocal Bullet POC IP67 Camera

-35%

Hikvision DS-2CE19H1T-IT3ZE 5MP Outdoor Bullet Camera 5Megapixel, 2.7-13.5mm varifocal lens, 5MP CMOS sensor, POC compatible . Smart IR illuminator up to 40M, OSD menu, DNR, DWDR, BLC, HLC, Day / Night (ICR), AGC, analog HD video output, Coaxial communication, Hikvision-c protocol (tvi output), IP67 protection.

Reference: DS-2CE19H1T-IT3ZE(2.7-13.5mm)

Brand: Hikvision

EAN: 6931847152741

FIND INSTALLER

https://www.setik.biz/en/cameras/7743-hikvision-ds-2ce19h1t-it3ze27-135mm-hikvision-5mp-27-135mm-motorized-varifocal-bullet-poc-ip67-camera.html

€169.70

€261.08 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

Description Product Details Data Sheet Further Details Download

DS-2CE19H1T-IT3ZE (2.7-13.5mm) | HIKVISION 5MP BULLET CAMERA 2.7-13.5MM COMPATIBLE POC IP67

Outdoor Hikvision camera
Resolution: 5 MP 5Megapixel - 2.7-13.5mm varifocular lens - CMOS sensor
Smart IR 40M Illuminator - Day / Night (ICR) - AGC - BLC - DWDR - HLC - IP67 protection
Power supply NOT included - POC compatible (Coaxial power supply) - 24 month warranty

POC - POWER OVER COAX:

Power Over Coaxial "PoC" means providing direct power to the cameras from a PoC DVR , operating through a single point; eliminating the need to connect the camera to a power supply.

This technology allows the high definition video signal and the power required by the device to be routed through a single coaxial cable.

This property saves time and resources in camera installation, as PoC can directly connect the device, eliminating electrical preparation processes

This innovation will mean saving time and investment in projects , making installation much easier and more profitable.

Resolution:
This camera features a 5MP 5Megapixel resolution
5 MP CMOS image sensor

Optics:
This camera features 2.7-13.5mm varico lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 40M

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE19H1T-IT3ZE (2.7-13.5mm)
Room
Image Sensor	5 MP CMOS image sensor
Signal System	PAL / NTSC
Resolution	2560 (H) × 1944 (V)
Frame rate	TVI: 5M @ 20fps, 4M @ 30fps, 4M @ 25fps, 1080p @ 30fps, 1080p @ 25fps AHD: 5M @ 20fps, 4M @ 30fps, 4M @ 25fps CVI: 4M @ 30fps, 4M @ 25fps CVBS: PAL / NTSC
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1 / 50,000 s; NTSC: 1/30 s to 1 / 50,000 s
Lens	2.7 mm to 13.5 mm motorized varifocal lens
Field of view	horizontal FOV: 95 ° to 26 °, vertical FOV: 72 ° to 20 °, diagonal FOV: 126 ° to 33 °
Lens Mount	Φ14
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0 ° to 360 °; Tilt: 0 ° to 180 °; Rotate: 0 ° to 360 °
WDR (Wide Dynamic Range)	Digital WDR
Day / Night Mode	Auto / Color / BW (Black and White)
Image mode	STD / HIGH-SAT
AGC	Yes
White Balance	Auto / Manual
AE (Auto Exposure) Mode	DWDR, BLC, HLC, Global
Noise Reduction	2D DNR
Lenguage	English
Functions	Brightness, Smart IR, Sharpness
Interface
Video Output	1 HD analog output
General
IR Range	Up to 40 m
Operating Conditions	-40 ° C to 60 ° C (-40 ° F to140 ° F), Humidity: 90% or less (non-condensing)
Power Supply	12 VDC ± 15% / PoC.at * You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
Power Consumption	Max 8.7 W
Protection level	IP67
Material	Front cover: Metal, Main body: Plastic
IR Range	Up to 20 m
Communication	HIKVISION-C
Dimension	84.5 mm × 92 mm × 255.1 mm (3.33 "× 3.62" × 10.04 ")
Weight	Approx. 350 g (0.77 lb.)
