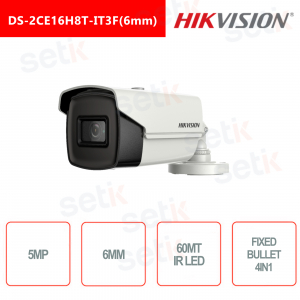

Hikvision Fixed Bullet Camera 6mm 5MP 4in1 IR 60m ICR

Hikvision Fixed Bullet Camera 6mm 5MP 4in1 IR 60m ICR
QUESTIONS ABOUT THE PRODUCT

 
Optic calculation
-35%

Ultra-Low Light Camera Hikvision DS-2CE16H8T-IT3F Fixed Bullet 4in1 (TVI / AHD / CVI / CVBS) 5MP . Resolution 2560 × 1944 . 5 Megapixel progressive scan CMOS. 6mm fixed lens, Smart IR illuminator up to 60 meters with EXIR 2.0 Technology, BLC, WDR 130dB, OSD menu, 3D DNR, Up to Coax data with HIKVISON-C. 12Vdc power supply. IP67

HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!



Reference: DS-2CE16H8T-IT3F(6mm)

Brand: Hikvision

FIND INSTALLER

€140.36

€215.94 -35%
taxes included
Tax included
 Available in 5 days


DS-2CE16H8T-IT3F | HIKVISION 5MP FIXED BULLET 4IN1 - 6MM ULTRA-LOW LIGHT CAMERA

Made by Hikvision
Ultra-Low Light Hikvision Bullet Fixed 4IN1 Camera (TVI / AHD / CVI / CVBS)
Resolution: 5 MP 5Megapixel - 6mm fixed lens - CMOS sensor - Hikvision-c
60M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - WDR 130dB - OSD - IP67 protection
Power supply NOT included - 24 months warranty
DS-2CE16H8T-IT3F

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .

Resolution:
This camera has a resolution of 2560 × 1944
High performance CMOS sensor of 5 megapixels
Optics:
This camera features a 6mm fixed lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 60M

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR Bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so in flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.

OSD Menu (Hikvision-C Protocol):
(ON SCREEN DISPLAY) allows you to set the camera parameters: AGC, Day / Night Mode, White Balance, WDR, BLC, HLC, set areas to be masked, motion detection, 3D DNR noise reduction, brightness, shadows, SMART IR and so on.

It is possible to enter the OSD menu by connecting the camera to a TVI DVR. English language
Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge
AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
WDR 130dB:
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the ability of the camera to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels. Immagine esempio funzione WDR 120db

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE16H8T-IT3F
Room
Image Sensor 5 megapixel progressive scan CMOS
Signal System PAL / NTSC
Resolution 2560 (H) × 1944 (V)
Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Frame Rate

TVI: 2 MP @ 25fps, 2 MP @ 30fps, 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps

AHD: 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps

CVI: 4 MP @ 25fps, 4 MP @ 30fps

CVBS: PAL, NTSC
Shutter Time

PAL: 1/25 s to 1 / 50,000 s

NTSC: 1/30 s to 1 / 50,000 s
Lens 6 mm
Horizontal Field of View 48 °
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, Rotate: 0 ° to 360 °
Synchronization Internal synchronization
WDR (Wide Dynamic Range) ? 130 dB
Menu
AGC Yes
Day / Night Mode Auto / Color / BW (Black and White)
White Balance Auto / Manual
BLC (Backlight Compensation) Yes
WDR Yes
3D DNR Level 1 to 9
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
Language English
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output

1 HD analog output
Budon switch

TVI / AHD / CVI / CVBS
General
Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing)
Power Supply

12 VDC ± 25%

* You are recommended to use one power adapter to supply the power for one camera
Power Consumption Max. 5.8 W
Protection level IP67
Material Metal
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 81.9 mm × 86.7 mm × 217.9 mm (3.22 "× 3.41" × 8.58 ")
Weight Approx. 570 g (1.26 lb.)

Further details

DS-2CE16H8T-IT3F dimensions

Download

Download the English brochure
