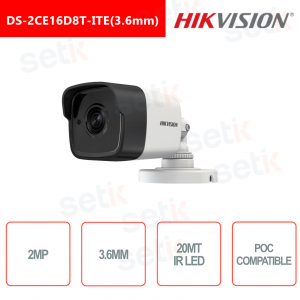

Hikvision DS-2CE16D8T-ITE 2MP HD TVI outdoor bullet camera 2Megapixel, 3.6mm fixed lens, 2MP CMOS sensor, POC compatible . Smart IR illuminator up to 20M with EXIR 2.0 Technology, OSD menu, Supports 3D-Digital Noise Reduction, BLC, HLC, EDR 120dB, Smart IR. Up to Coax data with HIKVISON-C OSD. HD-TVI video output, 12Vdc 3.6W power supply, IP67.
Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.
From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.
Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.
[short_description] =>
Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.
DS-2CE16D8T-ITE | HIKVISION 2MP BULLET CAMERA HD TVI HD 3.6MM COMPATIBLE POC IR20
Hikvision HD TVI outdoor camera Resolution: 2MP 2Megapixel - 3.6mm fixed lens - 2MP CMOS sensor 20M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - WDR 102dB - IP67 protection Power supply NOT included - POC compatible (Coaxial power supply) - 24 month warranty
POC - POWER OVER COAX:
Power Over Coaxial "PoC"means providing direct power to the cameras from a PoC DVR , operating through a single point; eliminating the need to connect the camera to a power supply.
This technology allows the high definition video signal and the power required by the device to be routed through a single coaxial cable.
This property saves time and resources in camera installation, as PoC can directly connect the device, eliminating electrical preparation processes
This innovation will mean saving time and investment in projects , making installation much easier and more profitable.
Turbo HD - Hikvision:
TURBO HD HIGH DEFINITION ANALOG With the Turbo HD line you can see and record in high definition using traditional cabling on coaxial cable. Turbo HD cameras take advantage of the existing coaxial infrastructure.
Resolution: This camera features a 2MP 2Megapixel resolution 2 MP CMOS image sensor
Optics: This camera features a fixed 3.6mm lens
IR Infrared Illuminator: IR Infrared illuminator for better night vision. Range up to 20M
This camera is also equipped with SMART IR technology. Through this technology , the light emitted by the LEDs is adapted according to the framed object.
EXIR 2.0 TECHNOLOGY
This technology remedies the classic disturbances of the traditional IR illuminator.
In detail:
1) NO IR REFLEX OR BLEEDING: By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR Bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.
2) BEST IR COVERAGE: Usually, the IR is integrated into a circular apparatus with various LEDS around the lens. This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.
3) FEWER PROBLEMS WITH SPIDERS / INSECTS: Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so in flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.
Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
IR CUT FILTER (ICR): Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations
AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
WDR 120dB (Wide Dynamic Range): It is the professional solution in cases where you have to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the ability of the camera to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
IP67 protection - outdoor: This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.
Diet: A 12V DC power supply is required for the operation of this camera (not included)
Data sheet
DS-2CE16D8T-ITE
Room
Image Sensor
2.0 megapixel progressive scan CMOS
Signal System
PAL / NTSC
Frame Rate
PAL: 1080p @ 25fps NTSC: 1080p @ 30fps
Resolution
1920 (H) × 1080 (V)
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Slow Shutter
Max. 16 times
Lens
3.6 mm
Horizontal Field of View
103.5 ° (2.8 mm), 82.6 ° (3.6 mm), 54.4 ° (6 mm)
Lens Mount
M12
Day & Night
IR cut filter
Angle Adjustment
Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, Rotate: 0 ° to 360 °
Synchronization
Internal synchronization
WDR (Wide Dynamic Range)
> 120 dB
Menu
AGC
Yes
Day / Night Mode
Auto / Color / BW (Black and White)
White Balance
ATW / MANUAL
Privacy Mask
ON / OFF, 4 programmable privacy masks
Motion Detection
4 programmable motion areas
Backlight Compensation
WDR / BLC / OFF
3D DNR (Digital Noise Reduction)
Level 1 to 10
Language
English, Chinese
Function
Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output
1 HD analog output
General
Operating Conditions
-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing)
