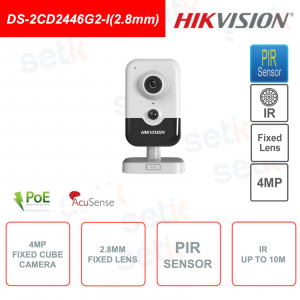

Cube PoE IP Camera - 4MP - 2.8mm fixed lens - Video Analysis - PIR - Microphone

-35%

DS-2CD2446G2-I (2.8mm) Hikvision camera - IP PoE Cube - 4MP resolution 2688x1520 - 2.8mm fixed lens - 1/3 "CMOS sensor, PIR sensor with range up to 8m - IR 10m - Codec H.265 + . Day & Night (ICR), Triple Stream, ROI, WDR 120dB, BLC, 3D DNR, AGC, Motion Detection, Video Tamper Tamper - Hik-Connect - Reset button - Microphone - Two-way audio - Video Analysis: perimeter protection and face detection - Slot for MicroSD up to 256GB (not included) - Made of plastic.

Reference: DS-2CD2446G2-I(2.8mm)

Brand: Hikvision

FIND INSTALLER

https://www.setik.biz/en/cameras/7739-hikvision-ds-2cd2446g2-i28mm-ip-camera-poe-cube-4mp-fixed-lens-28mm-video-analysis-pir-microphone.html

€246.62

€379.42 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Description Product Details Data Sheet Further Details Download

DS-2CD2446G2-I (2.8mm) | HIKVISION IP POE 4MP CAMERA - 2.8MM - PIR - MICROPHONE - IR 10M - H.265 +

Hikvision IP PoE Cube camera with 2.8mm 4MP lens
Resolution: 4MP - 2.8mm fixed lens - 1/3 "CMOS sensor - H.265 +
PIR sensor with detection up to 8m - IR up to 10m - Day / Night (ICR) - WDR 120dB - AGC -BLC - HLC - 3D DNR - Motion Detection - Triple Stream - Microphone - Two-way audio - Video Analysis with face detection and perimeter protection - Power supply NOT included - 24 month warranty

POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

Resolution:
This camera features a resolution of 4MP 4 Megapixel
1/3 ”4Megapixel progressive scan CMOS image sensor of 4MP 2688x1520

Optics:
This camera features 2.8mm fixed lens

Compression H.265 +

What is H.265 +?

A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

PIR:
PIR sensor integrated in the product with detection range up to 8m.

Lighting:

Equipped with IR illuminator up to 10m.

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR 120dB

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db while managing very strong contrast levels.
Immagine esempio funzione WDR 120db

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

MicroSD slot
Equipped with a slot to accommodate MicroSD memory cards up to 256GB.

The memory card IS NOT INCLUDED

Data sheet

DS-2CD2446G2-I (2.8mm)

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR

PIR Angle

Horizontal: 90 °, vertical: 80 °

PIR Range

Up to 8 m

Interface

Built-in Microphone

Yes

Built-in Speaker

Power: 1 W. Max. Sound pressure level: 10 cm: 91 dB.

On-board Storage

Built-in memory card slot, support microSD / SDHC / SDXC card, up to 256GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M / 100M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception

Smart Event

Scene change detection

Linkage

Upload to FTP / memory card / NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 0.5 A, max. 6.0 W, Ø 5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.0 W

Web Client Language	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Anti-flicker, heartbeat, password reset via email, pixel counter
Storage Conditions	-10 ° C to 40 ° C (14 ° F to 104 ° F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-10 ° C to 40 ° C (14 ° F to 104 ° F). Humidity 95% or less (non-condensing)
Camera Material	Plastic
Dimension room	102.9 mm × 65.2 mm × 32.6 mm (4.1 "× 2.6" × 1.3 ")
Package Dimension	150mm × 125mm × 99mm (5.9 "× 4.9" × 3.9 ")
Camera Weight	Approx. 120 g (0.3 lb.)
With Package Weight	Approx. 430 g (0.9 lb.)
Approval
EMC	FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015)
Safety	UL (UL 62368-1); CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014 / A11: 2017)
Environment	CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)
