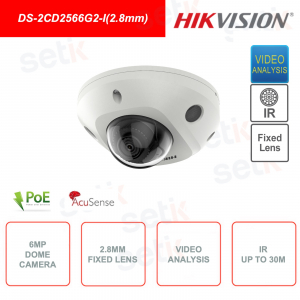

6MP IP PoE Dome Camera - 2.8mm Lens - Series - 30m IR - Video Analysis - Microphone

6MP IP PoE Dome Camera - 2.8mm Lens - Series - 30m IR - Video Analysis - Microphone
-35%

Hikvision Camera - DS-2CD2566G2-I (2.8mm) IP PoE Dome - Resolution 6MP - 2.8mm fixed lens - 1 / 1.8 "CMOS sensor, H.265 + . Day & Night (ICR), 30M IR illuminator, Triple Stream, ROI, WDR 120dB, BLC, 3D DNR, AGC, Motion Detection - Slot for MicroSD up to 256GB (not included) - Hik-Connect - Reset Key - IP67 outdoor protection and IK08 vandal resistant - In aluminum and plastic - Integrated microphone - VIDEO ANALYSIS : Perimeter protection and face detection - For video surveillance systems.

Reference: DS-2CD2566G2-I(2.8mm)

Brand: Hikvision

EAN: 6931847136215

FIND INSTALLER

€335.44

€516.06 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
discover the available quantity



DS-2CD2566G2-I (2.8mm) | HIKVISION IP POE DOME CAMERA - 6MP - 2.8MM - OUTDOOR - H.265 + - IR 30M - VIDEO ANALYSIS

Made by Hikvision

6MP Hikvision IP PoE dome camera with 2.8mm lens - DS-2CD2566G2-I (2.8mm)
Resolution: 6MP - 2.8mm fixed lens - 1 / 1.8 "CMOS sensor - H.265 + Smart Codec - 30m IR Illuminator - Day / Night (ICR) - WDR 120dB - AGC -BLC - 3D DNR - Motion Detection - Triple Stream - MicroSD slot up to 256GB (not included) - RJ-45 10 / 100M Interface - Video Analysis with perimeter protection and face detection - IP67 and IK08 protection - Power supply NOT included - 24 month warranty
POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

Resolution:
This camera features a resolution of 6MP
Image sensor 1 / 1.8 ”2Megapixel progressive scan 6MP CMOS

Resolution: 3200 × 1800

Optics:
This camera features 2.8mm fixed lens
Compression H.265 +


What is H.265 +?

A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30M

IR wavelength 850nm

HIK-CONNECT

Hik Connect allows you to control the device remotely

VIDEO ANALYSIS (DEEP LEARNING)

This Hikvision product features smart features:

  • PERIMETER PROTECTION:
    - Line crossing
    - Intrusion
    - Entrance to the area
    - Exit from the area
  • FACE DETECTION
ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR120dB

WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db while managing very strong contrast levels.
Immagine esempio funzione WDR 120db

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Microphone:

This product features a microphone equipped on board!

Diet:
A 12V DC power supply is required for the operation of this camera (not included)
IP67 protection:
Protection from dust and temporary immersions. Suitable for outdoor environments.
Also equipped with IK08 protection against vandalism.

Network Storage

NAS (NFS, SMB / CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Day / Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Ethernet Interface

1 RJ45 10M / 100M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD card, up to 256GB

Built-in Microphone

Yes

Reset Key

Yes

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Linkage

Upload to FTP / NAS / memory card, notify surveillance center, trigger recording, trigger capture, send email

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W

Camera Material

Base: aluminum, cover: plastic

Dimension room

Ø 110 mm × 57.4 mm (Ø 4.3 "× 2.3")

Package Dimension

134 mm × 134 mm × 108 mm (5.3 "× 5.3" × 4.3 ")

Camera Weight

Approx. 375 g (0.8 lb.)

With Package Weight

Approx. 610 g (1.3 lb.)

Storage Conditions

-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish , Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

EMC

FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014) RCM (AS / NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)

Safety

UL (UL 62368-1) CB (IEC 62368-1: 2014 + A11) CE-LVD (EN 62368-1: 2014 / A11: 2017) LOA (IEC / EN 60950-1)

Environment

CE-RoHS (2011/65 / EU) WEEE (2012/19 / EU) Reach (Regulation (EC) No 1907/2006)

Electrical Safety Protection

IP67 (IEC 60529-2013) IK8 (IEC 62262: 2002)

Further details

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
