PoE IP Bullet Camera - DarkFighter - Acusense - 4MP - 6mm fixed lens - IR 80m - Video Analysis

PoE IP Bullet Camera - DarkFighter - Acusense - 4MP - 6mm fixed lens - IR 80m - Video Analysis
-35%

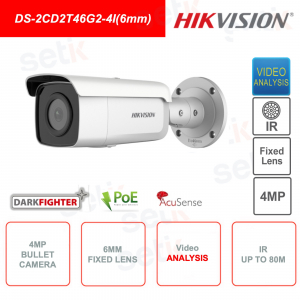

DS-2CD2T46G2-4I (6mm) Hikvision - IP PoE ONVIF outdoor camera Bullet DarkFighter Acusense Series - 4MP Resolution, 6mm Fixed Lens, 1/3 "5MP CMOS sensor - H.265 + - Triple Stream, Day & Night (ICR), 80M IR illuminator, Micro SD slot ( UP TO256GB - NOT INCLUDED ) Triple Stream, ROI, WDR 120dB, BLC, HLC, 3D DNR, AGC, Video Analysis - Motion Detection, reset key, RJ-45 (100M), IP67 outdoor protection , metal.

Reference: DS-2CD2T46G2-4I(6mm)

Brand: Hikvision

EAN: 6941264083726

FIND INSTALLER

€289.45

€445.30 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
discover the available quantity



DS-2CD2T46G2-4I (6mm) | HIKVISION IP POE 4.0 MP 6MM OUTDOOR CAMERA H.265 + IR 80 METERS BULLET DARKFIGHTER ACUSENSE

Made by Hikvision
Hikvision IP PoE Outdoor Bullet Camera with 6mm lens and DarkFighter technology - AcuSense Series - DS-2CD2T46G2-4I (6mm)
Resolution: 4.0 MP 4MP 4Megapixel - 6mm Fixed Lens - 1/3 "CMOS Sensor - H.265 + Codec - Triple Video Stream
80M IR Illuminator - Day / Night (ICR) - WDR 120dB - AGC - BLC - HLC - 3D DNR - Motion Detection - Video Analysis: Face Detection - Perimeter Protection - Motion Detection - Scenario change - Power supply NOT included - 256GB MicroSD slot (not included) - IP67 protection for outdoor use - 24 month warranty
POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.
Resolution:
This camera features 4.0MP 4MP resolution in real time! (2688 × 1520)
1/3 ”4Megapixel progressive scan CMOS image sensor
Optics:
This camera features a 6mm Fixed lens
Compression H.265 +


What is H.265 +?

A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 80 meters

IR wavelength 850nm

ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

Video Analysis:

Intelligent video analytics features with DeepLearning technology including:

- Face detection
- Perimeter protection
- Change of scenery
- Motion Detection
- Video tampering alarm

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

256GB Micro SD slot ( NOT INCLUDED )

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db while managing very strong contrast levels.
Immagine esempio funzione WDR 120db

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

MicroSD cards

Slot for inserting MicroSD cards up to 256GB ( not included )

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP / HTTPS, TLS 1.1 / 1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

MicroSD / SDHC / SDXC card (256 GB) local storage, and NAS (NFS, SMB / CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


SNR

≥ 52 dB

Day / Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

On-Board Storage

Built-in micro SD slot, up to 256GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10M / 100M self-adaptive Ethernet port

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Scene change detection

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

Storage Conditions

-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.88 A, max. 10.5 W PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W

Power Interface

Ø 5.5 mm coaxial power plug

Material

Metal except for sunshield

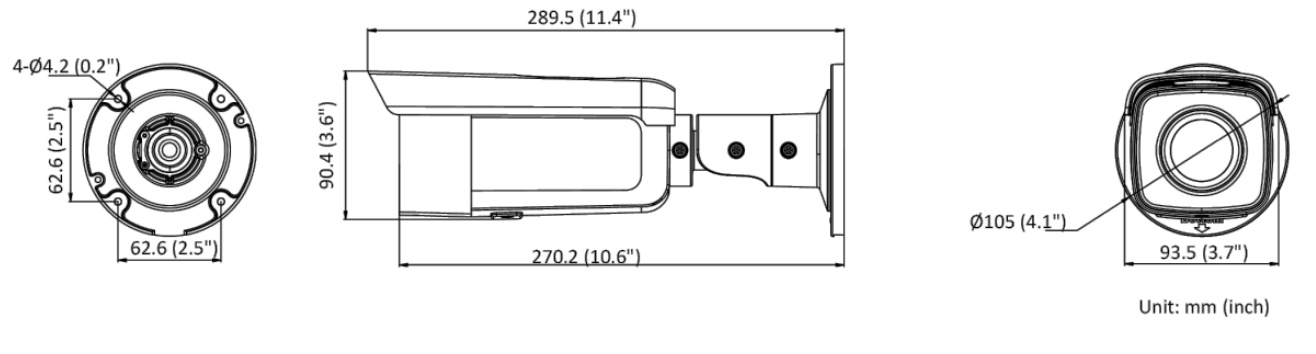

Dimension

Ø 105 mm × 289.5 mm (Ø 4.1 "× 11.4")

Package Dimension

386 mm × 156 mm × 155 mm (15.2 "× 6.1" × 6.1 ")

Weight

Approx. 1075 g (2.4 lb.)

With Package Weight

Approx. 1584 g (3.5 lb.)

Linkage Method

Upload to NAS / memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email

Language

33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Software Reset

Yes

Firmware Version

V5.5.112

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC / EN 60950-1)

Environment

CE-ROHS (2011/65 / EU); WEEE (2012/19 / EU); REACH (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)

Further details

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
