Hikvision DS-2CD2T86G2-4I (6mm) IP PoE Camera AcuSense Series - Outdoor Fixed Bullet 8MP 4K ULTRA-HD , 6mm fixed lens, 1 / 1.8 "CMOS sensor Progressive Scan DarkFighter, H.265 + , 80M IR illuminator, Triple Stream , Video Analysis with Deep Learning , Face Capture and Perimeter Protection - WDR 120dB , ROI, BLC, HLC, 3D DNR, AGC, 256GB MicroSD Slot (NOT INCLUDED) , Motion Detection - Hik-Connect Access - Reset Button Key - IP67 Protection , metal.
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
DS-2CD2T86G2-4I (6mm) | HIKVISION ACUSENSE IP POE 8MP CAMERA - 6MM OPTICAL - OUTDOOR IP67 - H.265 + - IR 80M BULLET
![Made by Setik width = Made by Hikvision](/storage/images/Articoli/hikvision_logo_grey.jpg)

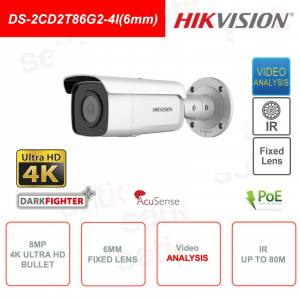

Hikvision IP PoE Bullet 8MP Camera 6mm Lens - DS-2CD2T86G2-4I (6mm)
Resolution: 8MP 4K ULTRA-HD 8Megapixel 3840x2160p - AcuSense Series - 6mm fixed lens - 1 / 1.8 "Progressive Scan DarkFighter CMOS sensor - Triple Stream - H.265 + SMart Codec
80m IR Illuminator - Day / Night (ICR) - ROI - AGC - BLC - HLC - 3DNR - WDR 120dB - Video Analysis - Face Capture and Perimeter Protection
Power supply NOT included - 256GB MicroSD slot (not included) - Metal - IP67 protection ideal for outdoor environments - 24 month warranty
![](https://cdn.setik.biz/storage/images/Articoli/7731_2008_55_002.jpg)
POE (Power Over Ethernet): The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
Resolution: DarkFighter technology! |
Optics: |
Compression H.265 + ![]()
A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
Triple Stream: Main stream: H.265 / H.264 / H.264 + / H.265 + |
IR Infrared Illuminator: |
Smart Feature-set - Video Analysis: |
WDR 120dB (Wide Dynamic Range): WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db while managing very strong contrast levels. ![]() |
ROI (Region Of Interest): The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image. ![]() |
Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. ![]() |
BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
WDR 120dB: WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db while managing very strong contrast levels. ![]() |
3D- DNR: |
MicroSD slot: Present microSD / SDHC / SDXC slot up to 256GB - NOT INCLUDED in the package |
Diet: A 12V DC power supply is required for the operation of this camera (not included) ![]() |
Data sheet
Room |
|
Image Sensor |
1 / 1.8 "Progressive Scan CMOS |
Min. Illumination |
Color: 0.003 Lux @ (F1.6, AGC ON), B / W: 0 Lux with IR |
Shutter Speed |
1/3 s to 1 / 100,000 s |
Slow Shutter |
Yes |
Wide Dynamic Range |
120 dB |
P / N |
P / N |
Day & Night |
IR cut filter |
Angle Adjustment |
Pan: 0 ° to 360 °, tilt: 0 ° to 90 °, rotate: 0 ° to 360 ° |
Lens |
|
Lens Type |
Fixed focal lens, 6 mm |
Focal Length & FOV |
horizontal FOV 51 °, vertical FOV 28 °, diagonal FOV 60 ° |
Iris Type |
Fixed |
Openings |
F1.6 |
Lens Mount |
M12 |
Illuminator |
|
Supplement Light Type |
IR |
Smart Supplement Light |
Yes |
IR Range |
Up to 80 m |
IR Wavelength |
850 nm |
Video |
|
Max. Resolution |
3840 × 2160 |
Main Stream |
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080 , 1280 × 720) |
Sub-Stream |
50Hz: 25fps (640 × 480, 640 × 360) 60Hz: 30fps (640 × 480, 640 × 360) |
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) * Third stream is supported under certain settings. |
Video Compression |
Main stream: H.265 / H.264 / H.264 + / H.265 + Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 * Third stream is supported under certain settings. |
Video Bit Rate |
32 Kbps to 16 Mbps |
H.264 Type |
Baseline Profile / Main Profile / High Profile |
H.265 Type |
Main Profile |
H.264 + |
Main stream supports |
H.265 + |
Main stream supports |
Bit Rate Control |
CBR / VBR |
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
Network |
|
Simultaneous Live View |
Up to 6 channels |
API |
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
Protocols |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL / TLS, PPPoE, SNMP , ARP |
User / Host |
Up to 32 users. 3 user levels: administrator, operator and user |
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP / HTTPS, TLS 1.1 / 1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage |
MicroSD / SDHC / SDXC card (256 GB) local storage, and NAS (NFS, SMB / CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client |
iVMS-4200, Hik-Connect, Hik-Central |
Web Browser |
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Image |
|
Image Parameters Switch |
Yes |
SNR |
≥ 52 dB |
Target Cropping |
Yes |
Day / Night Switch |
Day, Night, Auto, Schedule |
Image Enhancement |
BLC, HLC, 3D DNR |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface |
|
On-Board Storage |
Built-in micro SD slot, up to 256GB |
Reset Key |
Yes |
Ethernet Interface |
1 RJ45 10M / 100M self-adaptive Ethernet port |
Event |
|
Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
Smart Event |
Scene change detection |
Deep Learning Function |
|
Face Capture |
Yes |
Perimeter Protection |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification |
General |
|
Linkage Method |
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture |
Firmware Version |
V5.5.112 |
Software Reset |
Yes |
Power Interface |
Ø 5.5 mm coaxial power plug |
Language |
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Storage Conditions |
-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
Power Consumption and Current |
12 VDC, 0.88 A, max. 10.5 W PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W |
Material |
Metal |
Dimension |
Ø 105 mm × 290 mm (Ø 4.1 "× 11.4") |
Package Dimension |
386 mm × 156 mm × 155 mm (15.2 "× 6.1" × 6.1 ") |
Weight |
Approx. 1270 g (2.8 lb.) |
With Package Weight |
Approx. 1510 g (3.3 lb.) |
Approval |
|
EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
Safety |
UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013) |
Environment |
CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
Protection |
IP67 (IEC 60529-2013) |
Further details
![](https://cdn.setik.biz/storage/images/Articoli/7731_2008_55_001.jpg)
